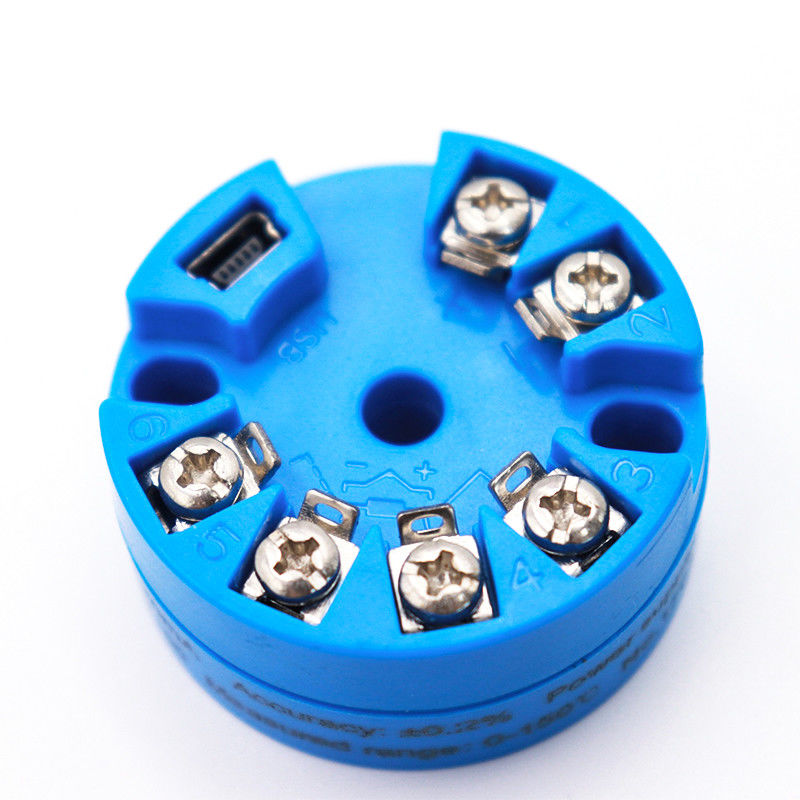

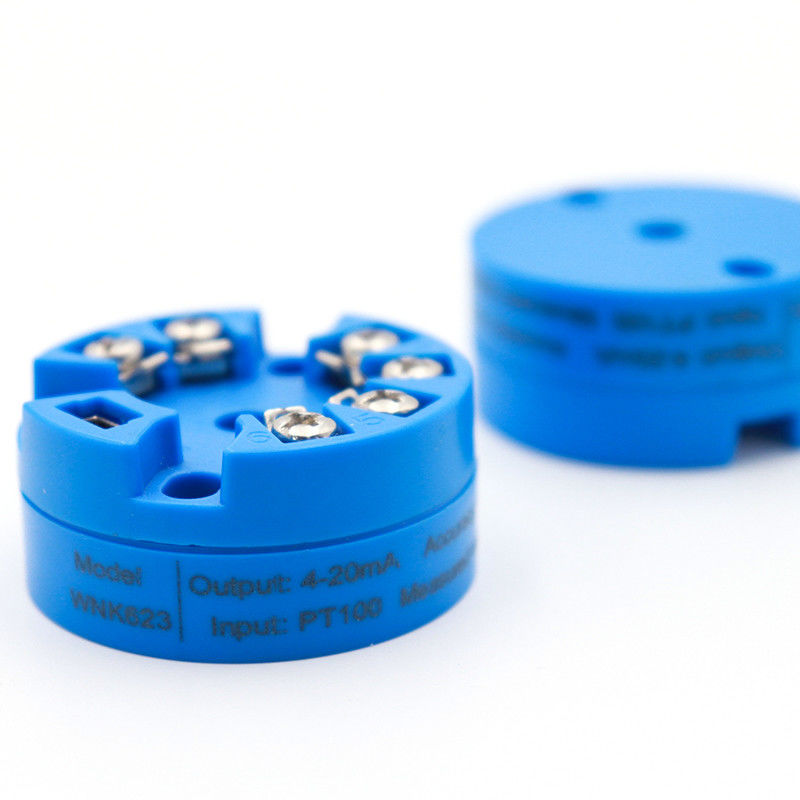

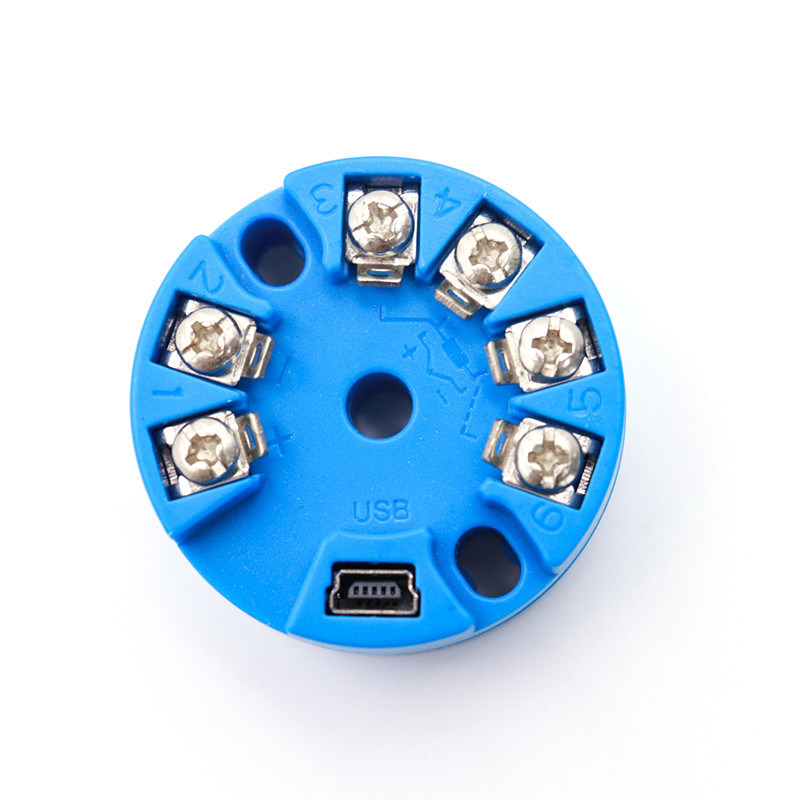

Thermocouple Rtd Head Temperature Transmitter WNK 4-20mA
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK65 |
Payment & Shipping Terms:
| Price: | $12.00 - $50.00/Sets |
|---|---|
| Packaging Details: | standard export packing |
| Supply Ability: | 200 Set/Sets per Week |
|
Detail Information |
|||
| Product Name: | Temperature Transmitter 0.2%/year Stability With 4-20mA/Hart Output | Output Signals: | 4~20mA, Hart |
|---|---|---|---|
| Housing Material: | Plastic | Power Supply: | 9~32 V |
| Measured Media: | Liquid, Gas And Steam | Input: | Thermocouple, RTD, MV, Resistive Sensor |
| Temperature Range: | -40℃~+85℃ | Dimension: | 44mm(diameter) |
| Accuracy: | 0.5%FS | Type: | Temperature Transmitter |
| Port: | Shanghai | ||
| High Light: | Thermocouple Input Temperature Transmitter,Rtd Head Temperature Transmitter,4-20mA Temperature Transmitter |
||
Product Description
Universal Input Isolation Smart Temperature Transmitter
WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and -100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.
Main Parameteres
- Supply power:DC9V~32V;
- Output signal 4-20mA with HART protocol digital communication ( two-wire )
- Communicator or PC configuration and debugging software can do remote management;
- Internal code end compensation accuracy: ±0.5ºC
- Damp: 0-64 seconds adjustable;
- Data refreshing frequency: 4times/second;
- Stability: ±0.2%/year;
- Woring ambient temperature range: -40ºC~+85ºC;
- Dimensions: φ44mm;
- Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
- Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ
Wiring ports diagram
Sensor connection ports
Main sensors accuracy parameters:
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery?
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
