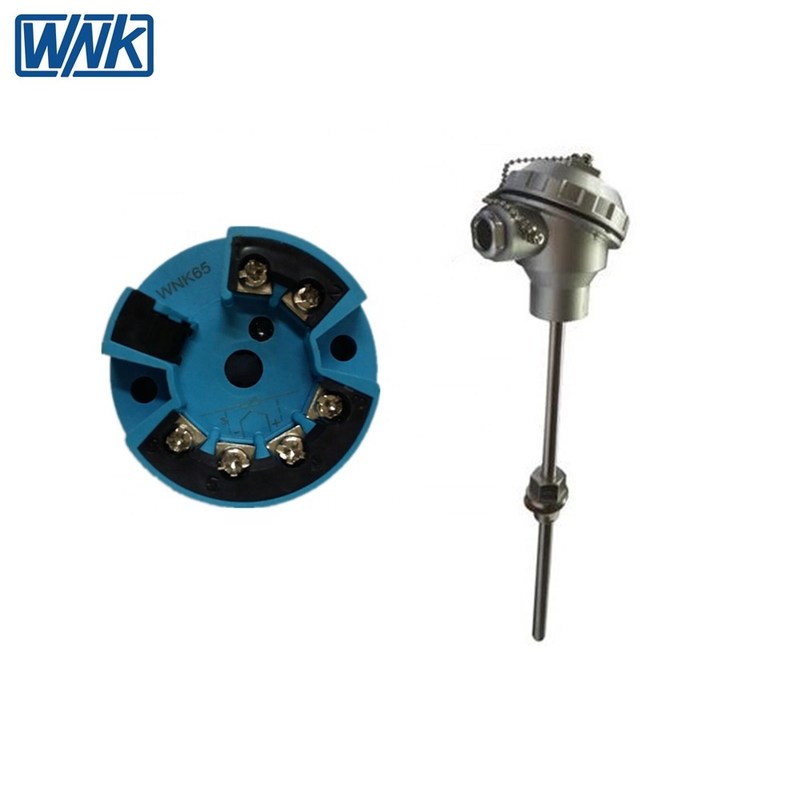

• PT100 4-20mA Head Mounted Temperature Transmitter With Hart
PT100 4-20mA Head Mounted Temperature Transmitter With Hart

PT100 4-20mA Head Mounted Temperature Transmitter With Hart

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK65

Payment & Shipping Terms:

Price: $12.00 - $50.00/Sets
Packaging Details: standard export packing
Supply Ability: 200 Set/Sets per Week
Get Best Price Contact Now

Detail Information

Product Name: Temperature Transmitter 0.2%/year Stability With 4-20mA/Hart Output Output Signals: 4~20mA, Hart
Housing Material: Plastic Power Supply: 9~32 V
Measured Media: Liquid, Gas And Steam Input: Thermocouple, RTD, MV, Resistive Sensor
Temperature Range: -40℃~+85℃ Dimension: 44mm(diameter)
Accuracy: 0.5%FS Type: Temperature Transmitter
Port: Shanghai
High Light:

Plastic Housing Temperature Transmitter


Temperature Transmitter With Hart


Isolation Temperature Transmitter

Product Description

PT100 4-20m Head Mounted Temperature Transmitter With Hart
Product Description

WNK 4-20m Head Mounted Temperature Transmitter

Universal Input Isolation Smart Temperature Transmitter
WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and -100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.

Main Parameteres

  1. Supply power:DC9V~32V;
  2. Output signal 4-20mA with HART protocol digital communication ( two-wire )
  3. Communicator or PC configuration and debugging software can do remote management;
  4. Internal code end compensation accuracy: ±0.5ºC
  5. Damp: 0-64 seconds adjustable;
  6. Data refreshing frequency: 4times/second;
  7. Stability: ±0.2%/year;
  8. Woring ambient temperature range: -40ºC~+85ºC;
  9. Dimensions: φ44mm;
  10. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
  11. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ

Wiring ports diagram

WNK65 Wiring .png


Sensor connection ports

WNK65 Senor.png



Main sensors accuracy parameters:
