Head Mount Universal Input Analog Temperature Transmitter 4-20ma

Head Mount Universal Input Analog Temperature Transmitter 4-20ma

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK65

Payment & Shipping Terms:

Price: $12.00 - $50.00/Sets
Packaging Details: standard export packing
Supply Ability: 200 Set/Sets per Week
Get Best Price Contact Now

Detail Information

Product Name: Temperature Transmitter 0.2%/year Stability With 4-20mA/Hart Output Output Signals: 4~20mA, Hart
Housing Material: Plastic Power Supply: 9~32 V
Measured Media: Liquid, Gas And Steam Input: Thermocouple, RTD, MV, Resistive Sensor
Temperature Range: -40℃~+85℃ Dimension: 44mm(diameter)
Accuracy: 0.5%FS Type: Temperature Transmitter
Port: Shanghai

Product Description


PT100 Smart Temperature Transmitter Module With 4-20mA/Hart

Universal Input Isolation Smart Temperature Transmitter

WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and-100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.
1. Supply power:DC9V~32V;
2. Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA analog output;
3. Communicator or PC configuration and debugging software can do remote management;
4. Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature value and forbide code end compensation;
5. Internal code end compensation accuracy: ±0.5ºC
6. Damp: 0-64 seconds adjustable;
7. Data refreshing frequency: 4times/second;
8. Stability: ±0.2%/year;
9. Woring ambient temperature range: -40ºC~+85ºC;
10. Dimensions: φ44mm;
11. Mounting hole distance: 33mm;
12. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
13. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ
Sensor Type
Sensor Range
MInium Range
Digit Accuracy
D/A Accuracy
2,3.4 wire thermal resistor
CU50
-50ºC~150ºC
10ºC
±0.15ºC
0.01%
CU100
-50ºC~150ºC
10ºC
±0.15ºC
0.01%
PT100
-200ºC~850ºC
10ºC
±0.15ºC
0.01%
PT1000
-200ºC~850ºC
10ºC
±0.1ºC
0.01%
2,3.4 wire resistor
400Ω
0~400Ω
10Ω
0.1Ω
0.01%
4000Ω
0~4000Ω
10Ω
0.1Ω
0.01%
Voltage
100mV
-10~100mV
10mV
0.01mV
0.01%
1000mV
-100~1000mV
10mV
0.01mV
0.01%
Thermocouple
B Type
150ºC~1280ºC
25ºC
±1.0ºC
0.01%
E Type
-200ºC~1000ºC
25ºC
±0.4ºC
0.01%
J Type
-210ºC~1200ºC
25ºC
±0.4ºC
0.01%
K Type
-200ºC~1372ºC
25ºC
±0.4ºC
0.01%
N Type
-200ºC~1300ºC
25ºC
±0.4ºC
0.01%
R Type
0ºC~1768ºC
25ºC
±0.8ºC
0.01%
S Type
0ºC~1768ºC
25ºC
±0.8ºC
0.01%
T Type
-200ºC~400ºC
25ºC
±0.4ºC
0.01%
Wiring ports diagram
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 0

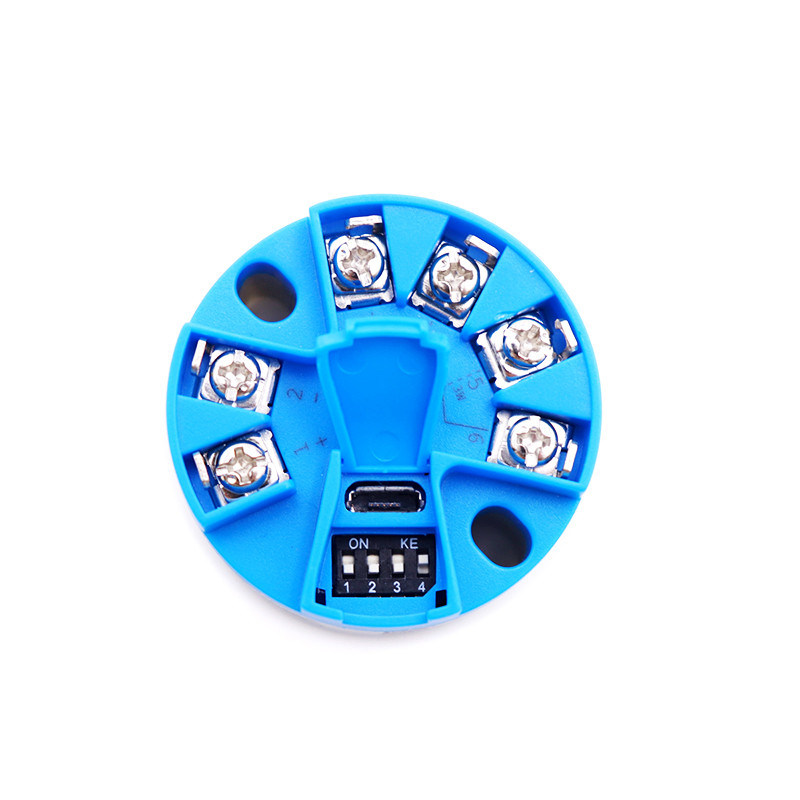

Sensor Connection Ports
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 1

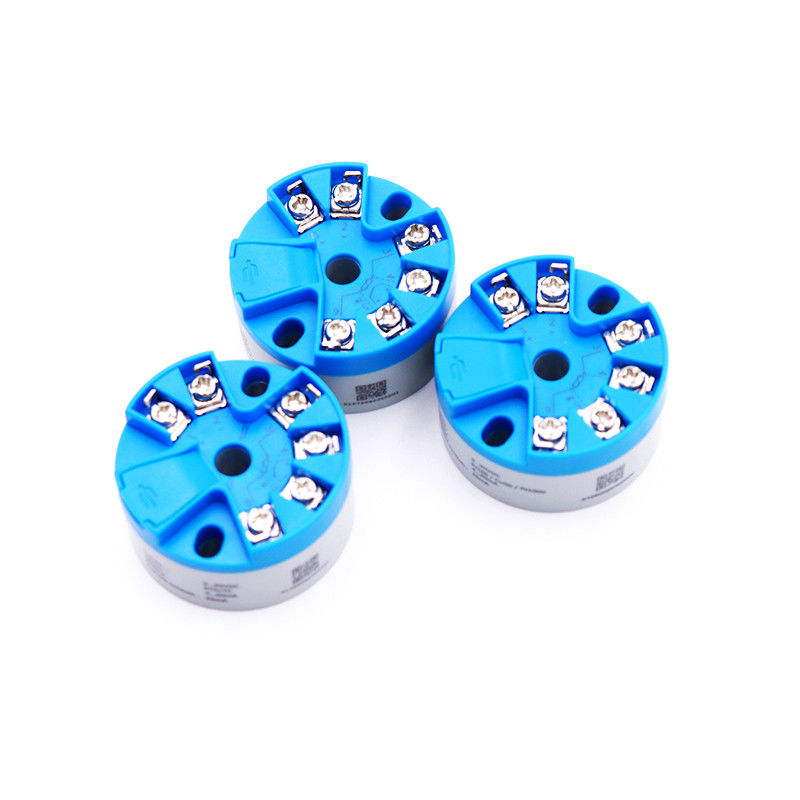

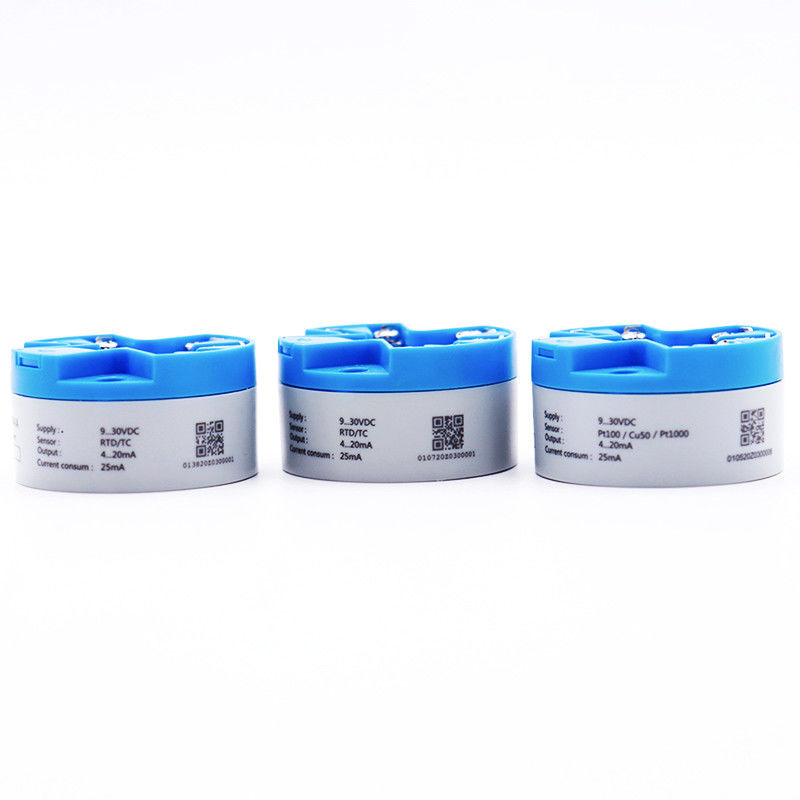

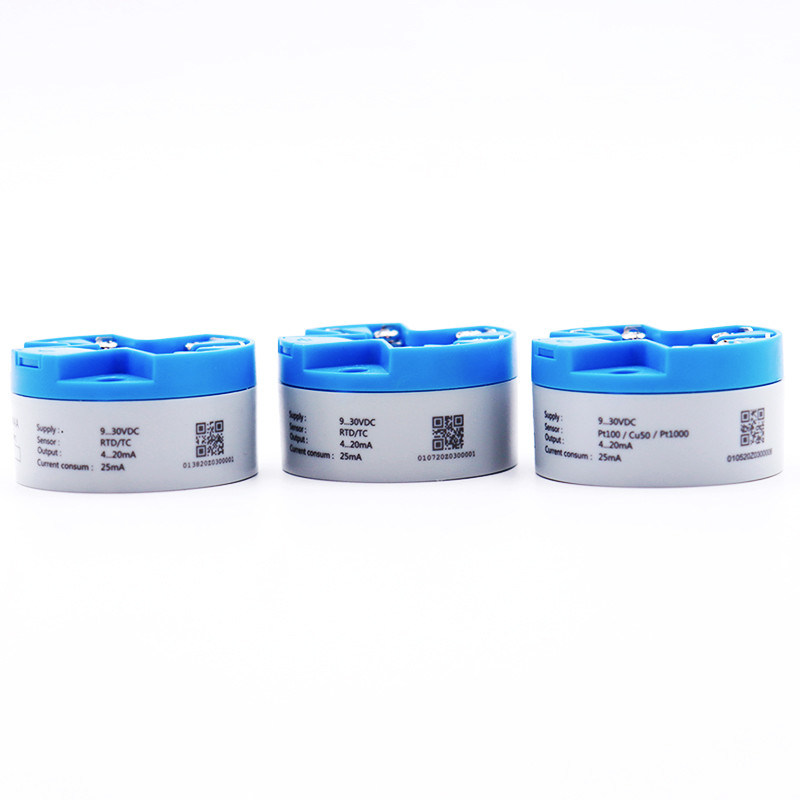

Product Show
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 2
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 3
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 4
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 5
Our Company
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 6
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 7
Packing&Shipping
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 8
Head Mount Universal Input Analog Temperature Transmitter 4-20ma 9
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
