WNK65 Smart Temperature Transmitter Plastic Housing With 4-20mA Output
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK65 |
Payment & Shipping Terms:
| Price: | $12.00 - $50.00/Sets |
|---|---|
| Packaging Details: | standard export packing |
| Supply Ability: | 200 Set/Sets per Week |
|
Detail Information |
|||
| Product Name: | Temperature Transmitter 0.2%/year Stability With 4-20mA/Hart Output | Output Signals: | 4~20mA, Hart |
|---|---|---|---|
| Housing Material: | Plastic | Power Supply: | 9~32 V |
| Measured Media: | Liquid, Gas And Steam | Input: | Thermocouple, RTD, MV, Resistive Sensor |
| Temperature Range: | -40℃~+85℃ | Dimension: | 44mm(diameter) |
| Accuracy: | 0.5%FS | Type: | Temperature Transmitter |
| Port: | Shanghai | ||
| High Light: | WNK65 Smart Temperature Transmitter,Plastic Housing Smart Temperature Transmitter,4 20mA smart temperature sensor |
||
Product Description
Product Description
Smart Temperature Transmitter 0.2%/year Stability With 4-20mA/Hart Output
Universal Input Isolation Smart Temperature Transmitter
WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and-100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.
1. Supply power:DC9V~32V;
2. Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA analog output;
3. Communicator or PC configuration and debugging software can do remote management;
4. Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature value and forbide code end compensation;
5. Internal code end compensation accuracy: ±0.5ºC
6. Damp: 0-64 seconds adjustable;
7. Data refreshing frequency: 4times/second;
8. Stability: ±0.2%/year;
9. Woring ambient temperature range: -40ºC~+85ºC;
10. Dimensions: φ44mm;
11. Mounting hole distance: 33mm;
12. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
13. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ
2. Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA analog output;
3. Communicator or PC configuration and debugging software can do remote management;
4. Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature value and forbide code end compensation;
5. Internal code end compensation accuracy: ±0.5ºC
6. Damp: 0-64 seconds adjustable;
7. Data refreshing frequency: 4times/second;
8. Stability: ±0.2%/year;
9. Woring ambient temperature range: -40ºC~+85ºC;
10. Dimensions: φ44mm;
11. Mounting hole distance: 33mm;
12. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
13. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ
|
Sensor Type
|
Sensor Range
|
MInium Range
|
Digit Accuracy
|
D/A Accuracy
|
||||
|
2,3.4 wire thermal resistor
|
|
|
|
|
||||
|
CU50
|
-50ºC~150ºC
|
10ºC
|
±0.15ºC
|
0.01%
|
||||
|
CU100
|
-50ºC~150ºC
|
10ºC
|
±0.15ºC
|
0.01%
|
||||
|
PT100
|
-200ºC~850ºC
|
10ºC
|
±0.15ºC
|
0.01%
|
||||
|
PT1000
|
-200ºC~850ºC
|
10ºC
|
±0.1ºC
|
0.01%
|
||||
|
2,3.4 wire resistor
|
|
|
|
|
||||
|
400Ω
|
0~400Ω
|
10Ω
|
0.1Ω
|
0.01%
|
||||
|
4000Ω
|
0~4000Ω
|
10Ω
|
0.1Ω
|
0.01%
|
||||
|
Voltage
|
|
|
|
|
||||
|
100mV
|
-10~100mV
|
10mV
|
0.01mV
|
0.01%
|
||||
|
1000mV
|
-100~1000mV
|
10mV
|
0.01mV
|
0.01%
|
||||
|
Thermocouple
|
|
|
|
|
||||
|
B Type
|
150ºC~1280ºC
|
25ºC
|
±1.0ºC
|
0.01%
|
||||
|
E Type
|
-200ºC~1000ºC
|
25ºC
|
±0.4ºC
|
0.01%
|
||||
|
J Type
|
-210ºC~1200ºC
|
25ºC
|
±0.4ºC
|
0.01%
|
||||
|
K Type
|
-200ºC~1372ºC
|
25ºC
|
±0.4ºC
|
0.01%
|
||||
|
N Type
|
-200ºC~1300ºC
|
25ºC
|
±0.4ºC
|
0.01%
|
||||
|
R Type
|
0ºC~1768ºC
|
25ºC
|
±0.8ºC
|
0.01%
|
||||
|
S Type
|
0ºC~1768ºC
|
25ºC
|
±0.8ºC
|
0.01%
|
||||
|
T Type
|
-200ºC~400ºC
|
25ºC
|
±0.4ºC
|
0.01%
|
||||
Wiring ports diagram
Sensor Connection Ports

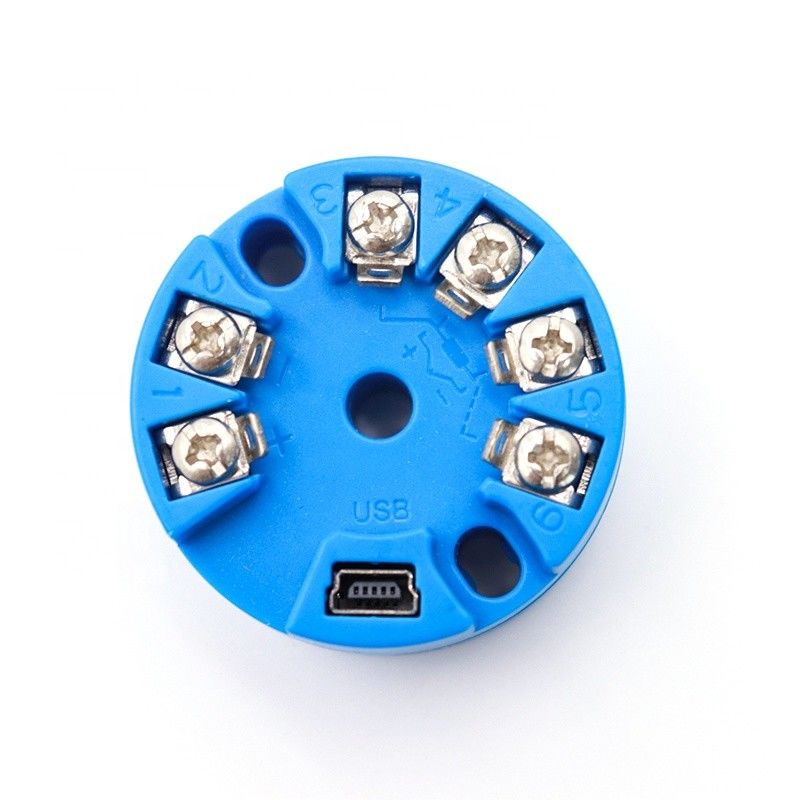

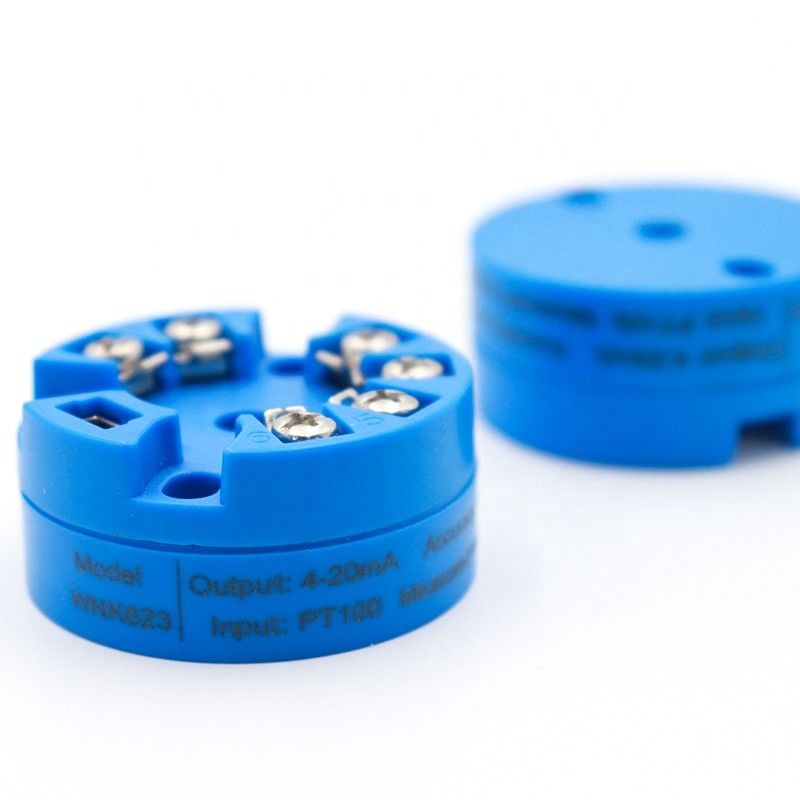

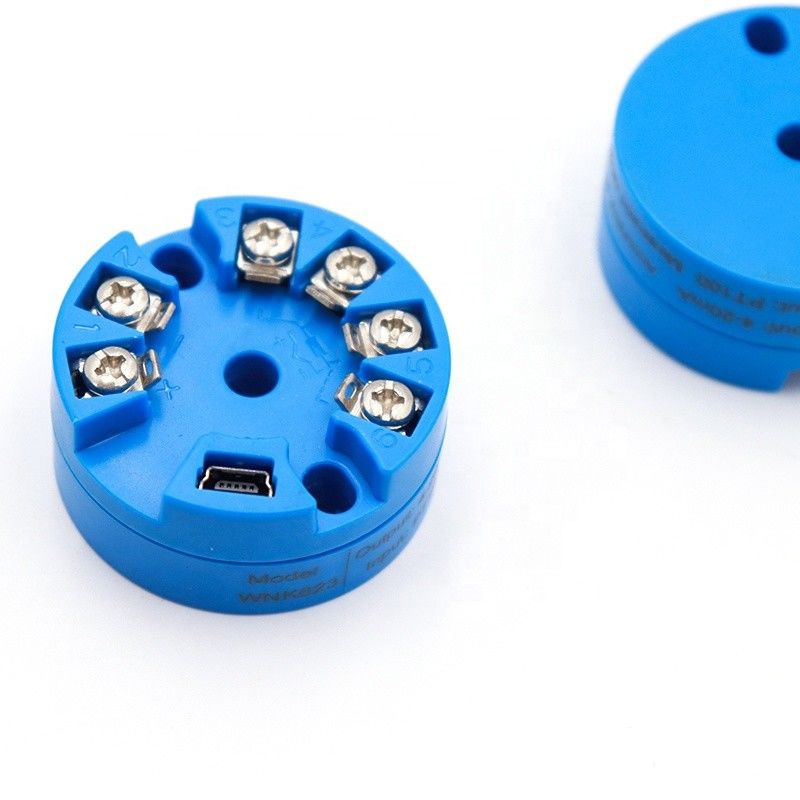

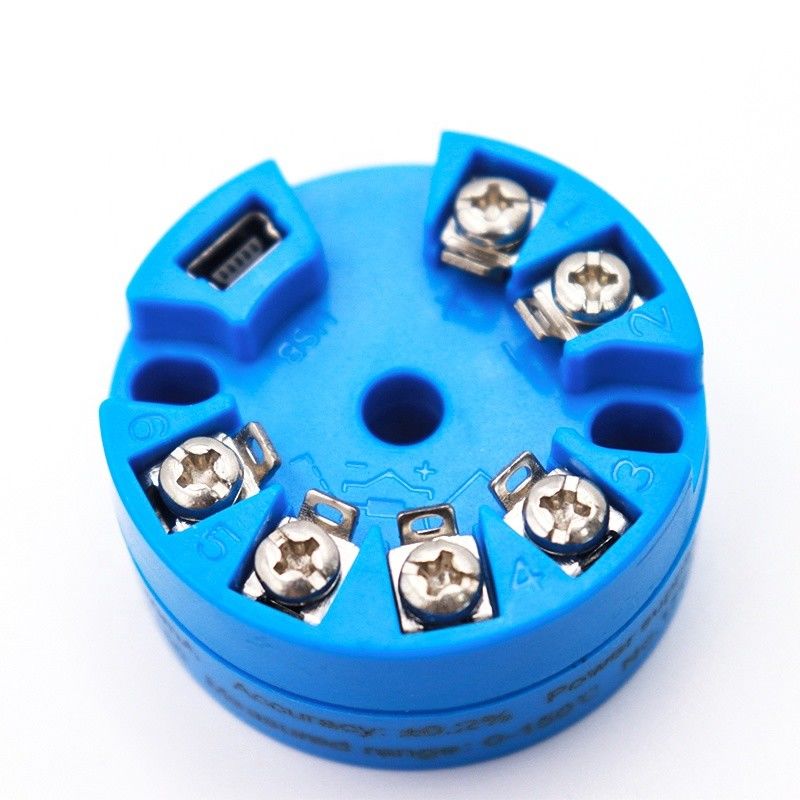

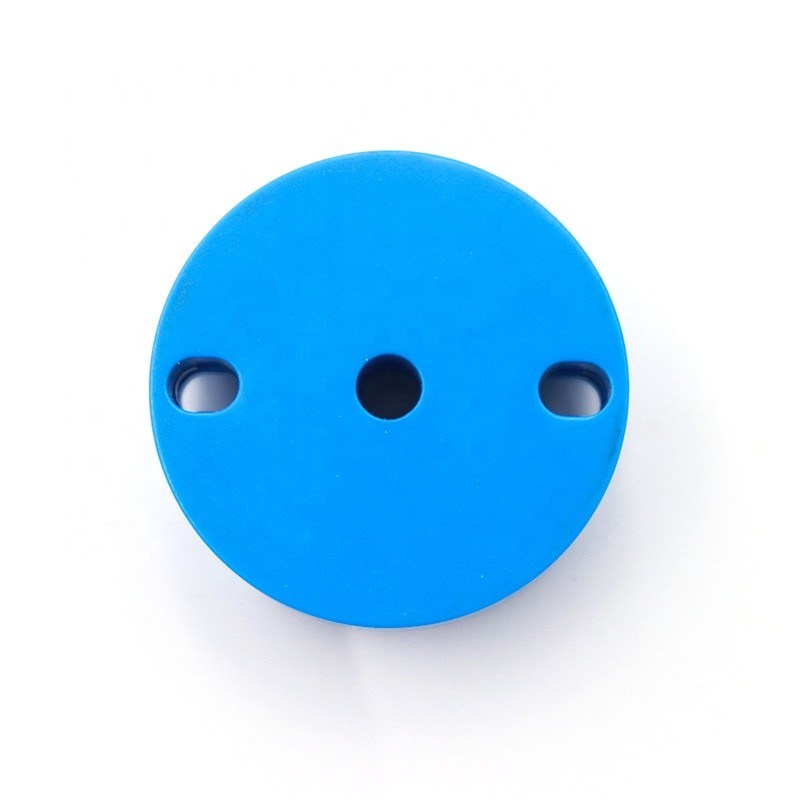

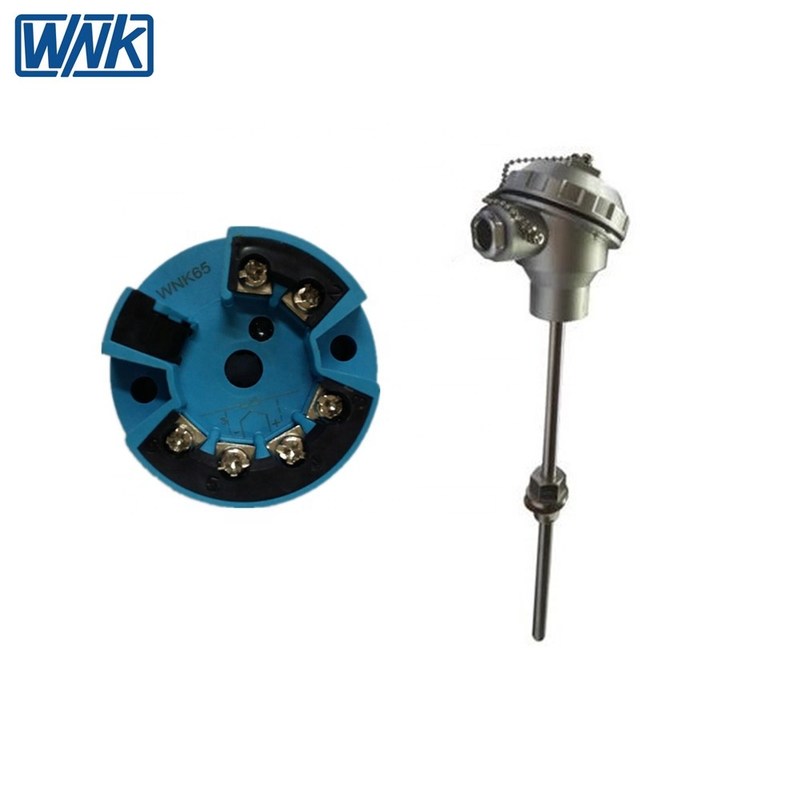

Product Show
Our Company
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
