Place of Origin:
China
Brand Name:
WNK
Model Number:
WNK19
WNK Diffused Silicon Pressure Sensor for Liquid, gas and steam
| Features |
High stability and high accuracy
Low cost OEM
Suited for pressure range: 0-40Kpa…7Mpa
Wide temperature compensation range: total error<1%
Measurable of corrosive media ( media compatible with 316L)
Standard mounting size
Communication: I²C or SPI
| WNK Pressure Sensor Series |
WA19 Diezoresistive Silicon Oil Filled Analog Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor

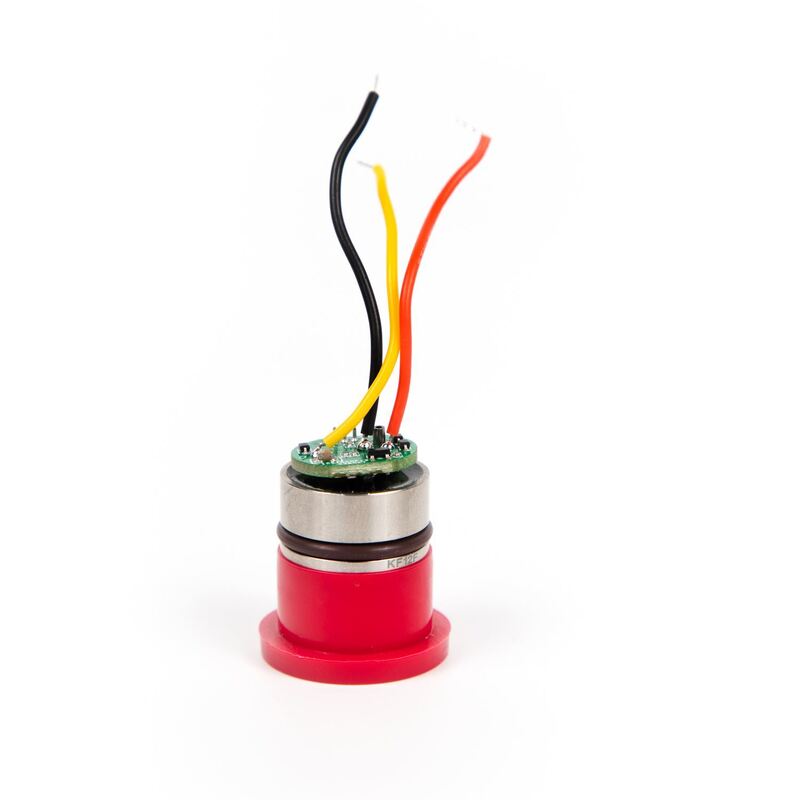

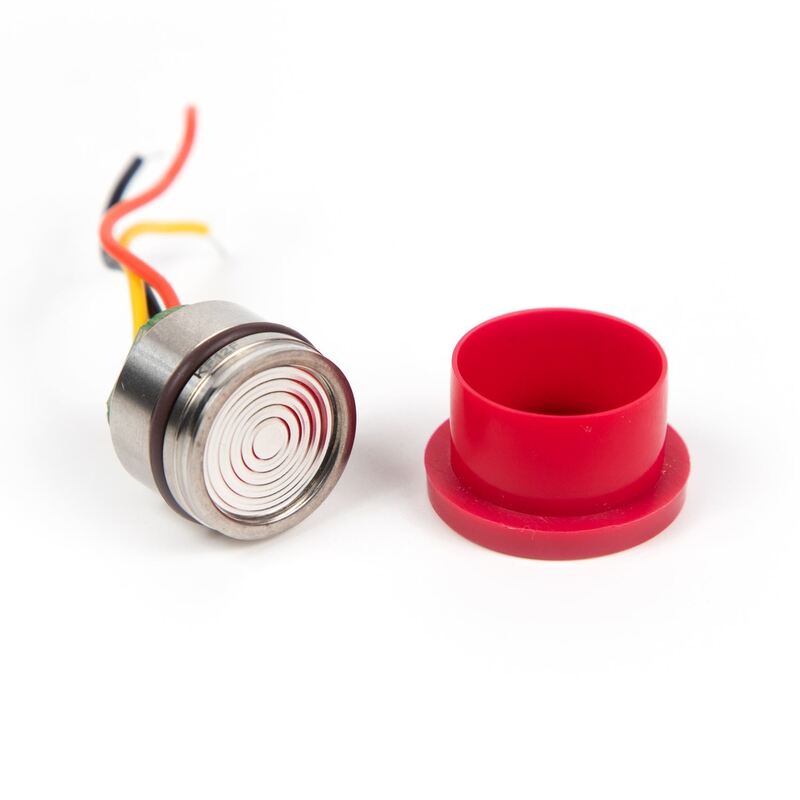

WD19 Digital I2C/SPI Output Diffused Silicon Pressure Sensor Core
D19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.
Digital i2c pressure sensor for gas liquid steam pressure transmitter
Q1: What is the MOQ?
A: No MOQ required, 1 piece for trial or testing purpose is accepted.Send your inquiry directly to us
