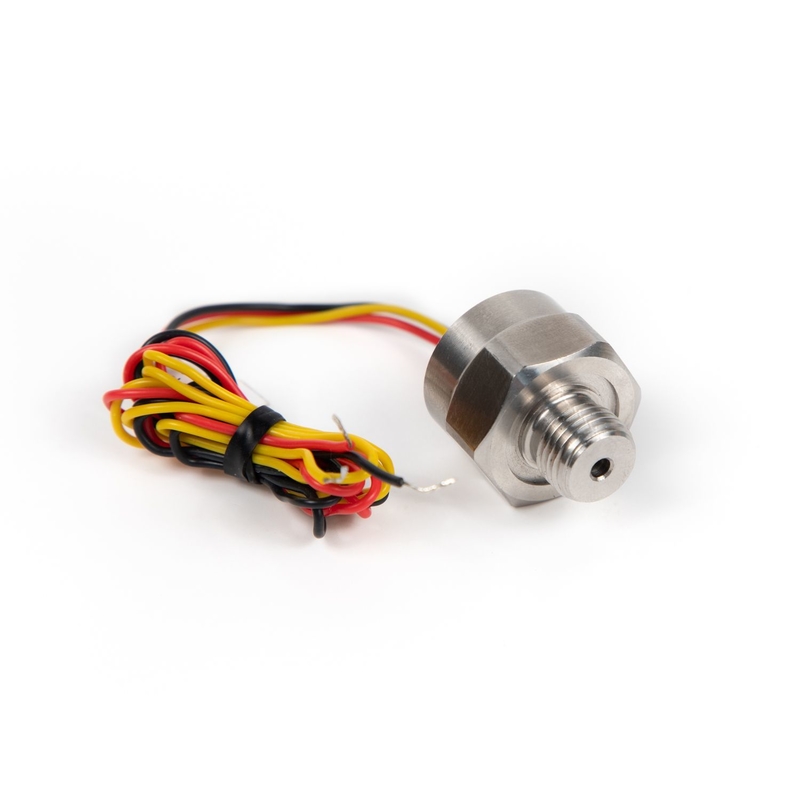

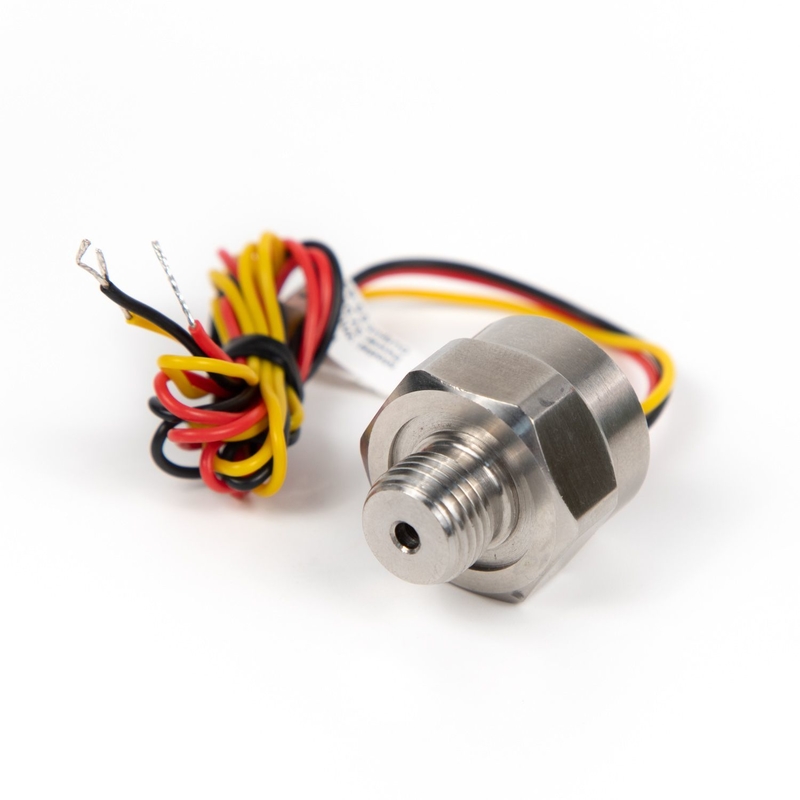

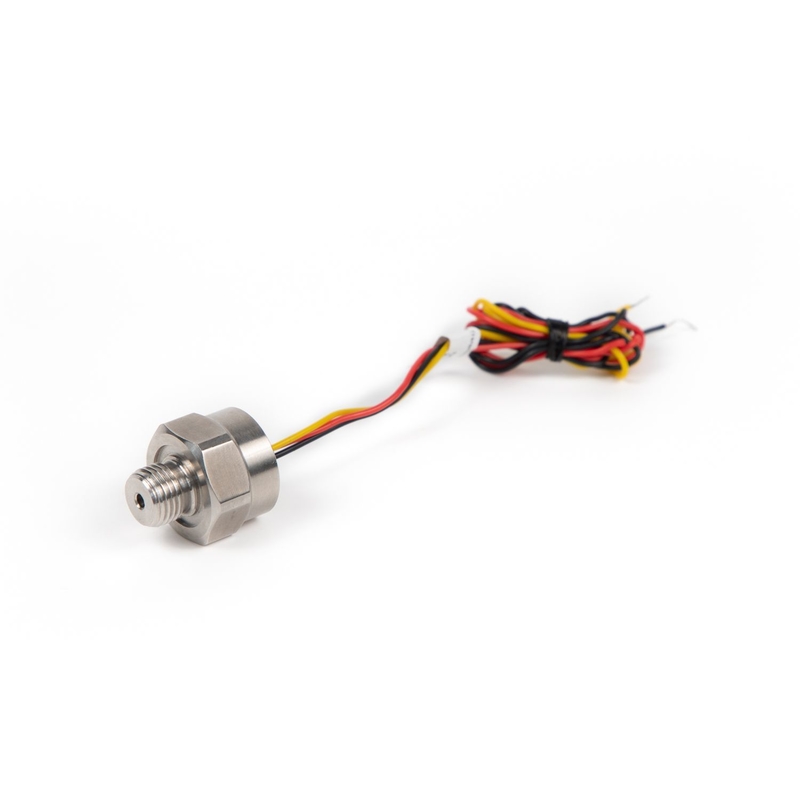

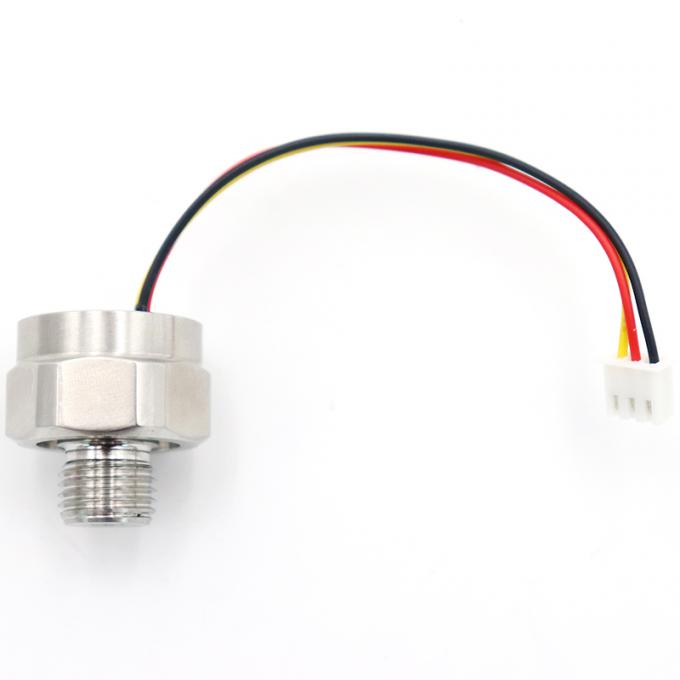

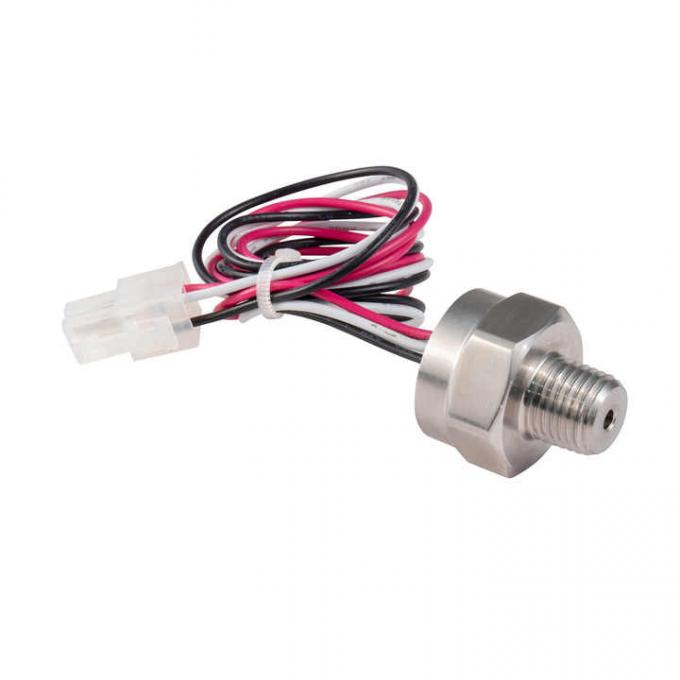

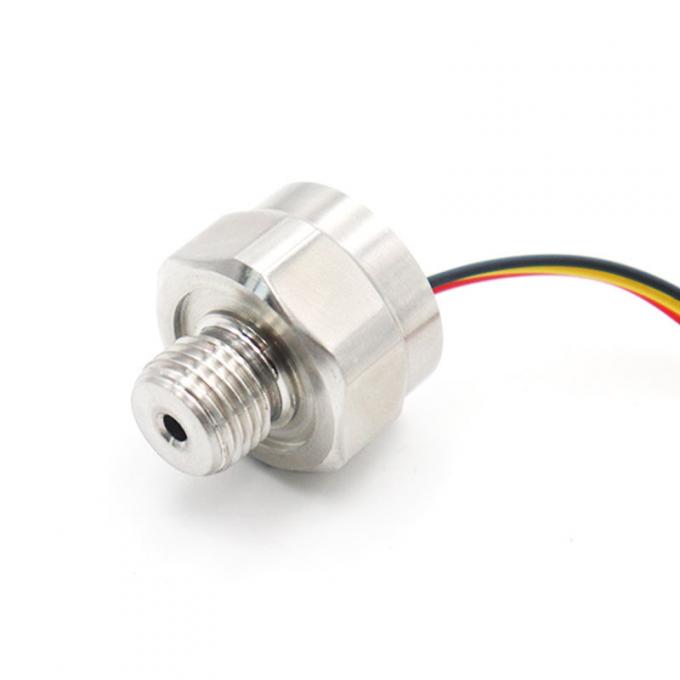

Name: WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK811
Availability: InStock

Home > products > Miniature Pressure Sensors >

WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas

small ceramic capacitive pressure sensor

miniature pressure sensor for water air gas

capacitive pressure sensor with warranty

Place of Origin:

China

Brand Name:

WNK

Model Number:

WNK811

Request A Quote

Product Details

Accuracy:

1%FS

Measured Media:

Liquid, Gas And Steam

Pressure Range:

0~150Bar

Output Signal:

4~20mA

Power Supply:

24V

Ambient Temperature:

-40~110℃

Process Connection:

G1/4M

Electricalconnection:

Wire

Material:

Stainless Steel

Highlight:

small ceramic capacitive pressure sensor

miniature pressure sensor for water air gas

capacitive pressure sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiation

Packaging Details

Neutral carton packing or as per your requirement.

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

5000/ Piece/ Month

0.5-4.5v 4-20ma I2C Ceramic Pressure Sensor For Smart Fire Controlling

Get Best Price

Video

304 Stainless Steel 4- 20mA 0.5-4.5V Pressure Transmitter For Hvac

Get Best Price

Video

4-20mA Ceramic Capacitive Pressure Sensor For Air Condition Compressor

Get Best Price

Video

4-20mA Low Cost Oil Pressure Sensor For Auto

Get Best Price

86-551-65369655

Contact Now

Product Description

Applicable media	Liquid, Gas
Pressure Range	10bar (bar and psi unit available)
Pressure measurment	Gauge Pressure
Output	I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	3.3VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	G1/4
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

WNK811 is a series of high performance mini pressure transducer by using ASIS signal conditioning chip and 316L diaphragm diffused silicon oil filled pressure sensor .It has features of anti-corrosion ,anti-wear ,shock resistance and vibration resistance.With precise temperature characteristic compensation, it can be used reliably and stably.

Application
WNK811 is solution for below applications
•Pressure measurement of gas, vapor or liquid in various areas;
•Liquid level, volume or mass measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and
etc

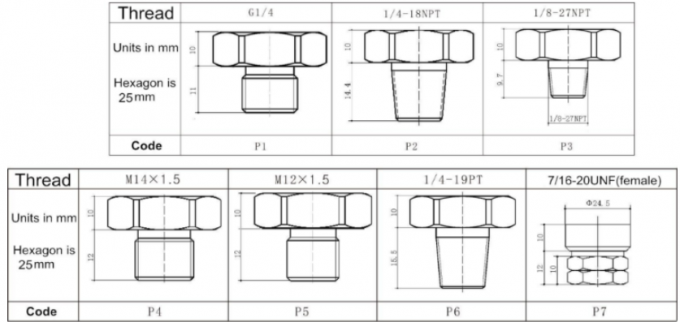

Dimensions
