WNK Submersible Level Pressure Transmitter Liquid Level Pressure Sensor Water Level Transducer

WNK Submersible Level Pressure Transmitter Liquid Level Pressure Sensor Water Level Transducer

submersible water level sensor

liquid pressure level transmitter

water level transducer with warranty

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK8010-TT

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Pressure Range::
0...2~200 Metres
Output:
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Accuracy:
0.2%FS, 0.5%FS,
Power Supply:
12~36VDC
Protection Class:
IP68
Application:
Rainwater, Drinking Water,Wastewater, Sewage, Seawater
Housing Material:
304SS, 316L
Operating Temperature::
-40~85 ℃
Type:
Gauge
OEM Service:
OEM, ODM, Customization Available
Port:
Shanghai/Ningbo
Highlight:

submersible water level sensor

,

liquid pressure level transmitter

,

water level transducer with warranty

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
Each set into one individual carton, protection with foam. Then into master carton
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Piece/Pieces per Month level pressure sensor
Product Description









Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.

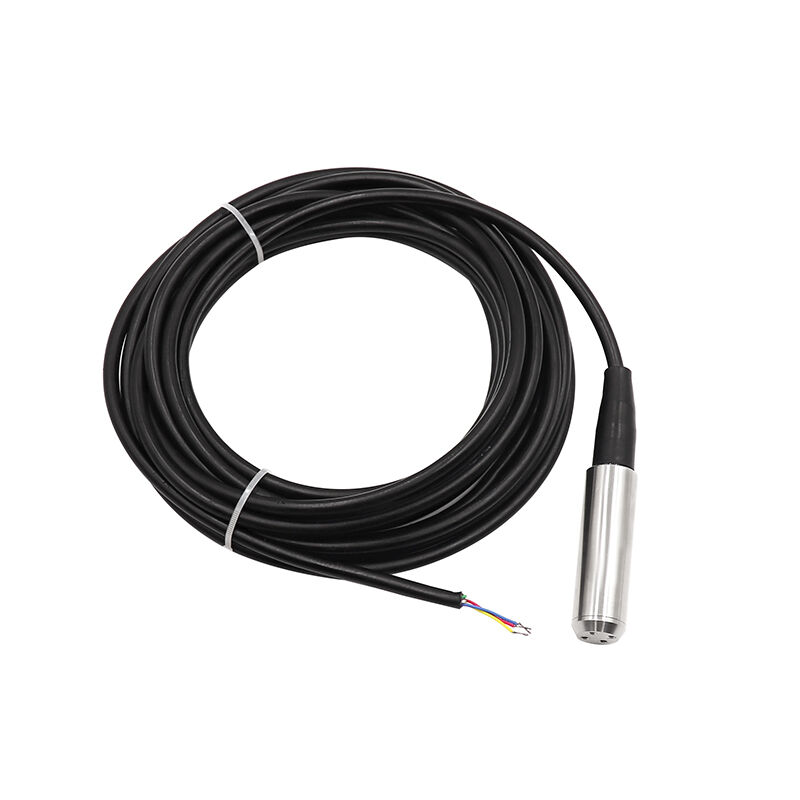

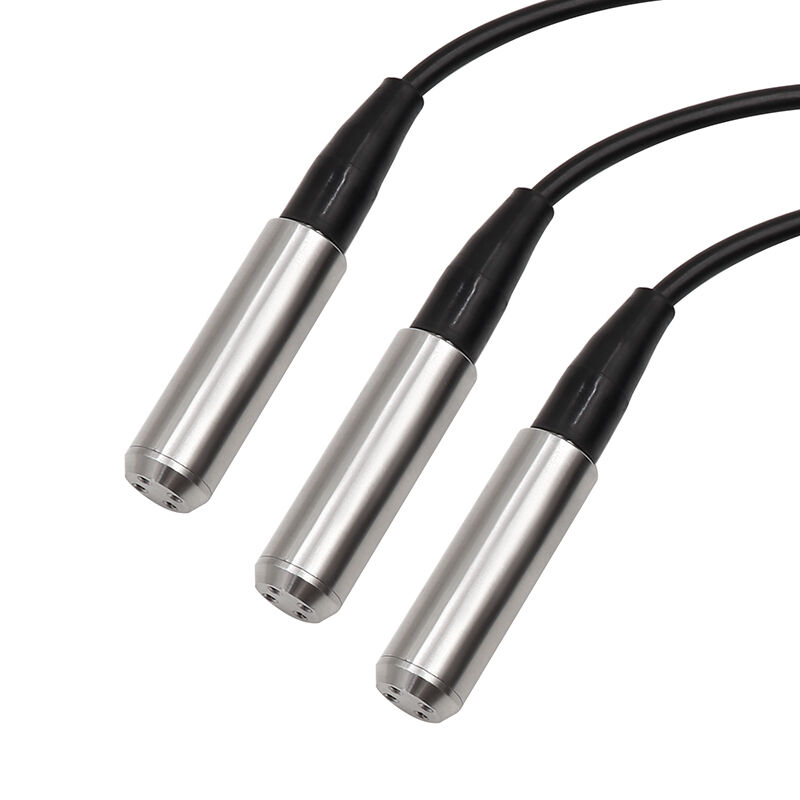

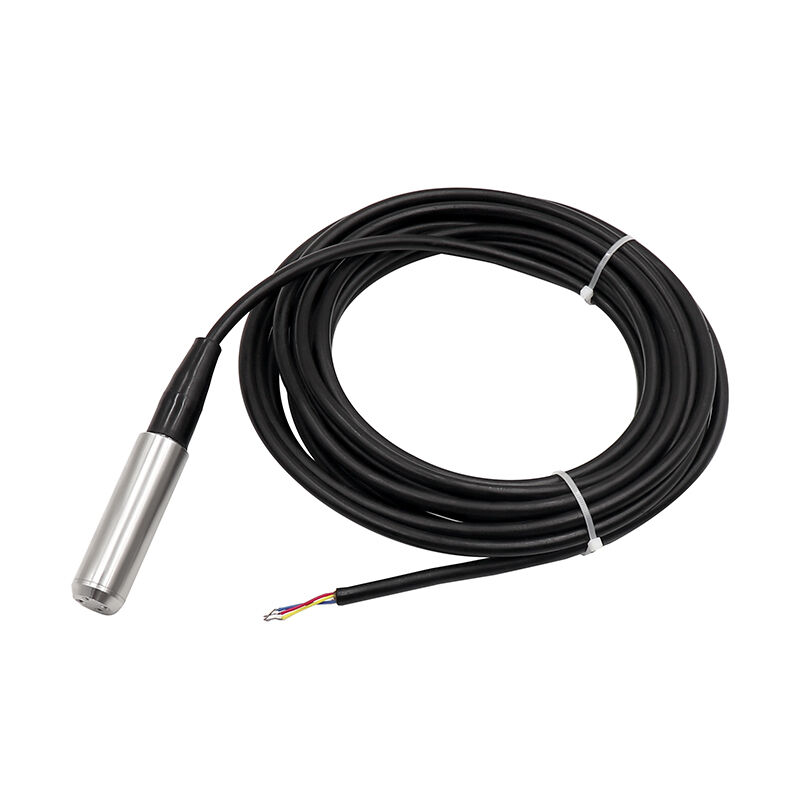

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.


Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price







Dimensions - IP68 Sumbersible Liquid Level Sensor


WNK Submersible Level Pressure Transmitter Liquid Level Pressure Sensor Water Level Transducer 0
WNK Submersible Level Pressure Transmitter Liquid Level Pressure Sensor Water Level Transducer 1
WNK Submersible Level Pressure Transmitter Liquid Level Pressure Sensor Water Level Transducer 2
Product Show
WNK Submersible Level Pressure Transmitter Liquid Level Pressure Sensor Water Level Transducer 3
FAQ
Are you manufacturer or trading company?
We are professional pressure/level/temperature measurement manufacturer since 2004.
What your quality control system?
We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
What is the warranty of your products?
12 month from shipment date, for non-man-made damages.
Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
What is yor MOQ?
We have no MOQ limits, small quantity order is acceptable.
What's the transport?
Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
