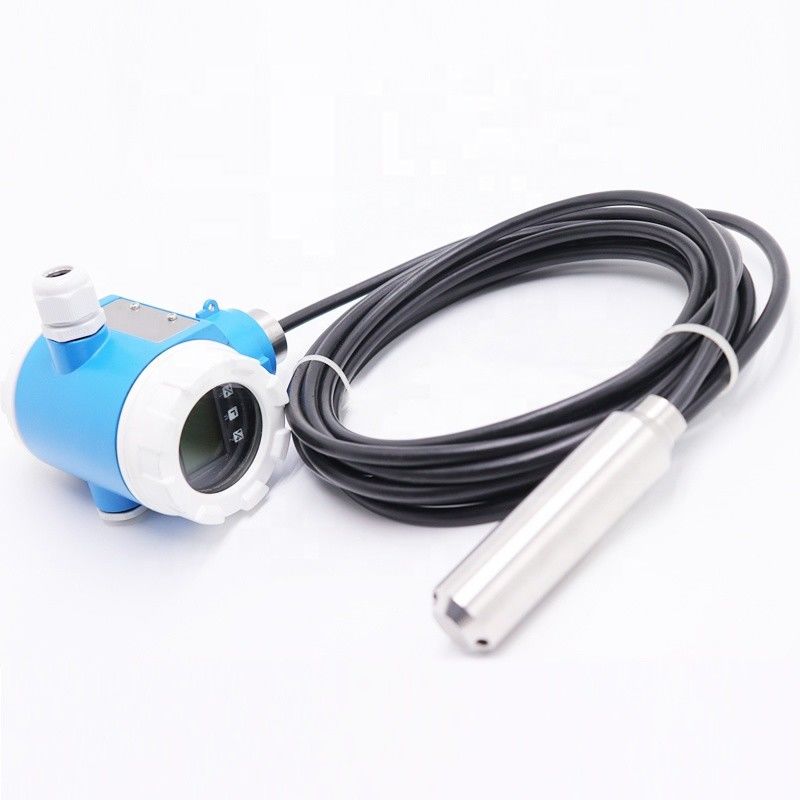

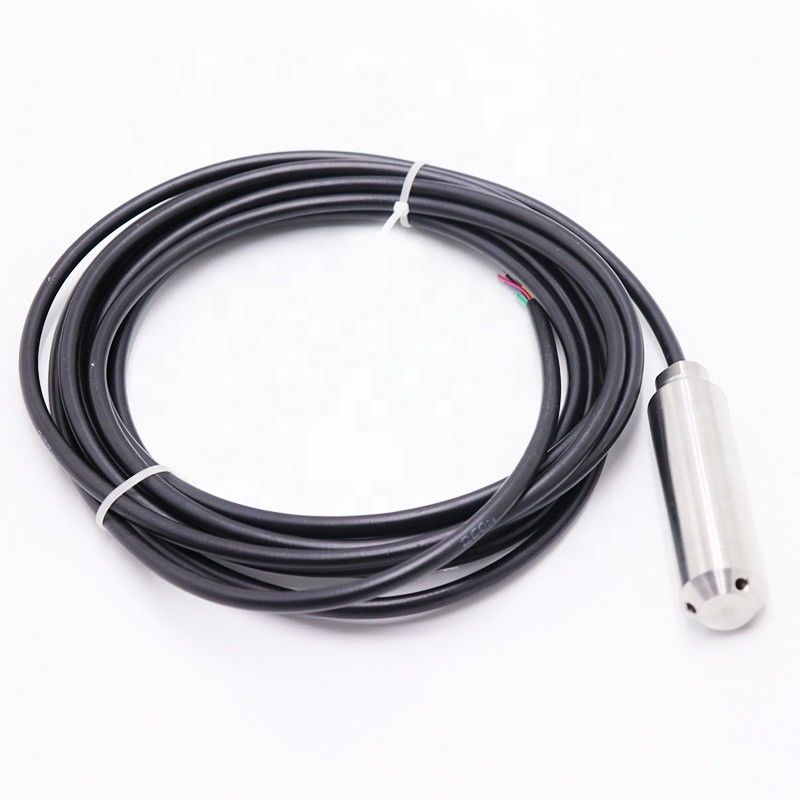

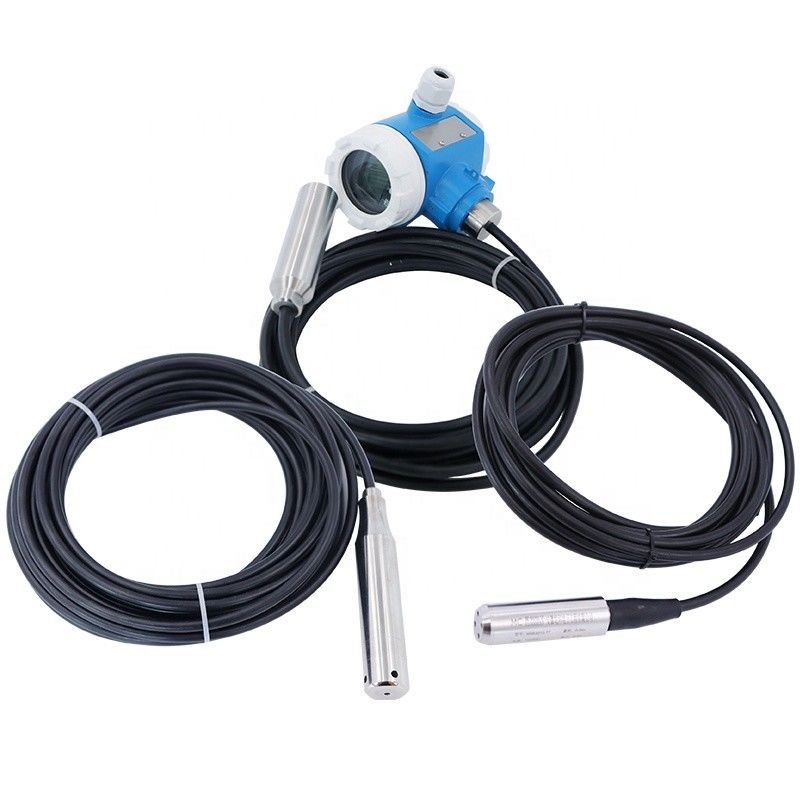

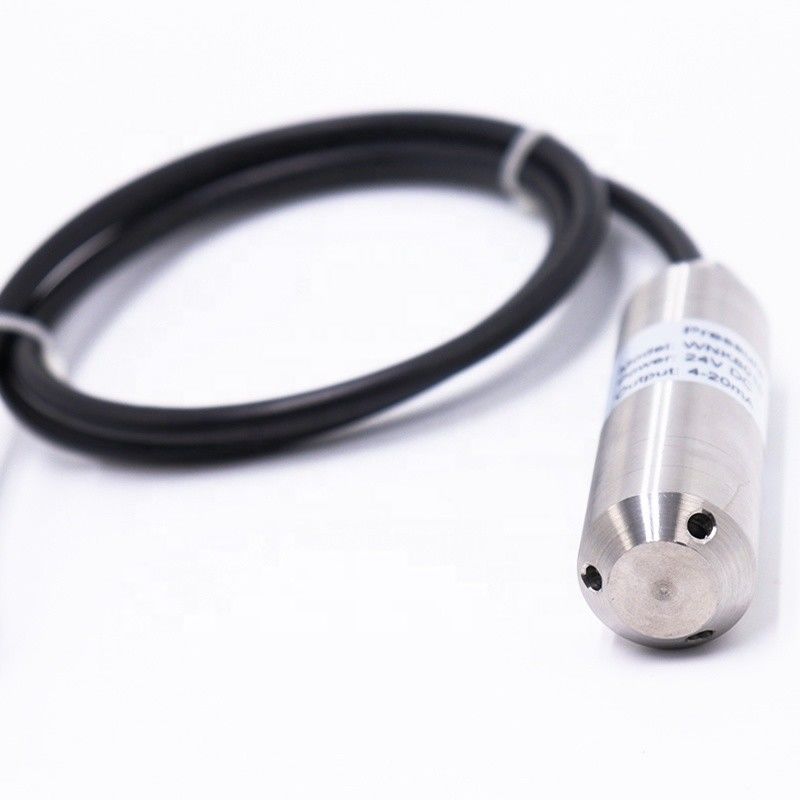

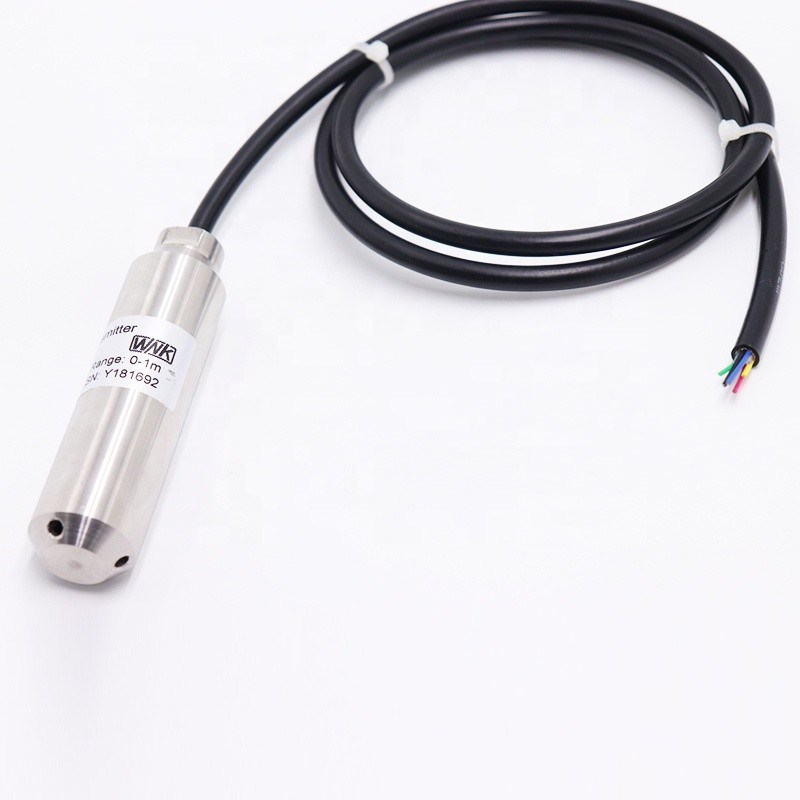

WNK Explosion Proof Liquid Level Sensor 200 Meters With High Stability
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK8010-T |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $55.00 - $70.00/Pieces |
Packaging Details: | Paper carton or as client's requirement |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 100000 Piece/Pieces per Month Liquid Level Sensor |
Detail Information |
|||
Grade: | Industrial | Warranty: | 1 YEAR |
---|---|---|---|
Customized Support: | OEM, ODM | Product Name: | 0.5-4.5V 4-20mA Water Level Sensor For Level Measuring Instruments |
Accuracy: | ±0.25% FS/year, ±0.5% FS/year | Level Range: | 0-200m H2O |
Power Supply: | 24V/12V/5V/3.3V | Output: | 4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, IIC,HART,RS485 |
Housing Material: | Stainless Steel | Cable Length: | 5M |
Protection Class: | IP68 | Cable Material: | PE/PF |
Overload: | 150% Times | Port: | Shanghai, Shenzhen |
High Light: | PE Cable Explosion Proof Liquid Level Sensor,200 Meters Explosion Proof Liquid Level Sensor,High Stability liquid level switch |
Product Description
0.5-4.5V 4-20mA Liquid Level Sensor For Water Level Measuring Instruments
- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Pressure measurment
|
Liquid,Water
|
Accuracy
|
±0.2% FS/year, ±0.5% FS/year
|
Output
|
4~20mA, 0-5V ,0.5-4.5V ,I2C
|
Power supply
|
24VDC
|
Ambient/Process/Compensation temperature
|
-20~80℃
|
Housing material
|
Stainless steel
|
Ingress Protection
|
IP68
|
Measured Range
|
0-0.5~200mH2O
|
Display
|
Available
|
Max Overload
|
150% of sensor range
|
Burst Pressure
|
300% of sensor range
|
Measure Medium
|
Liquid
|
Stability
|
0.25%FS/ year
|
Cable material
|
Polyvinyl Fluoride, PTFE
|






Our Company


Packing&Shipping


FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
