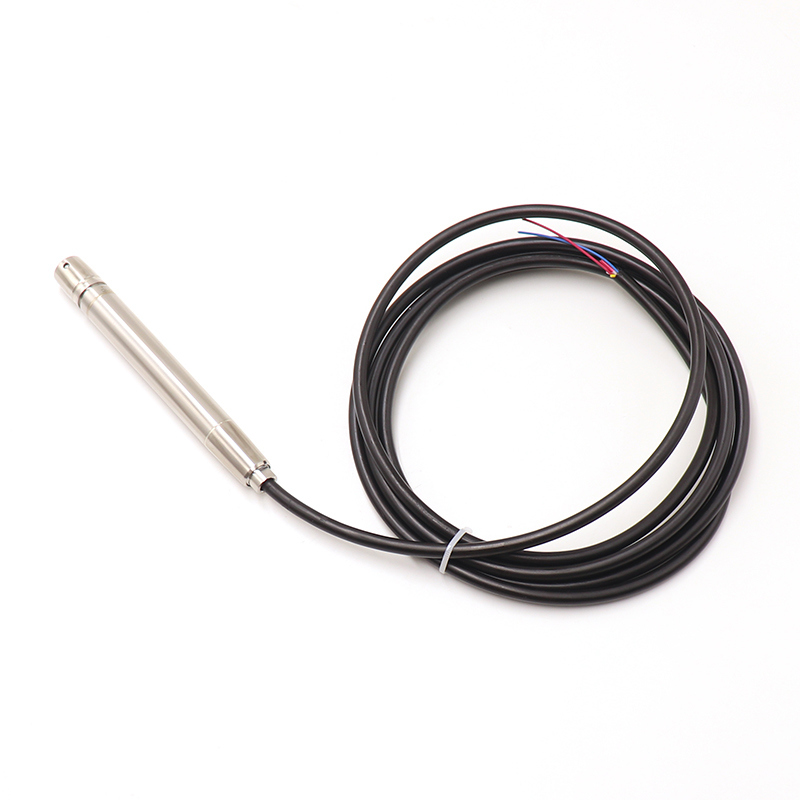

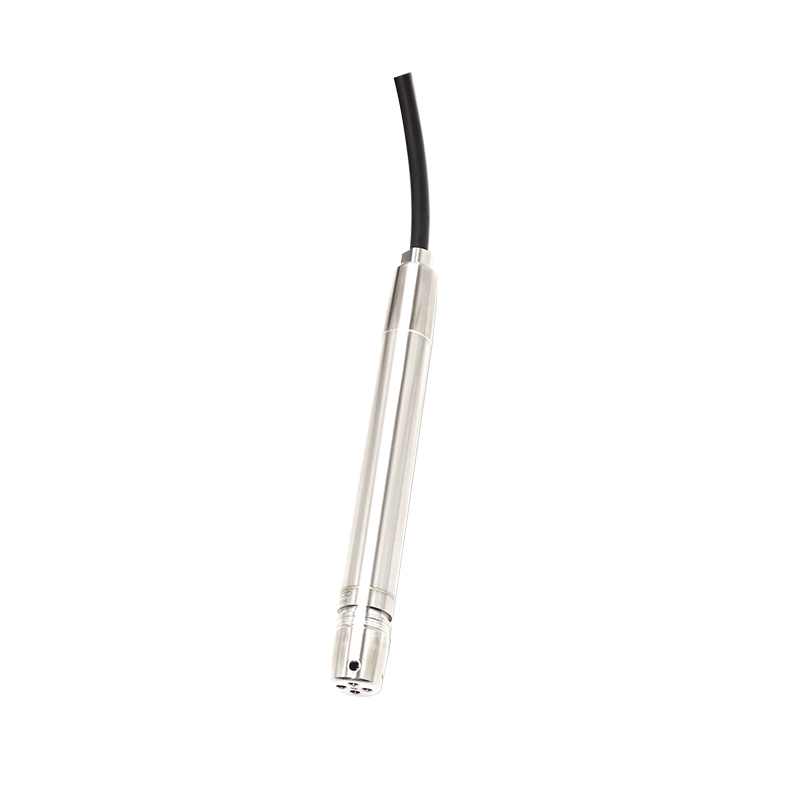

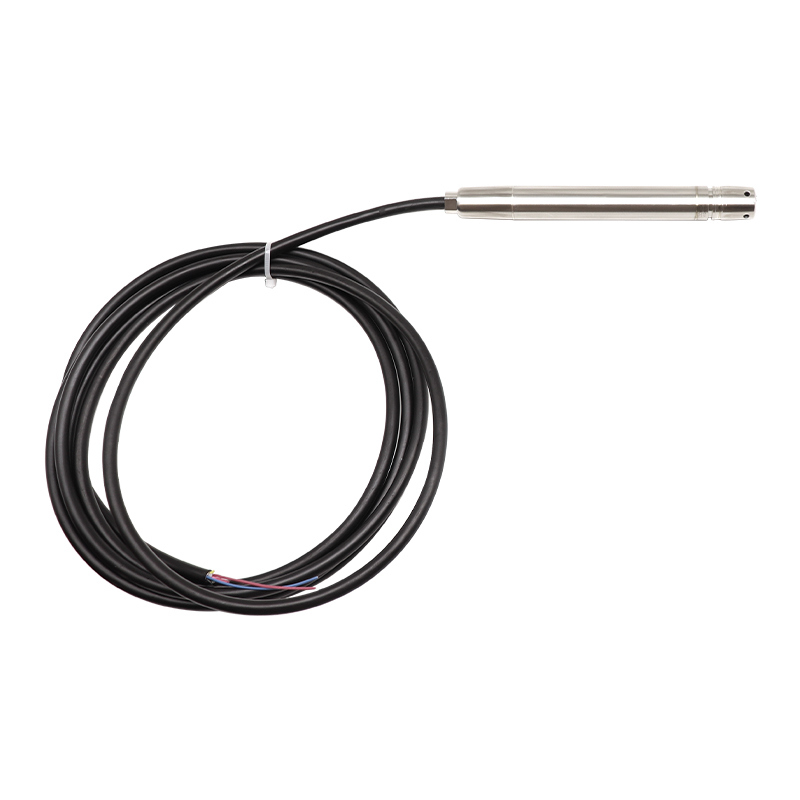

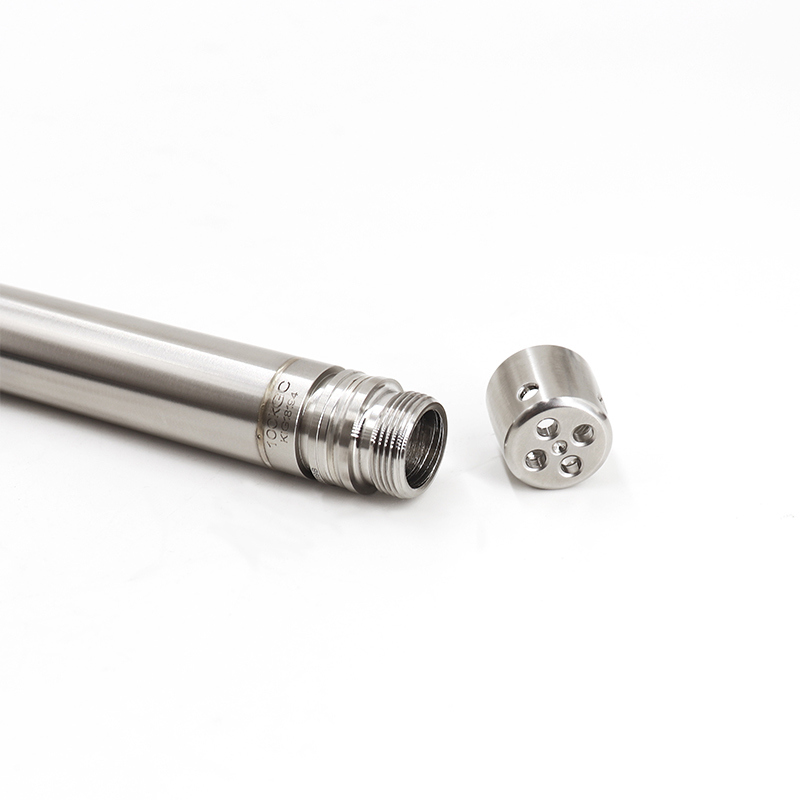

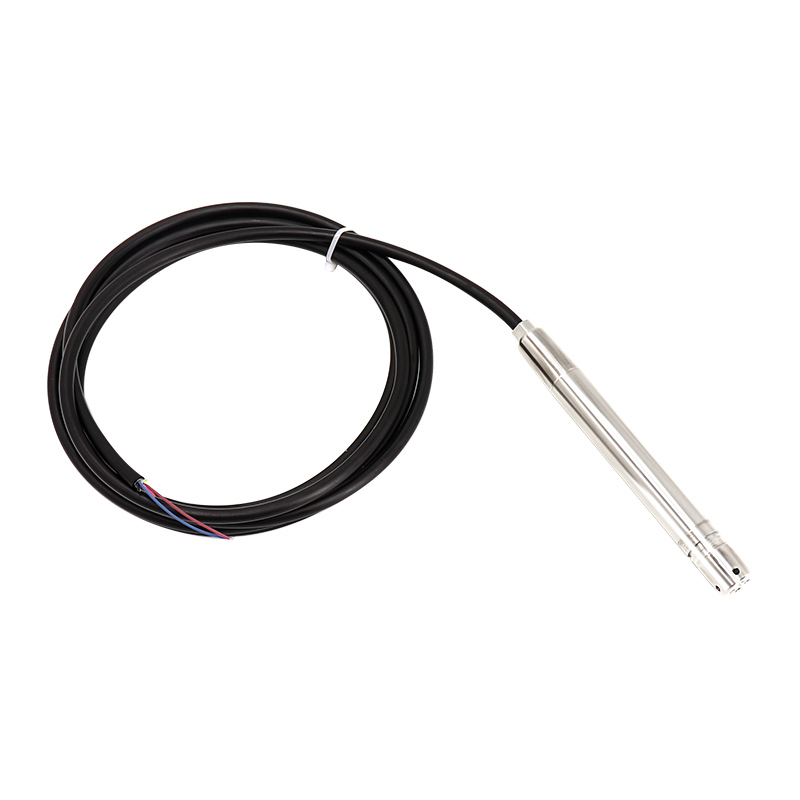

Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

Home > Products > Water Level Transmitter >

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK8010-19

Request A Quote

Product Details

Warranty:

1 YEAR

Customized Support:

OEM, ODM

Pressure Range::

0...2~200 Metres

Output:

4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Accuracy:

0.2%FS, 0.5%FS,

Power Supply:

12~36VDC

Protection Class:

IP68

Application:

Rainwater, Drinking Water,Wastewater, Sewage, Seawater

Housing Material:

304SS, 316L

Operating Temperature::

-40~85 ℃

Type:

Gauge

OEM Service:

OEM, ODM, Customization Available

Port:

Shanghai/Ningbo

Highlight:

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

$35.00 - $50.00/Pieces

Packaging Details

Each set into one individual carton, protection with foam. Then into master carton

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

2000 Piece/Pieces per Month level pressure sensor

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Get Best Price

Video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Get Best Price

WNK OEM Liquid Level Measuring 4-20mA 0.5-4.5V Hydrostatic Water Level Sensor

Get Best Price

Submersible Level Transducer Rs485 4-20ma Water Level Sensor for Water tank

Get Best Price

86-551-65369655

Contact Now

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

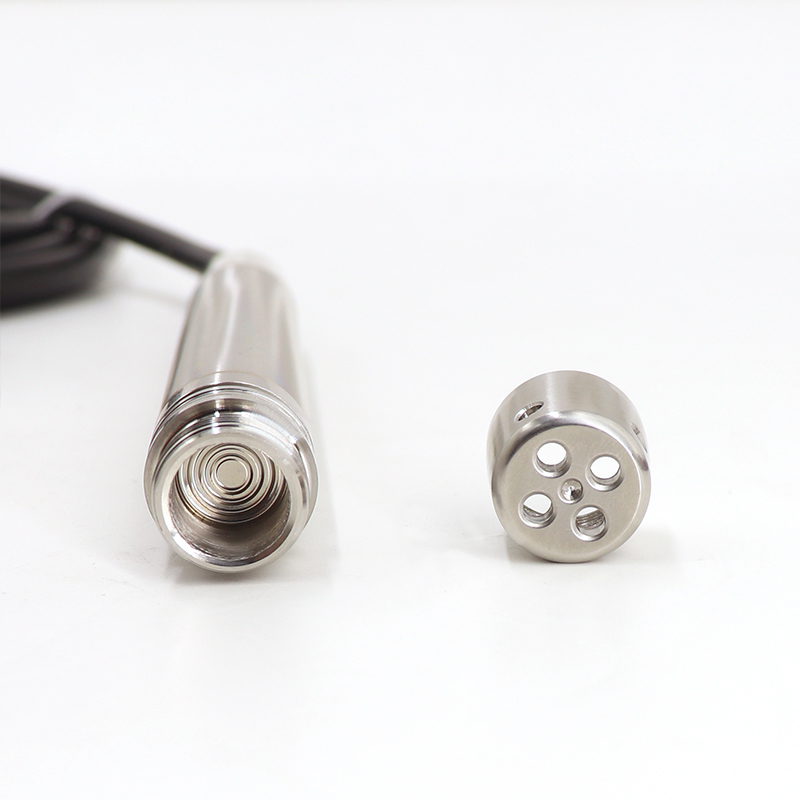

• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
