WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar

WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar

IP65 Protection Pressure Sensor

ODM Pressure Sensor

WNK Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK83mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Model:
WNK83mA
Application:
Constant Pressure Water Supply System
Measured Media:
Typical Water, Gas, Oil, Hydraulic Oil, Etc.
Pressure Range:
0-10bar,0-20bar
Power Supply:
5V DC
Output:
0.5-4.5VDC
Protection Class:
IP65 /67
Housing Material:
Brass
OEM Service:
OEM, ODM, Customization Available
Operating Temperature::
-40~85 ℃
Port:
Shanghai/Ningbo
Highlight:

IP65 Protection Pressure Sensor

,

ODM Pressure Sensor

,

WNK Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$6.00 - $6.50/Pieces
Packaging Details
each product in one inner paper box with protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
3000 Piece/Pieces per Month 5V pressure sensor
Product Description
WNK 0.5-4.5V 0-20Bar Brass Pressure Sensor For Water Air Gas
Specification
WNK83MA Gauge/Sealing Pressure Sensor
Applicable media
Liquid, Gas
Pressure range
0-10bar, 0-20bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
0.5-4.5V
Power supply
4.75-5.25VDC
Supply current
15mA Max
Accuracy(linearity,Hysteresis and Repeatability)
±1%F.S.
Total error band
±3%
Max pressure
2 times
Burst pressure
3 times
power(electrical) connection
Parkard connector, Direct cable outlet(50cm)
Process connection
G1/4, 1/4NPT
Housing material
Brass
Protection
IP65
Working temperature
-20~70℃
Storge temperature
-40~110℃
Product Description
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Application



WNK83MA is solution for below applications: •
Pressure measurement of gas or liquid in various areas;
•Liquid level measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive
electronics controlling, air compressor, HVAC, pump, valve and etc;

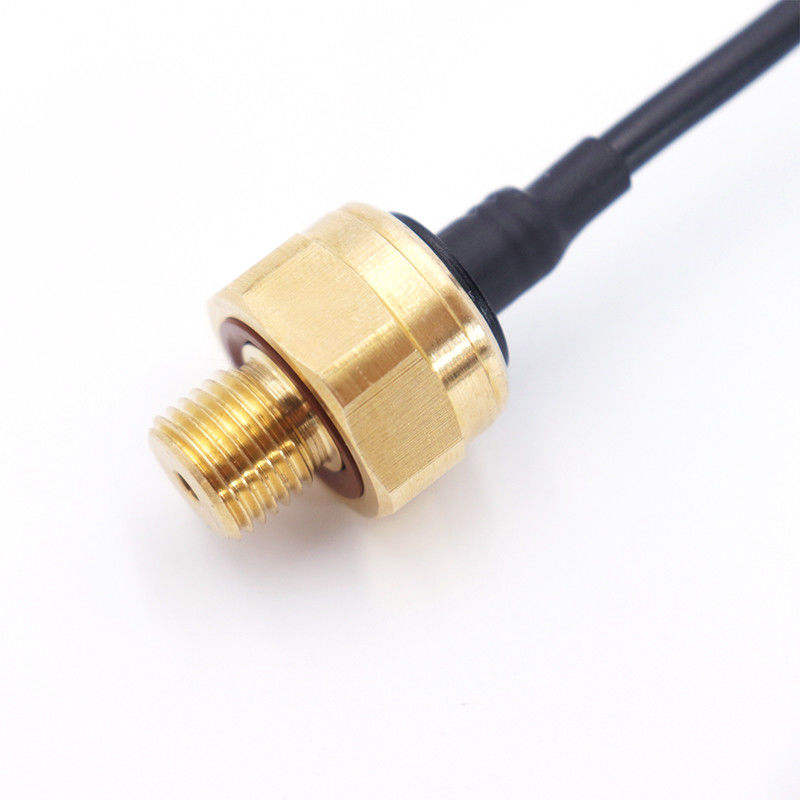

WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar 0

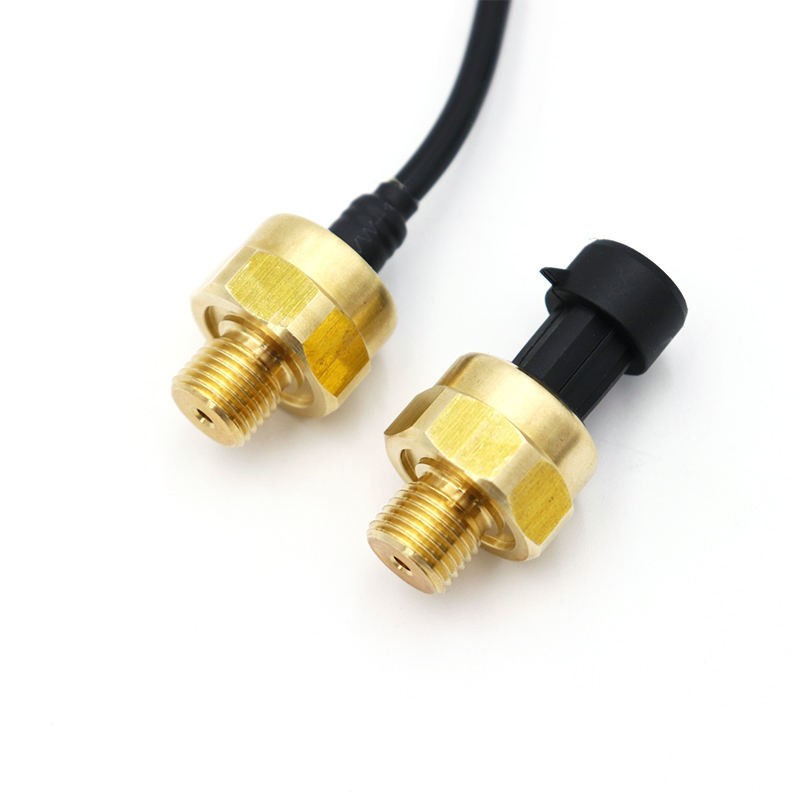

WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar 1
