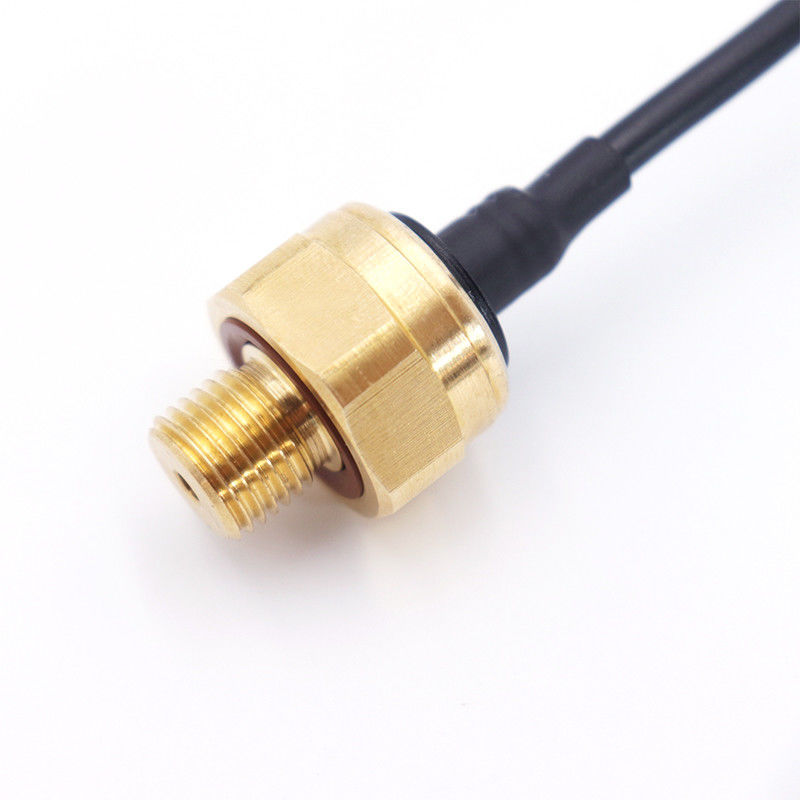

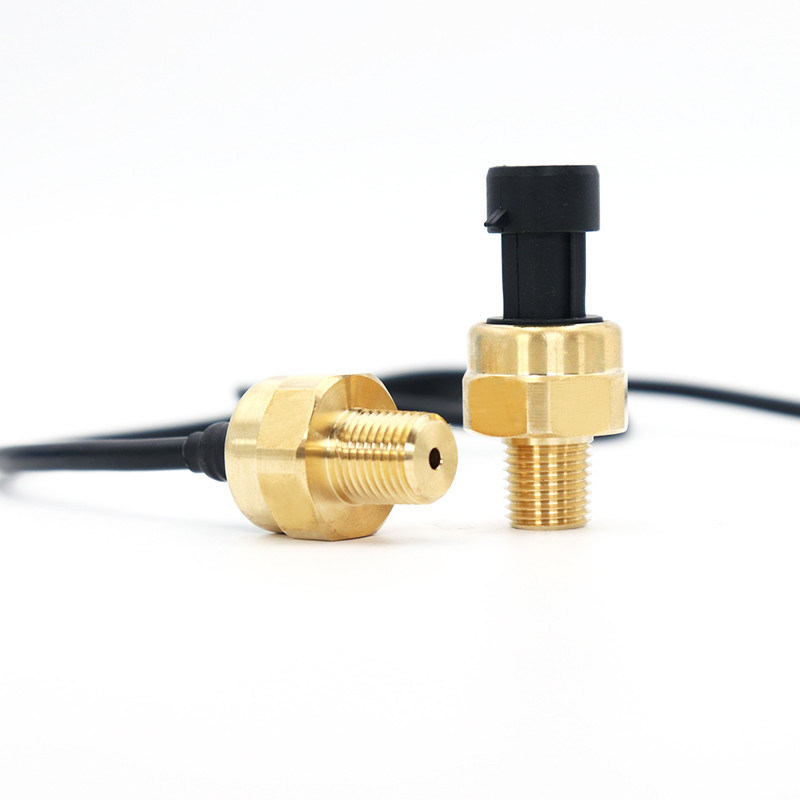

High Performance 0.5 - 4.5V Brass Pressure Sensor For Air Oil Gas

High Performance 0.5 - 4.5V Brass Pressure Sensor For Air Oil Gas

0.5-4.5V Brass Pressure Sensor

Brass Housing Miniature Pressure Sensors

Miniature Pressure Sensors IP65 Protection

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK83mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Model:
WNK83mA
Application:
Constant Pressure Water Supply System
Measured Media:
Typical Water, Gas, Oil, Hydraulic Oil, Etc.
Pressure Range:
0-10bar,0-20bar
Power Supply:
5V DC
Output:
0.5-4.5VDC
Protection Class:
IP65 /67
Housing Material:
Brass
OEM Service:
OEM, ODM, Customization Available
Operating Temperature::
-40~85 ℃
Port:
Shanghai/Ningbo
Highlight:

0.5-4.5V Brass Pressure Sensor

,

Brass Housing Miniature Pressure Sensors

,

Miniature Pressure Sensors IP65 Protection

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$6.00 - $6.50/Pieces
Packaging Details
each product in one inner paper box with protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
3000 Piece/Pieces per Month 5V pressure sensor
Product Description

High Performance 0.5-4.5V Brass Pressure Sensor For Air Oil Gas





WNK 0.5-4.5V Brass Pressure Sensor For Water Air Gas

Product Description
Applicable media Liquid, gas, steam
Pressure range 0-10bar, 0-20bar
Cell Ceramic capacitive pressure sensor
Pressure measurement Gauge pressure, sealing pressure, absolute pressure
Output 0.5-4.5VDC
Power supply 4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability) 1%F.S.
Work temperature -20~70ºC
Ambient temp -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection NPT1/4
Mechanical connection Cable outlet
Housing material Brass



High Performance 0.5-4.5V Brass Pressure Sensor For Air Oil GasHigh Performance 0.5-4.5V Brass Pressure Sensor For Air Oil Gas

High Performance 0.5-4.5V Brass Pressure Sensor For Air Oil Gas
