4 - 20mA 0.5 - 4.5V Output Water Depth Level Sensor For Fuel Tank
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK 8010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $35.00 - $50.00/Pieces |
| Packaging Details: | cartons |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 3000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Output Signal: | 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V | Accuracy: | 0.2%FS, 0.5%FS |
| Pressure Type: | Gauge | Power Supply: | 12~36VDC |
| Housing Material: | 304SS, 316L | Measuring Medium: | Rainwater, Drinking Water,Wastewater, Sewage, Oil |
| Stability: | 0.2%FS/year | Protection Class: | IP68 |
| Overload: | 1.5 Times | Working Temperature: | -40~85 ℃ |
| Port: | Shanghai | ||
| High Light: | 20mA Output Water Depth Level Sensor,4.5V Output Water Depth Level Sensor,IP68 Water Depth Level Sensor |
||
Product Description

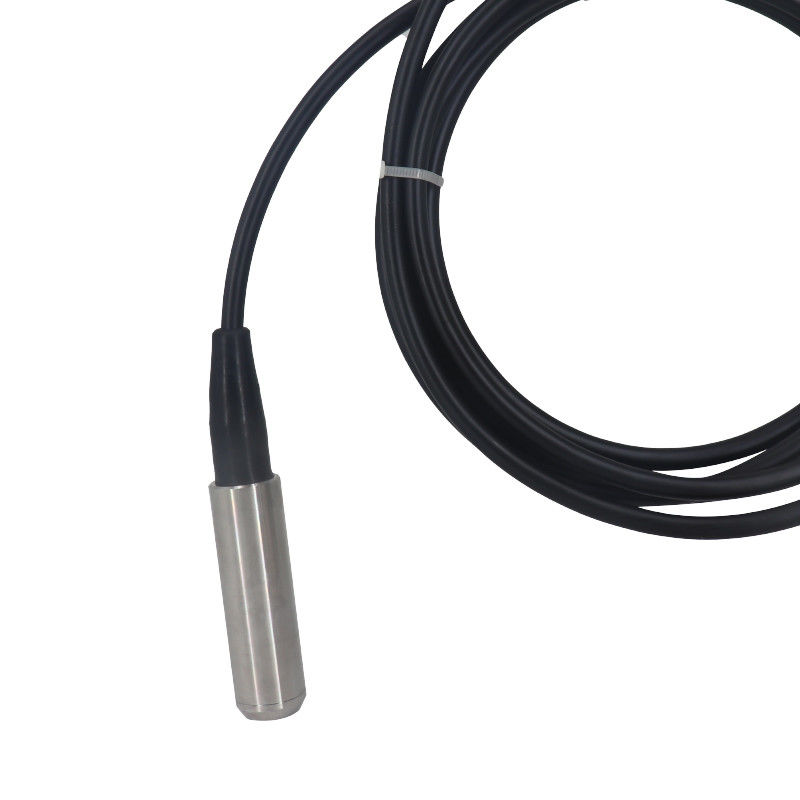

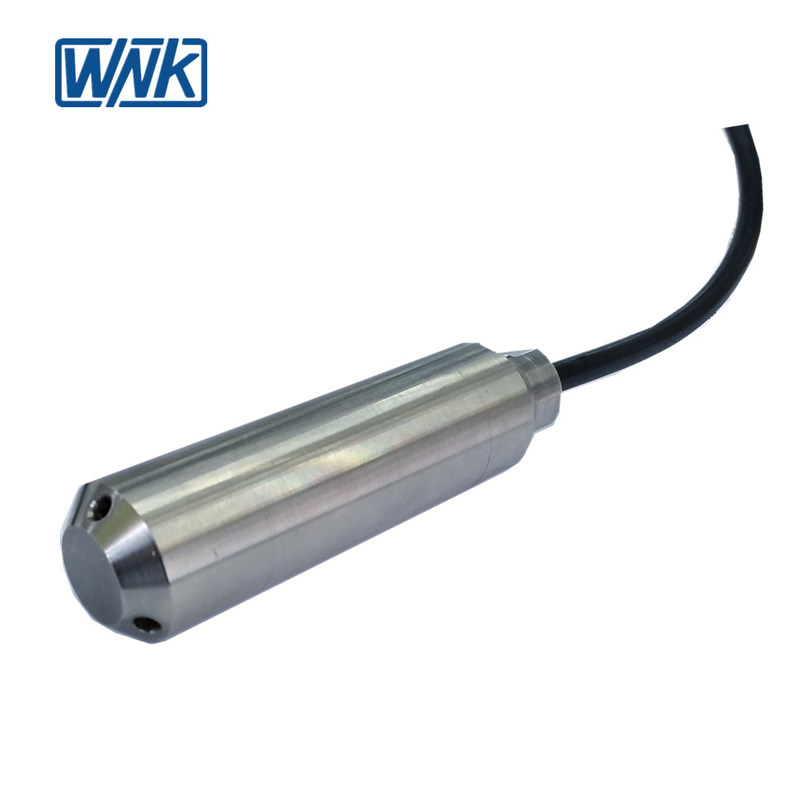

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.
| >> Quick information |
1. High accuracy 0.2%FS;
2. Wide application range 0-0.5~200m H2O;
3. Output 4~20mA, 0~10mA, 0~5V, 1~5V & customization;
4. High overload 150 times;
5 .Stability 0.25%FS/Year;
6. Protection class IP68;
7. High cost effective with OEM &ODM
Application:open tank, waste water, fire fighting water tank, reservoir water level, fuel tank and etc.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
