Water Pressure Sensor For Refrigerant HVAC 4 - 20mA 0.5 - 4.5V

Water Pressure Sensor For Refrigerant HVAC 4 - 20mA 0.5 - 4.5V

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Certification: CE, ROHS
Model Number: WNK80mA

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $12.00 - $19.00/Pieces
Packaging Details: each product in one inner paper box with foam protection
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000 Set/Sets per Week
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Measured Media: Liquid, Gas And Steam Output Signals: 4~20mA, 1-5V,
Accuracy: 0.2%F.S, 0.5%F.S Pressure Range: 0~6MPa
Protection Class: IP65 Housing Material: 304SST
Power Supply: 24VDC/12VDC/5VDC Product Name: 4-20mA 0.5-4.5V Pressure Sensor For Oil Gas
Keyword: Mems Pressure Sensor MOQ: 1set
Port: Shanghai Port
High Light:

4.5V Water Pressure Sensor

,

Refrigerant HVAC Water Pressure Sensor

,

Air Pressure Transmitter IP65

Product Description

4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC



Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC

Product Description



WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0~60bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65



>>> Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems

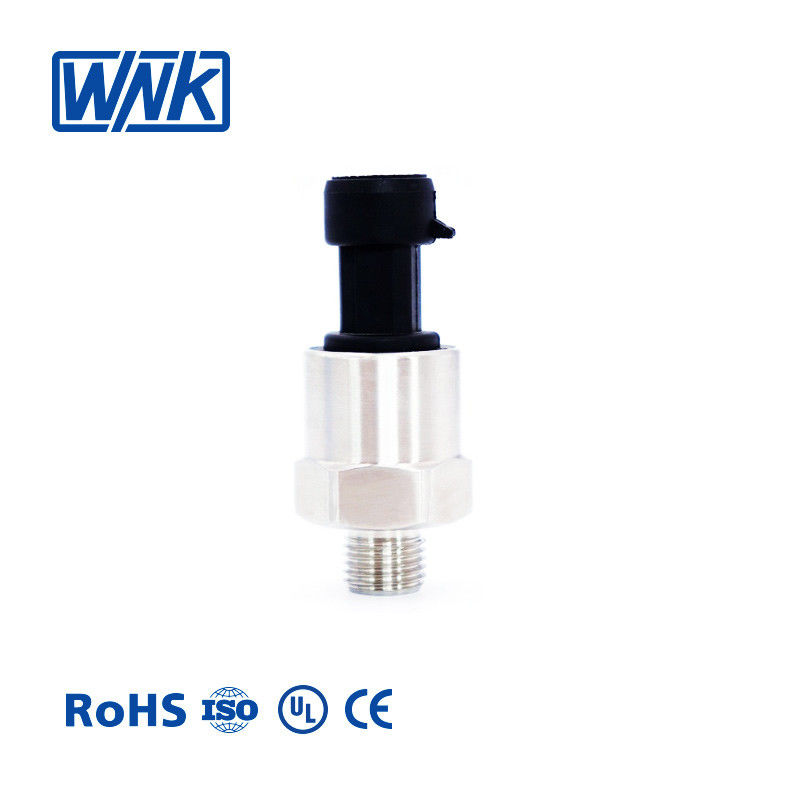

Product Show

4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
