Smart I2C Pressure Transmitter Sensor IP65 For Gas Liquid And Steam
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Certification: | CE, ROHS |
| Model Number: | WNK80mA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $12.00 - $19.00/Pieces |
| Packaging Details: | each product in one inner paper box with foam protection |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 2000 Set/Sets per Week |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Measured Media: | Liquid, Gas And Steam | Output Signals: | 4~20mA, 1-5V, |
| Accuracy: | 0.2%F.S, 0.5%F.S | Pressure Range: | 0~6MPa |
| Protection Class: | IP65 | Housing Material: | 304SST |
| Power Supply: | 24VDC/12VDC/5VDC | Product Name: | 4-20mA 0.5-4.5V Pressure Sensor For Oil Gas |
| Keyword: | Mems Pressure Sensor | MOQ: | 1set |
| Port: | Shanghai Port | ||
| High Light: | IP65 Pressure Transmitter Sensor,Smart I2C Pressure Transmitter Sensor,Miniature Pressure Sensors IP65 |
||
Product Description

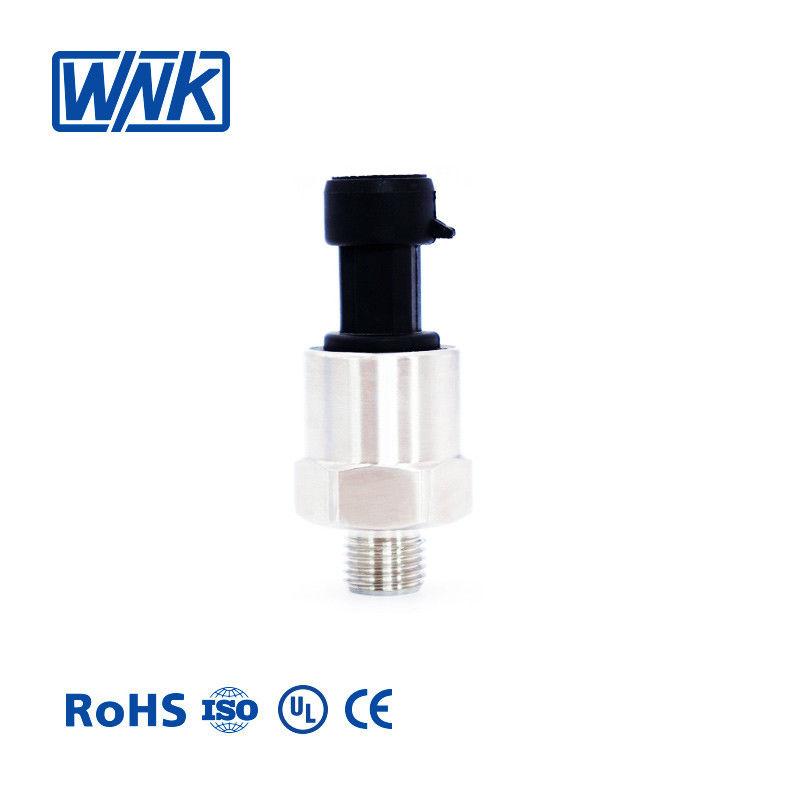

4-20ma 0.5-4.5V Smart I2C Pressure Transmitter Sensor For Gas Liquid And Steam
Air Conditioner Compressor pressure sensor
Product Spec
|
WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
|
|
|
|
Applicable media
|
Liquid, Gas
|
|
|
Pressure range
|
0-20kPa~350bar
|
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-5V
|
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
|
Power supply
|
24VDC/12VDC/5VDC
|
|
|
Compensation temperature
|
-20~85ºC
|
|
|
Ambient temperature
|
-40~125ºC
|
|
|
Working temperature
|
-40~125ºC
|
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
|
power(electrical) connect
|
Parker joint, customization
|
|
|
Mechanical connection
|
G1/4, 1/8NPT,M12*1.5, customize
|
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
|
Protection
|
IP65
|
|
