4 - 20ma 0.5 - 4.5V Compact Pressure Sensor For Air Conditioner Compressor

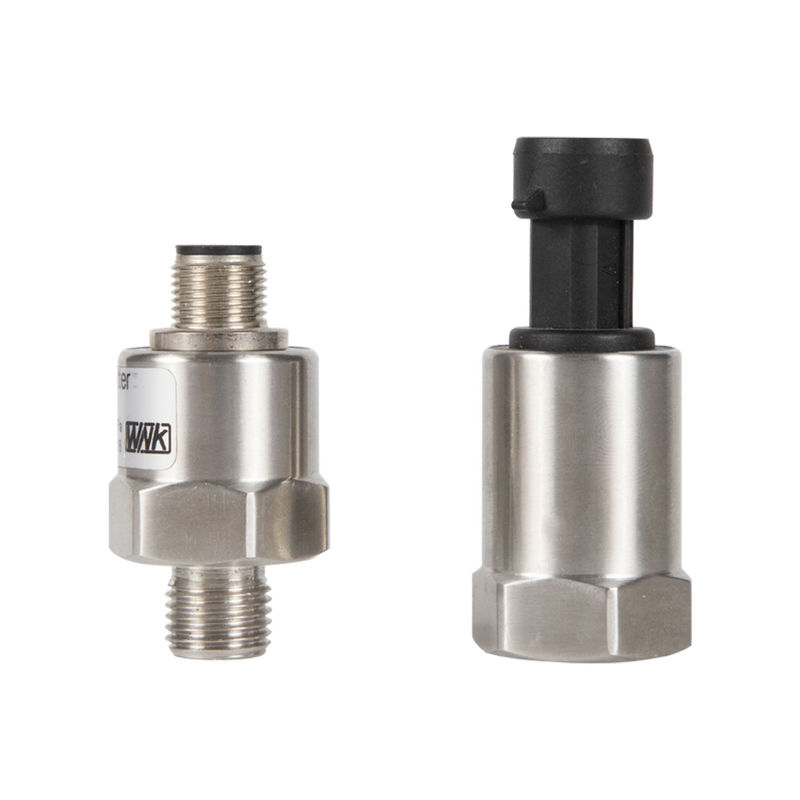

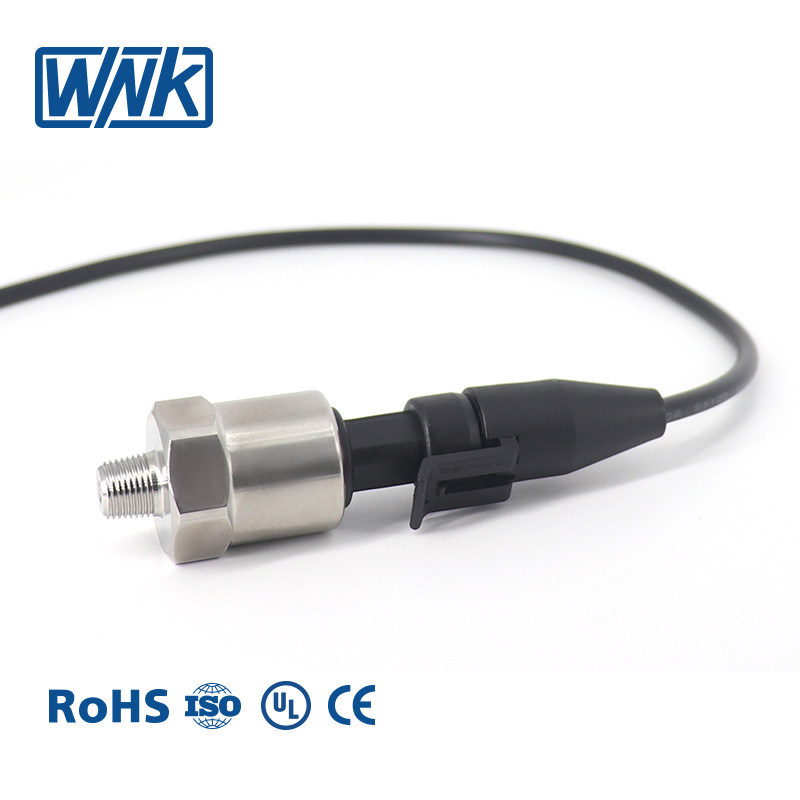

4 - 20ma 0.5 - 4.5V Compact Pressure Sensor For Air Conditioner Compressor

304SST Housing Compact Pressure Sensor

IP65 Compact Pressure Sensor

Air Conditioner Compressor Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4~20mA, 1-5V,
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
0~6MPa
Protection Class:
IP65
Housing Material:
304SST
Power Supply:
24VDC/12VDC/5VDC
Product Name:
4-20mA 0.5-4.5V Pressure Sensor For Oil Gas
Keyword:
Mems Pressure Sensor
MOQ:
1set
Port:
Shanghai Port
Highlight:

304SST Housing Compact Pressure Sensor

,

IP65 Compact Pressure Sensor

,

Air Conditioner Compressor Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with foam protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Set/Sets per Week
Product Description

4-20ma 0.5-4.5V Small Compact Pressure Sensor For Air Conditioner Compressor



Air Conditioner Compressor pressure sensor



Product Spec
WNK80MA Gauge/Absolute/Sealing Pressure Transmitter

Applicable media
Liquid, Gas
Pressure range
0-20kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parker joint, customization
Mechanical connection
G1/4, 1/8NPT,M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65






4 - 20ma 0.5 - 4.5V Compact Pressure Sensor For Air Conditioner Compressor 04 - 20ma 0.5 - 4.5V Compact Pressure Sensor For Air Conditioner Compressor 1
Ordering sheet
4 - 20ma 0.5 - 4.5V Compact Pressure Sensor For Air Conditioner Compressor 2
4 - 20ma 0.5 - 4.5V Compact Pressure Sensor For Air Conditioner Compressor 4
