60MPa PNP Electronic Pressure Switch For Sanitary Application 1.0A
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK-SPS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $85.00 - $105.00/Pieces |
Packaging Details: | each product in one inner paper box with foam protection |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 2000 Set/Sets per Week |
Detail Information |
|||
Max. Current: | 1.0A | Max. Voltage: | 30V DC |
---|---|---|---|
Max. Working Pressure: | 600bar | Measured Media: | Liquid, Gas And Steam |
Pressure Range: | -100KPa~60MPa | Output Signals: | 4~20mA, 0-5V, 0-10V, RS485 |
Accuracy: | 0.5%F.S | Switching Type: | NO/NC |
Display: | OLED | Protection Class: | IP65 |
Housing Material: | 304SST | Power Supply: | 12-30V DC |
Port: | Shanghai Port | ||
High Light: | 1.0A Electronic Pressure Switch,60MPa Electric Pressure Switch,PNP Electronic Pressure Switch |
Product Description

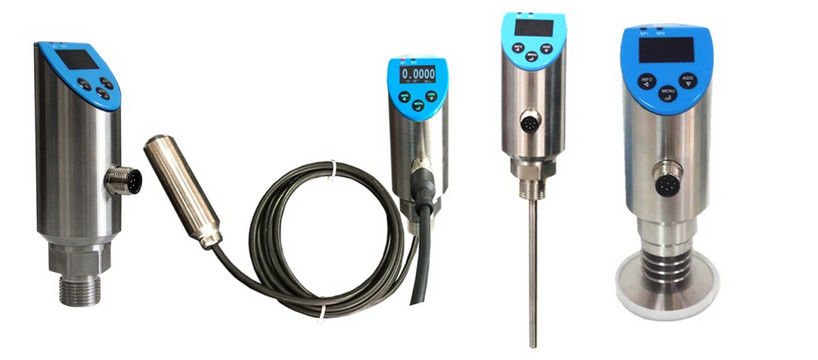

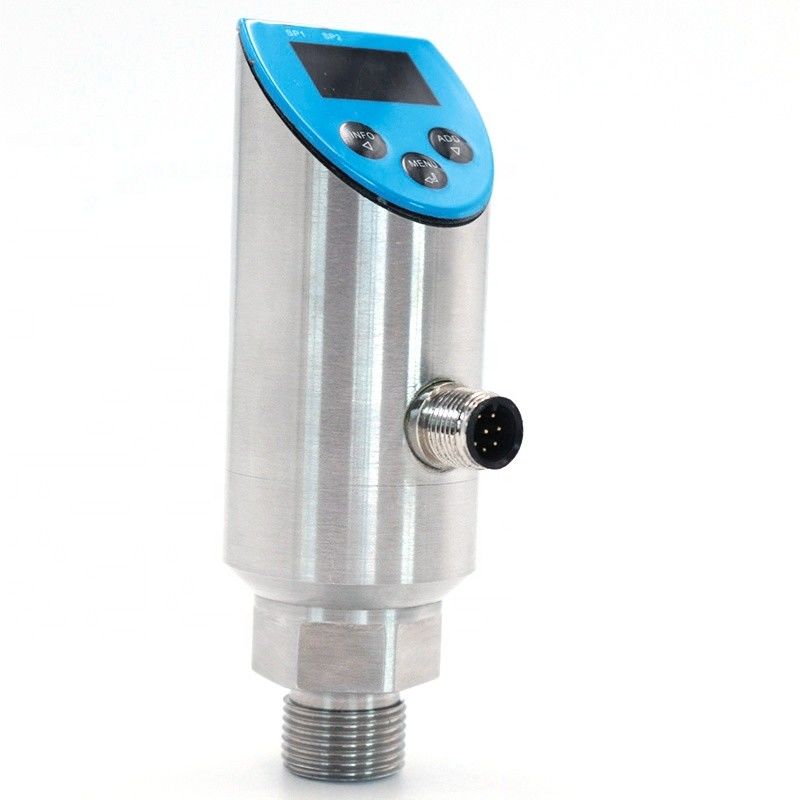

Pressure Control Electronic Pressure Switch For Sanitary Application
4~20mA 0-5V Electronic Pressure Switch
SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
Applications
pump control,
storage tank monitor,
liquid level control,
filter blocking and monitor,
leakage surveillance.
Feautures
- Programmable automatic control design
- OLED with back-light display
- Display 180°turnable
- Displaying pressure peak value and environment temperature
- Body 330°rotable
- Industrial touch-sensitive button
- Switch points settable
- PNP/NPN +4~20mA/0-5V output
- Support MODBUS
- Pressure, level and temperature switch
- OEM & Customizable
Dimension
Ordering Code
