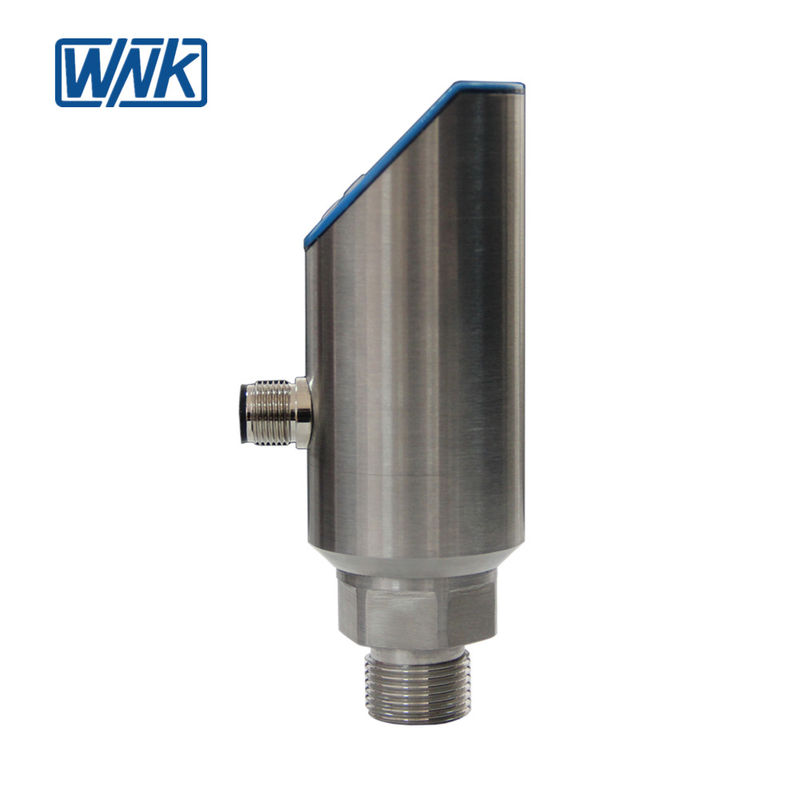

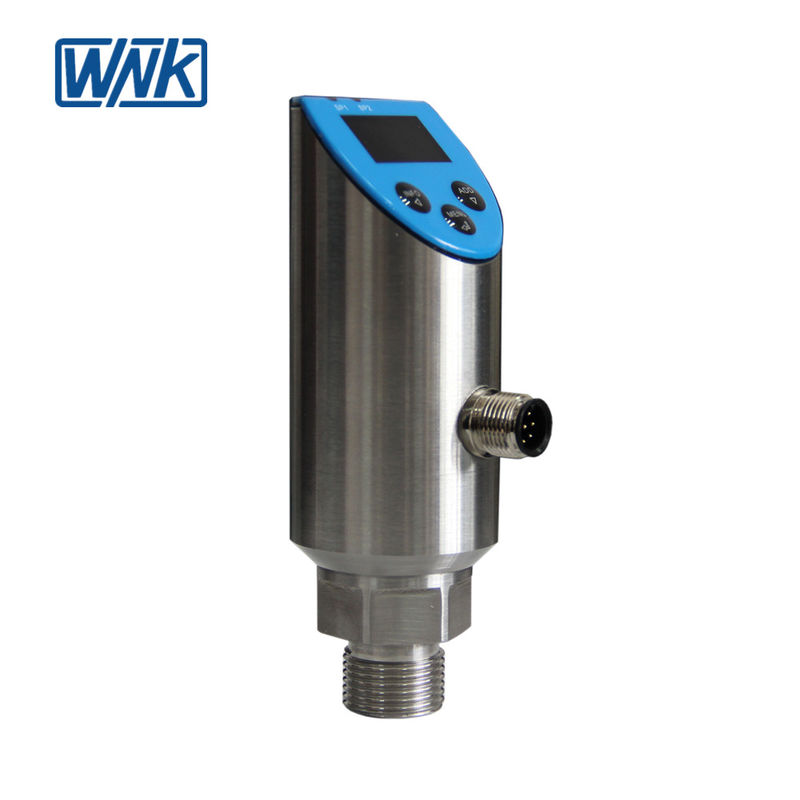

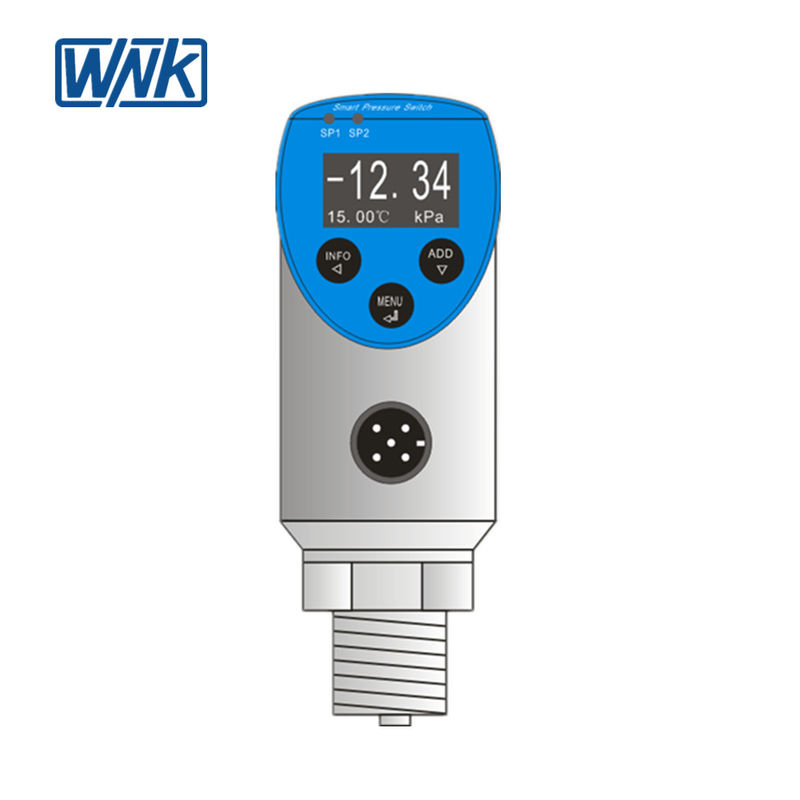

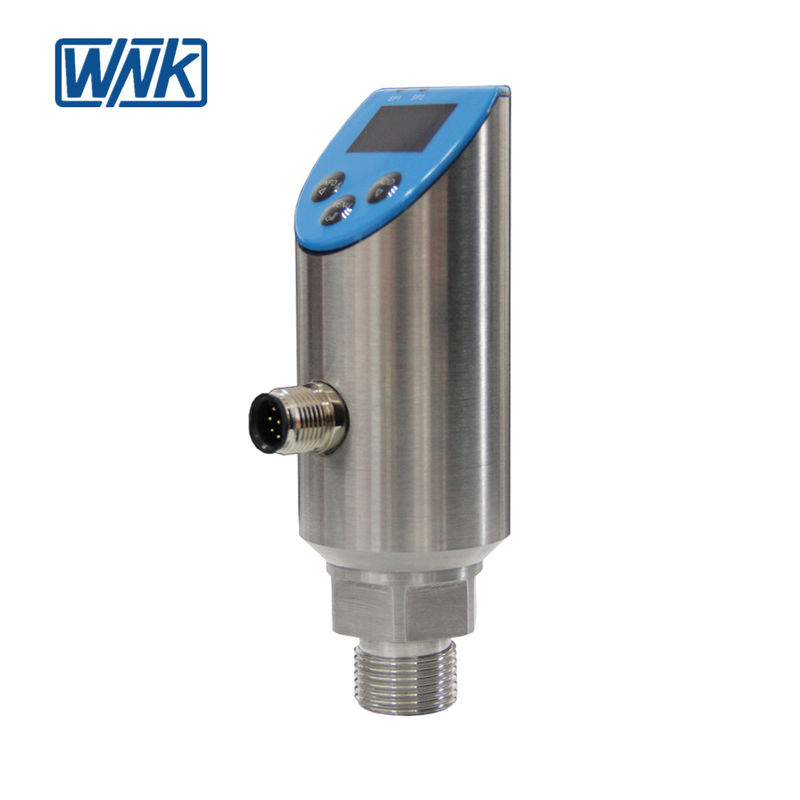

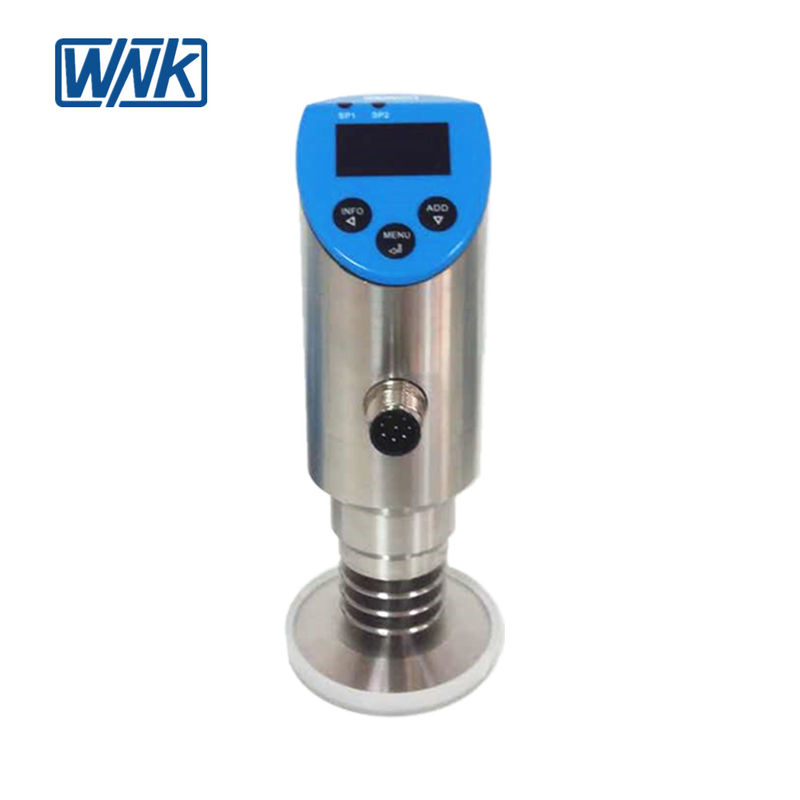

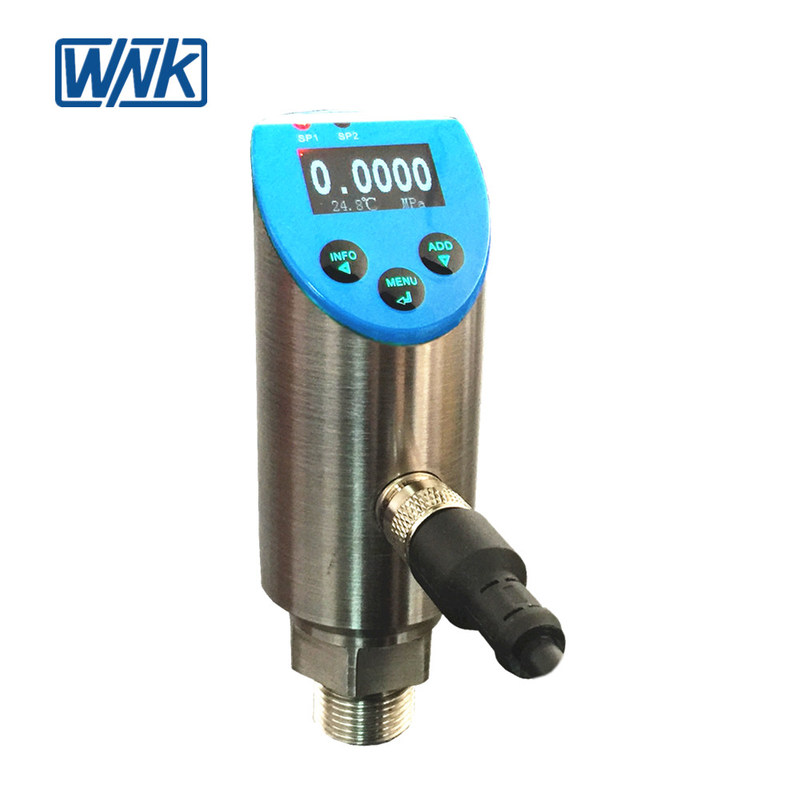

4~20ma Intelligent Pressure Switch , Digital PNP Air Water Pressure Controller
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | SPS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $85.00 - $105.00/Pieces |
Packaging Details: | paper carton or as per clients' requirement |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 2000 Piece/Pieces per Month digital water pressure controller |
Detail Information |
|||
Accuracy: | ≤0.5%FS | Output: | 0/4...20mA, 20...4/0mA, 0...5/10V, 5/10...0V |
---|---|---|---|
Measuring Range: | 0.1...0.1MPa To 60MPa | Housing Material: | SS316 |
Protection Class: | IP65 | OEM Service: | OEM, ODM, Customization Available |
Display: | OLED | Transmitter Type: | Piezoresistive Pressure Sensor |
Long-term Stability: | ±0.3%FS/year | Application: | Oil&gas, Petrol, Petrochemical, Chemical Industry |
Port: | Shanghai, Ningbo, Shenzhen Etc | ||
High Light: | 4 20ma Intelligent Pressure Switch,Digital 4 20ma pressure sensor,PNP Air Water Pressure Controller |
Product Description
Digital PNP Air Water Pressure Controller with 4~20ma Output, Switching Point Settable
SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
>> Main Features |
- Programmable automatic control design
- OLED with back-light display
- Display 180°turnable
- Displaying pressure peak value and environment temperature
- Body 330°rotable
- Industrial touch-sensitive button
- Switch points settable
- PNP/NPN +4~20mA/0-5V output
- Support MODBUS
- Pressure, level and temperature switch
- OEM & Customizable
>> Dimensions |
>> Our projects photoes |
Profibus-Pa transmitters projects
>> Certifications |
>> Exhibitions |
1. Lifelong service
Hefei WNK offers lifelong service for our products.
2. Warranty
Warranty of transmitters offered by WNK is 12 months after shipment.
3. Maintenance service
Service response time of customer in Hefei city ≤2hours after received customer repairing notice; service response time of customer in other cities of China≤12hours; service response time of overseas customers ≤24hours.
4. Spare parts and replacement
WNK pays much attention to generality and interchangeability at products design stage. Each transmitter has a sound technical file and tracking number, considerable spare parts are stocked in our factory, so as ensured timely and efficient maintenance.
Q: Are you manufacturer or trading company?
A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.
Q: What’s your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.
Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
