Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK3000

Payment & Shipping Terms:

Price: $86.00/Pieces 1-99 Pieces
Packaging Details: Neutral carton box packing
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Type: Air Flow Sensor, Ventilator Flow Sensor Flow Range: 0-20,50,100,200SLM
Accuracy: 1.5% Calibration: Air,N2,O2
Repeatability: ±1 Output: I2C
Working Temperature: 0~50℃ Working Pressure: 0.7-1.3Bar
Power Supply: 5V Application: Medical, Process Automation, Burner Control, Fuel Cell Control
High Light:

I2C Output Air Flow Meter Sensor

,

O2 CO2 Flow Meter Sensor

,

I2C Output co2 flow sensor

Product Description

In Stock I2C Output Air Flow Sensor / O2 CO2 Flow Sensor

WNK3000 is specially designed for ventilator applications. It measures the flow of air, oxygen and other non-aggressive gases with superb accuracy. The special design in the air duct makes the pressure loss of the flow body passing through the sensor very low, making its performance suitable for various demanding application scenarios, such as medical ventilation and respiratory applications. WNK3000 works with 5V power supply voltage and has a digital I2C interface. The output value is internally calibrated and temperature compensated.It is connected by a thermal sensor chip and a high-performance integrated 24-bit AD acquisition CMOSCMOS microprocessor connection manager. The gas flow is measured by the thermal sensor chip, which ensures a very fast signal processing time and has the best accuracy compared with similar products and has a Bidirectional measurement function.
Application Range:Medical, process automation, burner control, fuel cell control, spectroscopy, environmental monitoring, laboratory.
Product Features
 Low pressure loss
 Flow range: ± 200slm (bidirectional)
 Accuracy 1.5% reading (typical value)
 Quick response
 Full calibration and temperature compensation
 Zero drift

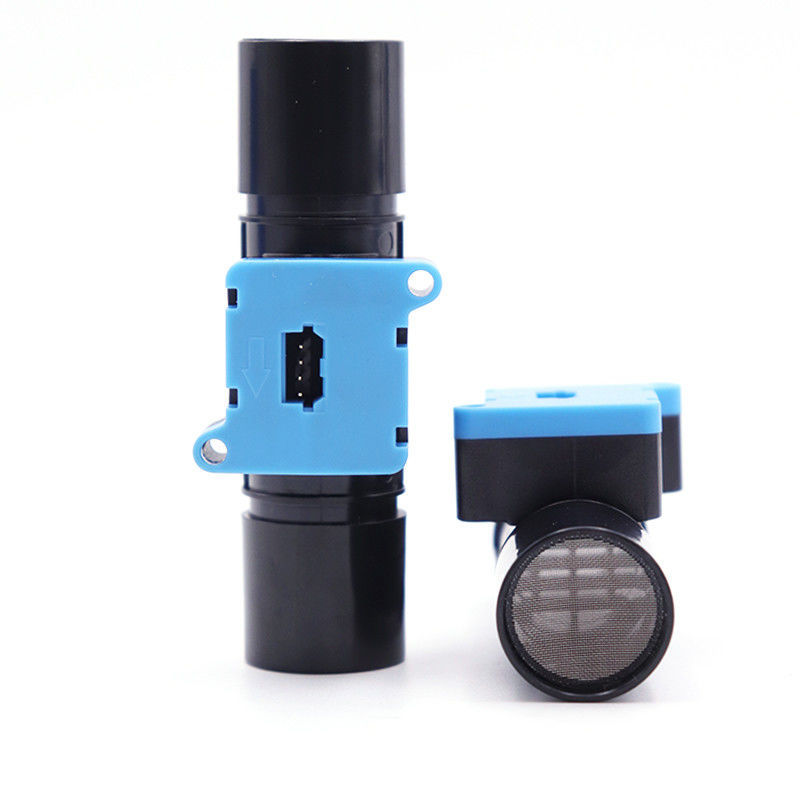

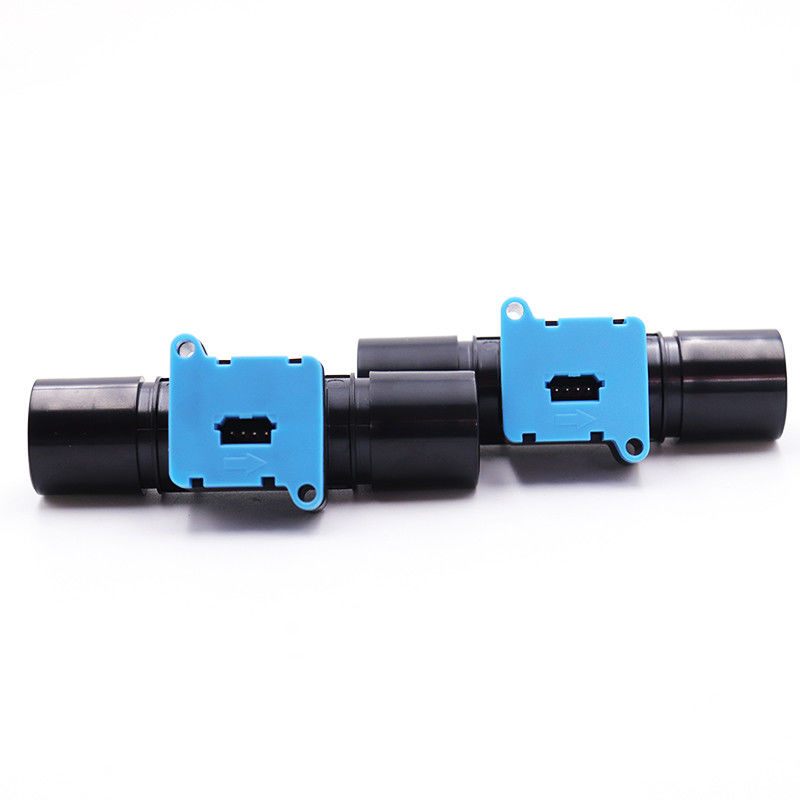

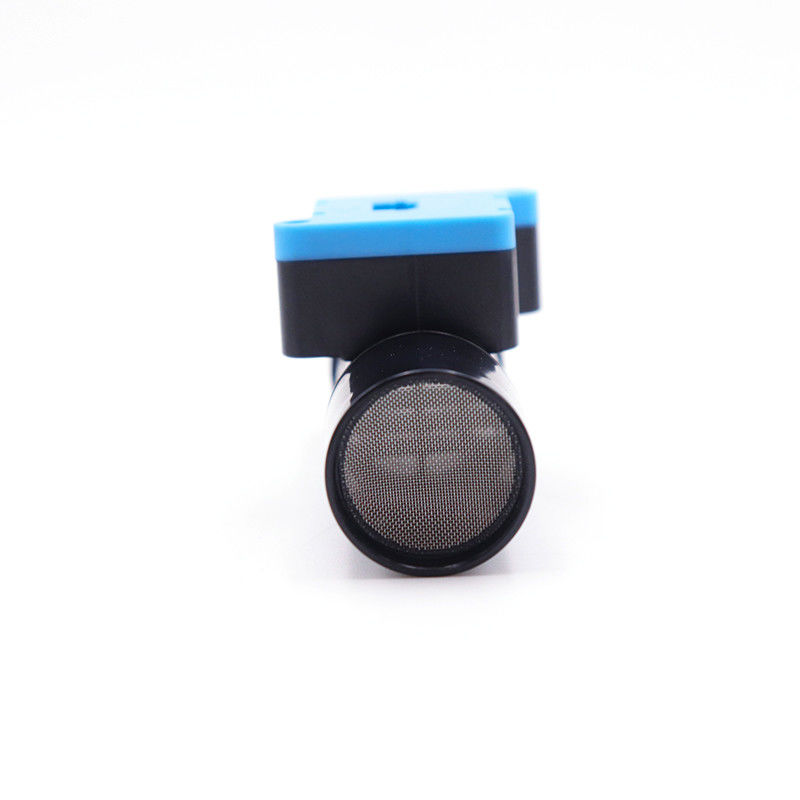

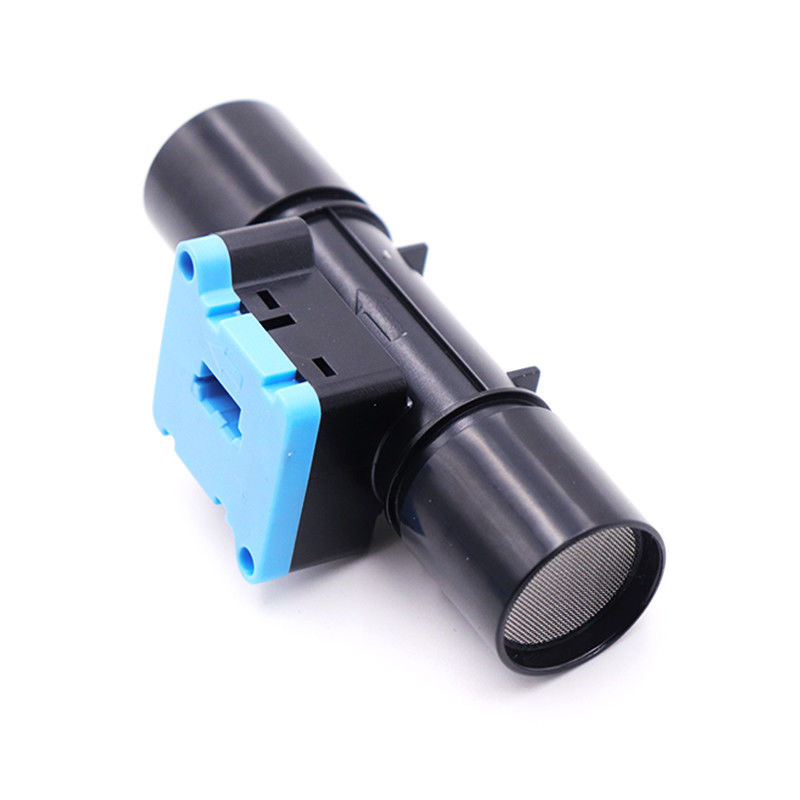

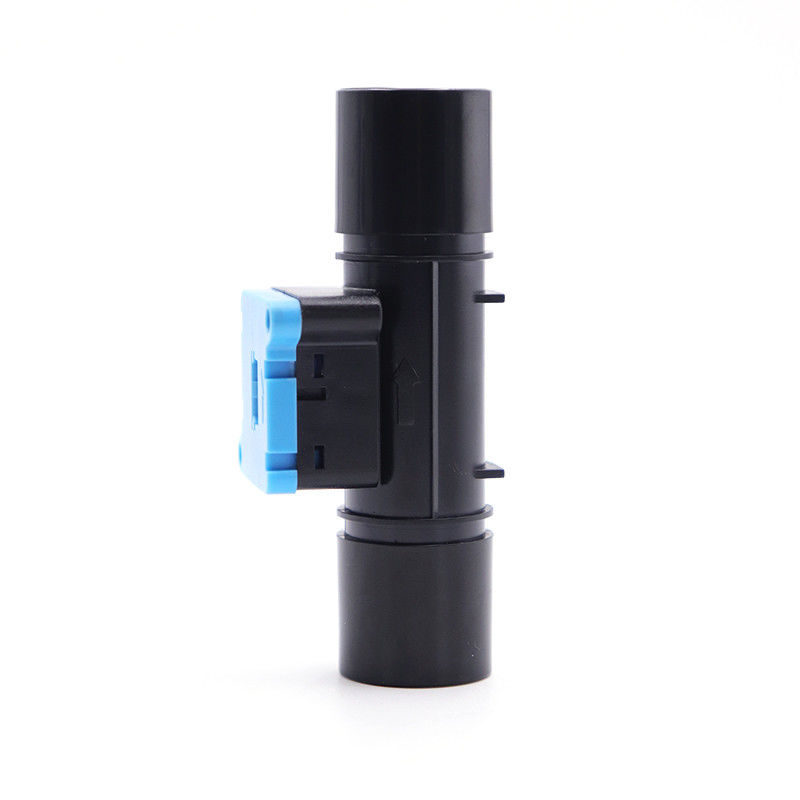

Product Show
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 0
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 2
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 4
Product Parameters
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 6
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 8
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 10
Mechanical Dimension
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 12
Our Company
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 14
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 16
I2C Output Air Flow Meter Sensor Low pressure loss for O2 CO2 18
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory
address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we
also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For
more goods we can arrange by air or by Sea.
