CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor

CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK3000

Payment & Shipping Terms:

Price: $88.00/Pieces 1-99 Pieces
Packaging Details: standard export corrugate carton with foam protection inside
Supply Ability: 1000 Piece/Pieces per Day
Get Best Price Contact Now

Detail Information

Type: Ventilator Flow Sensor Range: 0-20,50,100,200SLM
Accuracy: ±2.5 Repeatability: ±1
Power Supply: 5V Output: I2C
Calibration: Air,N2,O2 Weight: 25g
Keywords: Air Velocity Sensor/ventilator Flow Sensor Work Temperature: 0-50C
Work Pressure: 0.7-1.3bar Port: Shanghai, Ningbo, Shenzhen Etc
High Light:

CPAP Ventilator Flow Meter Sensor

,

CPAP Ventilator Medical Air Flow Sensor

,

4.5V Medical Air Flow Sensor

Product Description



WNK3000 is specially designed for ventilator applications. It measures the flow of air, oxygen and other non-aggressive gases with superb accuracy. The special design in the air duct makes the pressure loss of
the flow body passing through the sensor very low, making its performance suitable for various demanding application scenarios, such as medical ventilation and respiratory applications.WNK3000 works with 5V power supply voltage and has
a digital I2C interface. The output value is internally calibrated and temperature compensated. It is connected by a thermal sensor chip and a high-performance integrated 24-bit AD acquisition
CMOSCMOS microprocessor connection manager.



Product Show

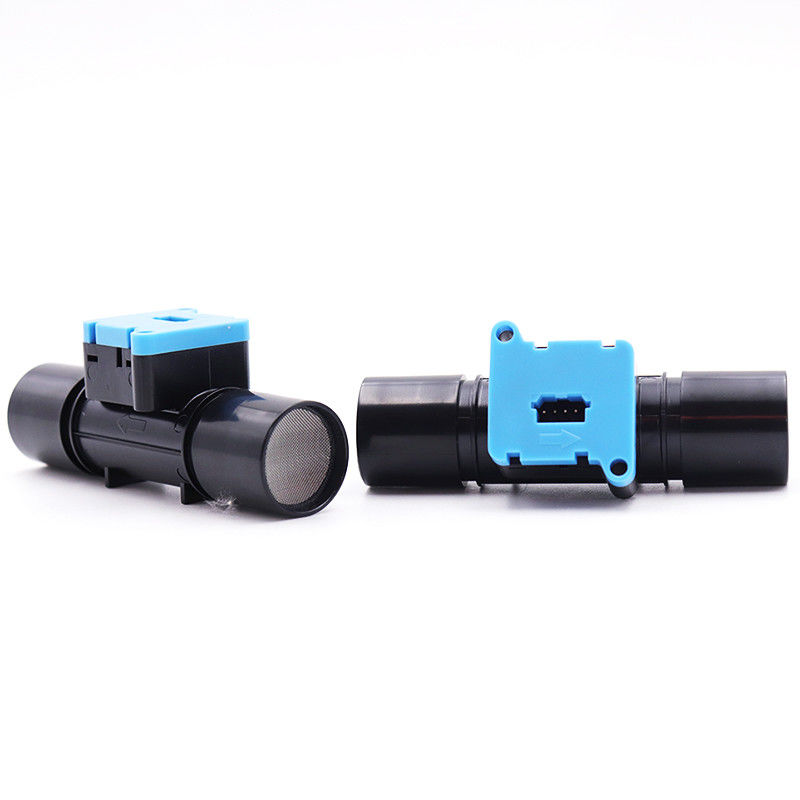

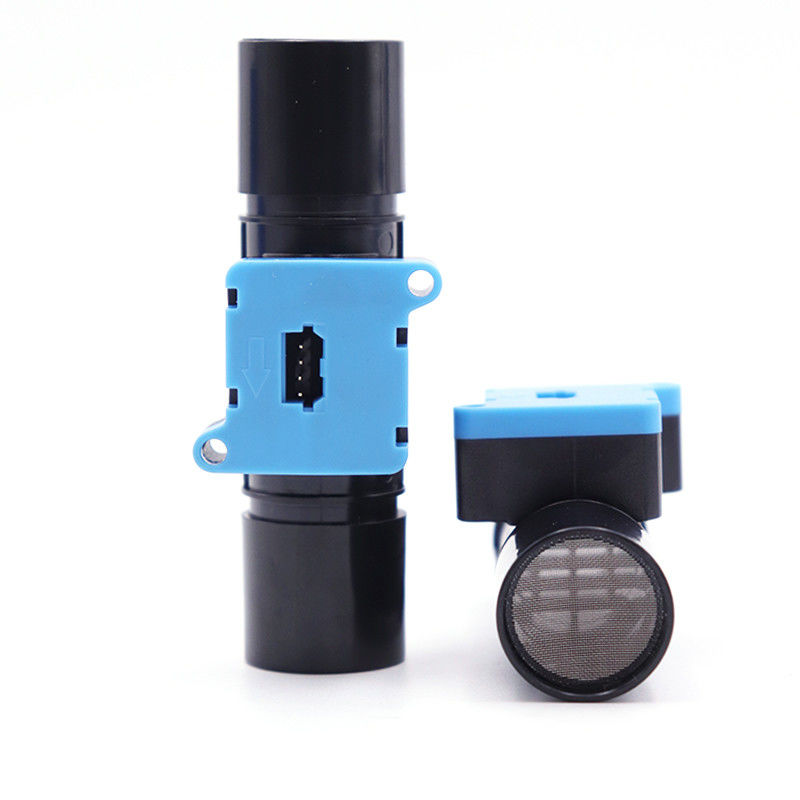

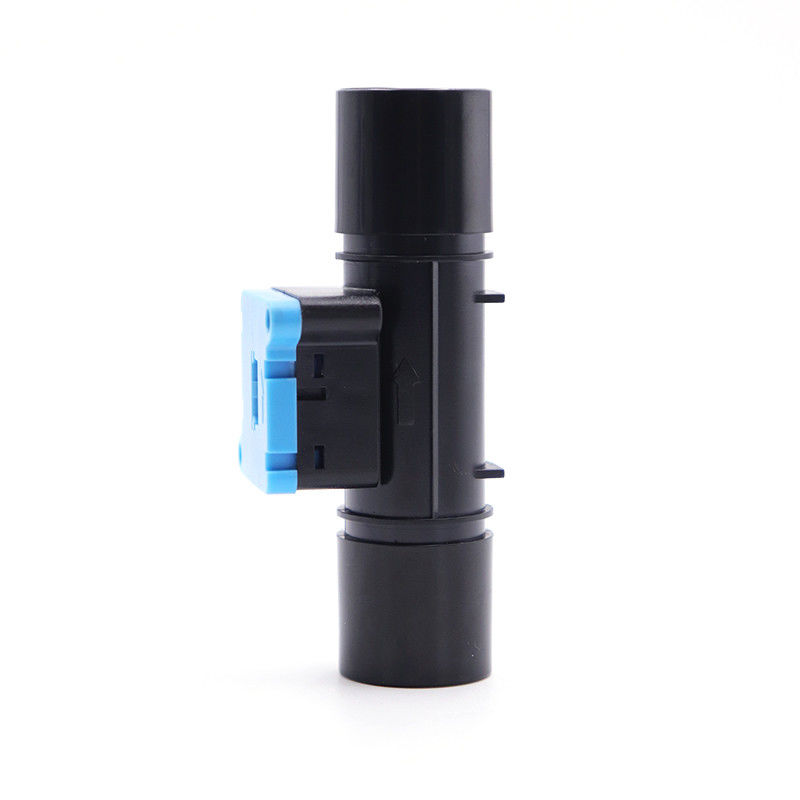

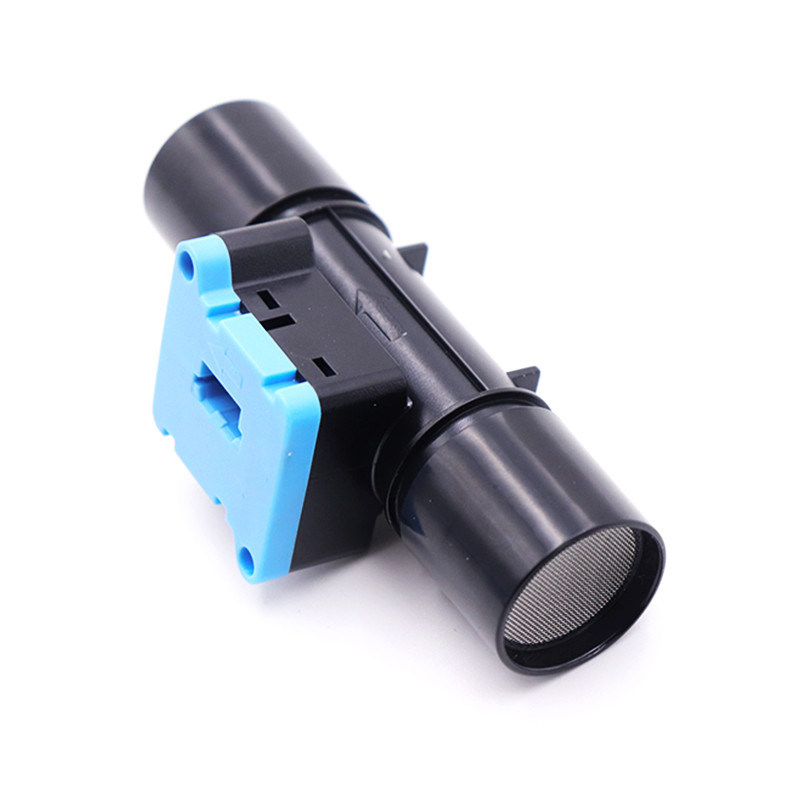

 CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 0CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 2CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 4

CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 6

CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 8





Spec

 CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 10



CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 12



Company Information

CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 15

CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 17


CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 20

CPAP Ventilator Flow Meter Sensor , 0.5-4.5V Medical Air Flow Sensor 22



FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
