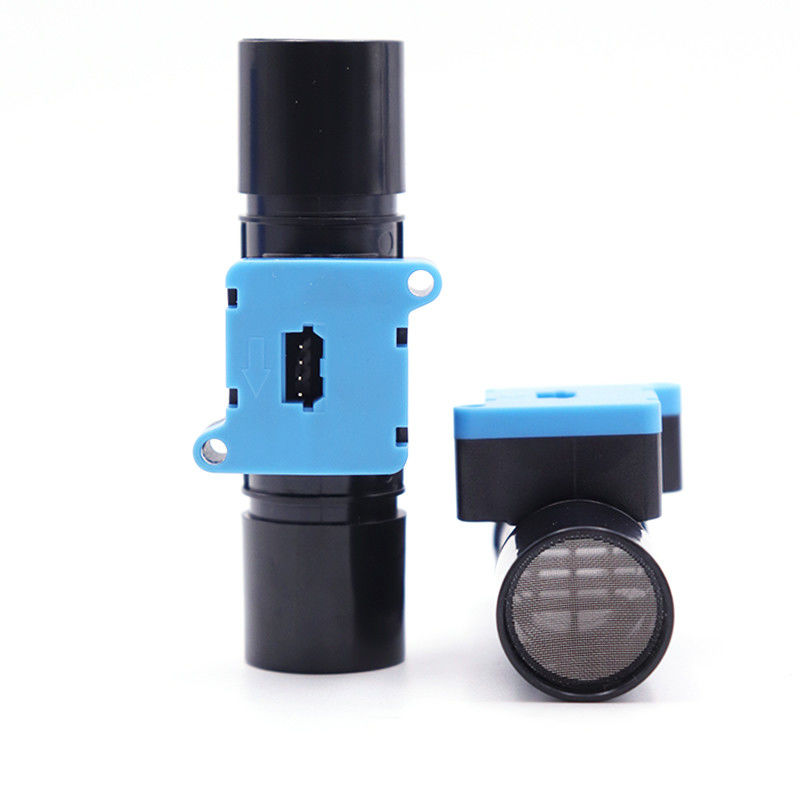

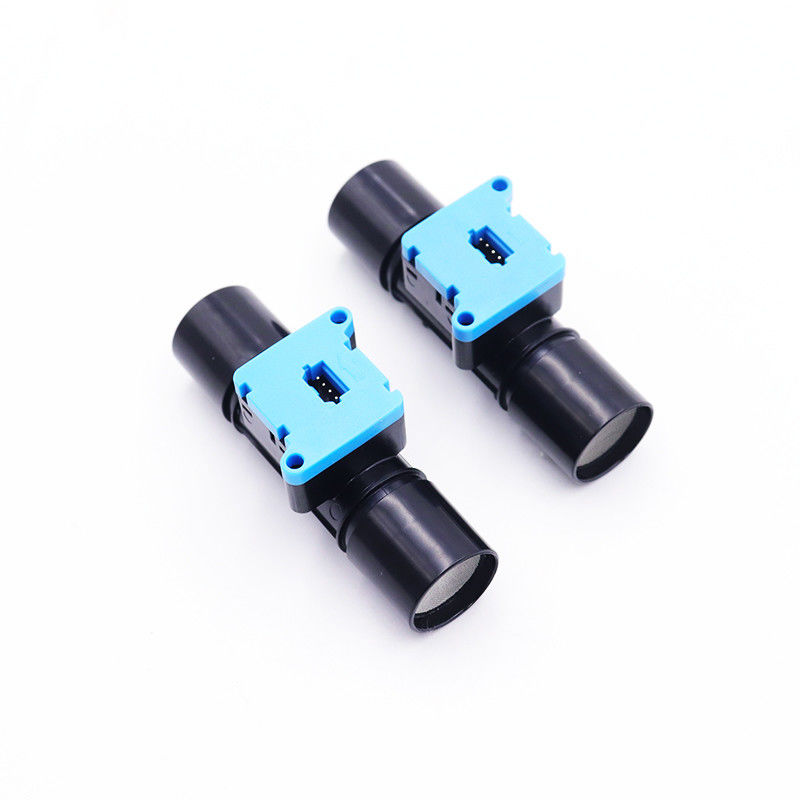

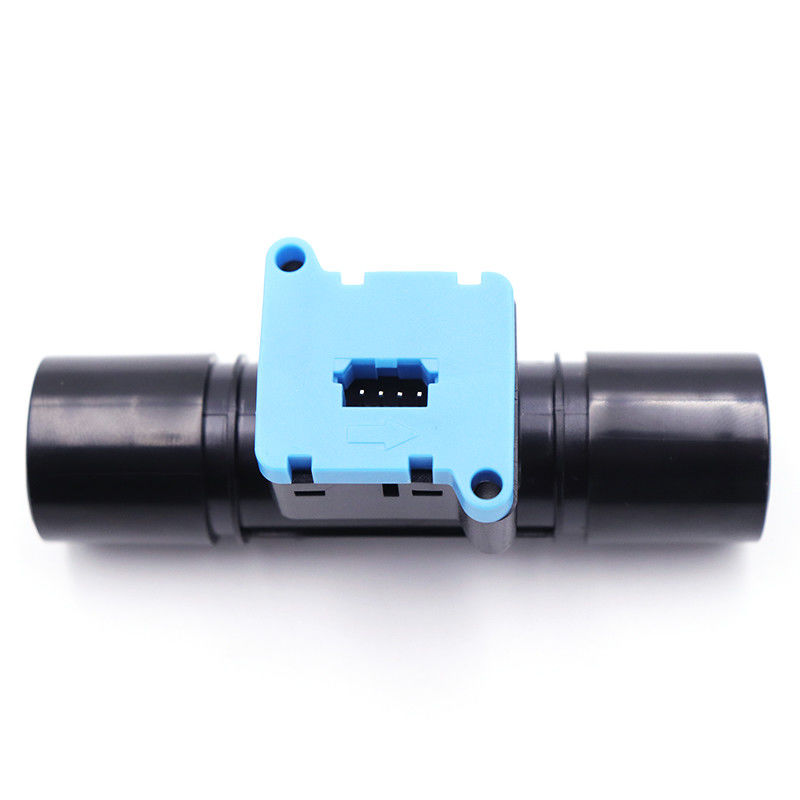

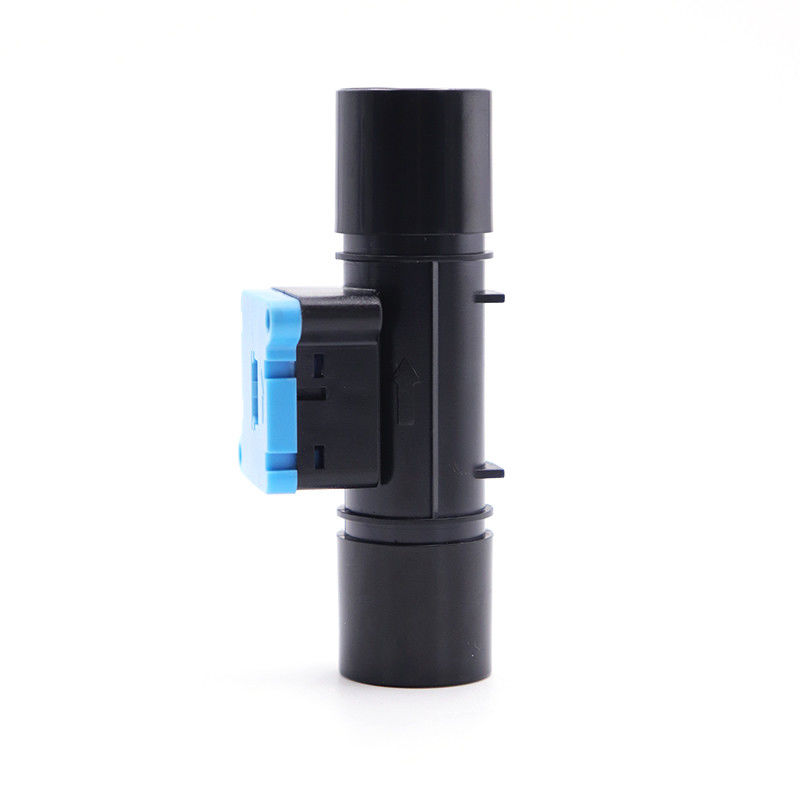

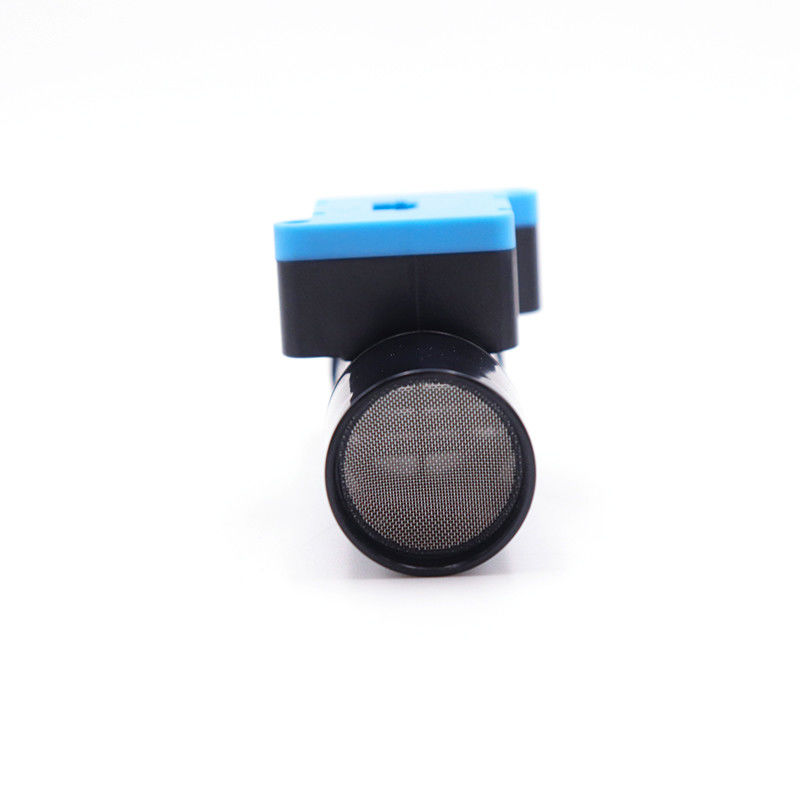

WNK 5V Flow Meter Sensor , Micro Air Flow Sensor for ventilator

WNK 5V Flow Meter Sensor , Micro Air Flow Sensor for ventilator

5V Flow Meter Sensor

WNK Micro Air Flow Sensor

Ventilator Micro Air Flow Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK3000

Contact Us
Request A Quote
Product Details
Type:
Ventilator Flow Sensor
Range:
0-20,50,100,200SLM
Accuracy:
±2.5
Repeatability:
±1
Power Supply:
5V
Output:
I2C
Calibration:
Air,N2,O2
Weight:
25g
Keywords:
Air Velocity Sensor/ventilator Flow Sensor
Work Temperature:
0-50C
Work Pressure:
0.7-1.3bar
Port:
Shanghai, Ningbo, Shenzhen Etc
Highlight:

5V Flow Meter Sensor

,

WNK Micro Air Flow Sensor

,

Ventilator Micro Air Flow Sensor

Payment & Shipping Terms
Price
$88.00/Pieces 1-99 Pieces
Supply Ability
1000 Piece/Pieces per Day
Product Description

Quick Reply Micro Flow Sensor WNK3000 0-200SLM

WNK3000 is specially designed for ventilator applications. It measures the flow of air, oxygen and other non-aggressive gases with superb accuracy. The special design in the air duct makes the pressure loss of
the flow body passing through the sensor very low, making its performance suitable for various demanding application scenarios, such as medical ventilation and respiratory applications.WNK3000 works with 5V power supply voltage and has
a digital I2C interface. The output value is internally calibrated and temperature compensated. It is connected by a thermal sensor chip and a high-performance integrated 24-bit AD acquisition
CMOSCMOS microprocessor connection manager.



Product Show

 WNK 5V Flow Meter Sensor , Micro Air Flow Sensor for ventilator 0

WNK 5V Flow Meter Sensor , Micro Air Flow Sensor for ventilator 2

WNK 5V Flow Meter Sensor , Micro Air Flow Sensor for ventilator 4





Spec

 WNK 5V Flow Meter Sensor , Micro Air Flow Sensor for ventilator 6



WNK 5V Flow Meter Sensor , Micro Air Flow Sensor for ventilator 8
