Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WD19

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $12.00 - $22.00/Pieces
Packaging Details: 100 pcs per master carton;
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000 Piece/Pieces per Month 4-20mA pressure sensor
Get Best Price Contact Now

Detail Information

Accuracy: 0.1%, 0.25%, 0.5%, 1.0% Output Signal: 4-20mA, 0-20mA, 0-10mA, 0-20V, 1-5V
Power Supply: 24VDC 12VDC 5VDC 12-36VDC Range: -100Kpa ~ 60 MPa
Approval: Ex-proof, ISO9001-2015 Operating Temperature: -20 To 85 ℃
Media: Liquid, Gas, Steam IP Rating: IP65, IP67, IP68
Product Name: 0.5-4.5VDC 4-20mA SPI I2C Piezoresistive Silicon Pressure Sensor Keyword: 4-20mA Pressure Sensor
Port: Shanghai/Ningbo
High Light:

Piezoresistive Silicon Miniature Pressure Sensors

,

I2C Miniature Pressure Sensors

,

0.5VDC piezoresistive silicon pressure sensor

Product Description

 0.5-4.5VDC 4-20mA SPI I2C Piezoresistive Silicon Pressure Sensor

          0.5-4.5VDC, 4~20mA SPI, I2C Piezoresistive Silicon Pressure Sensor

WD19 Digital I2C/SPI Output Pressure Sensor

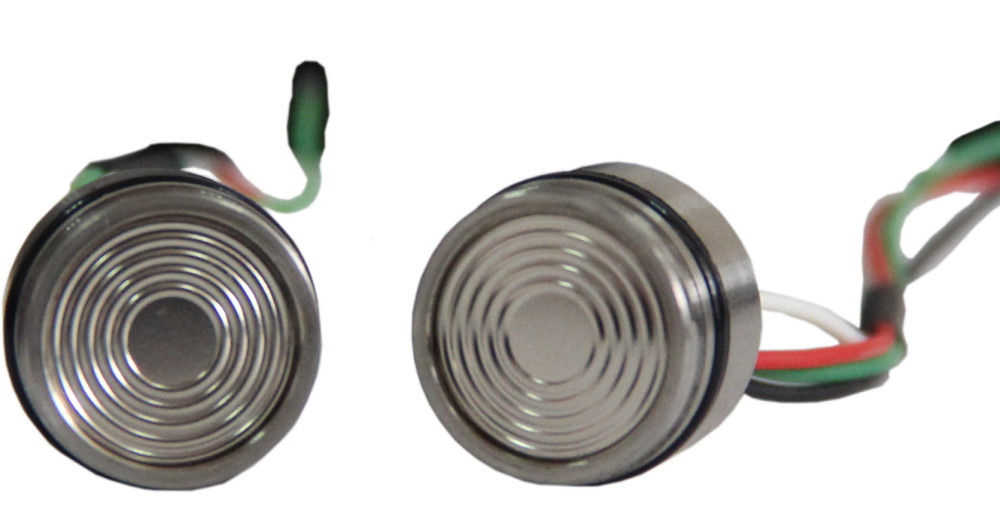

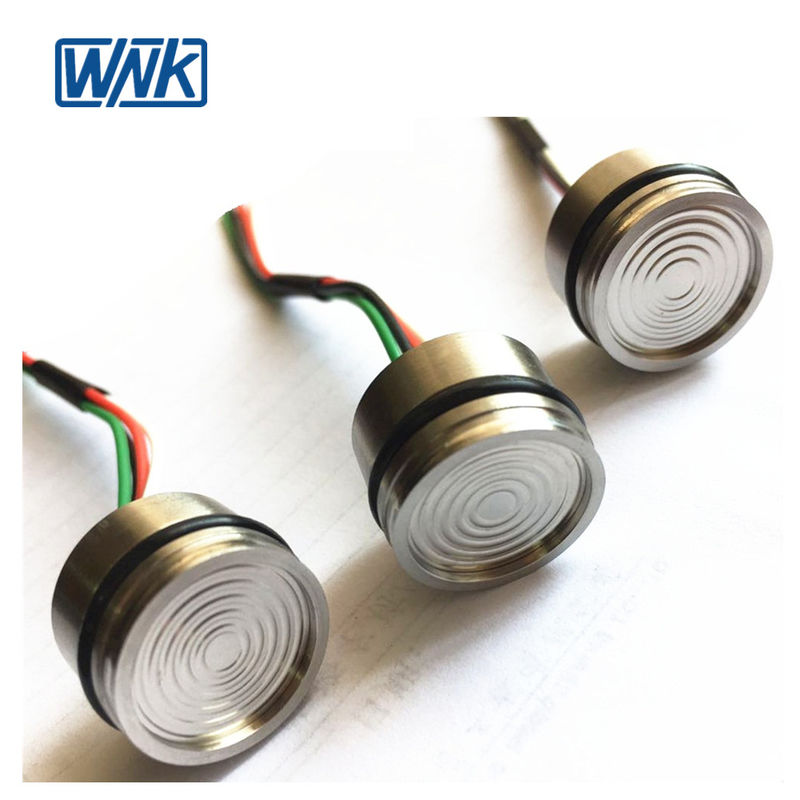

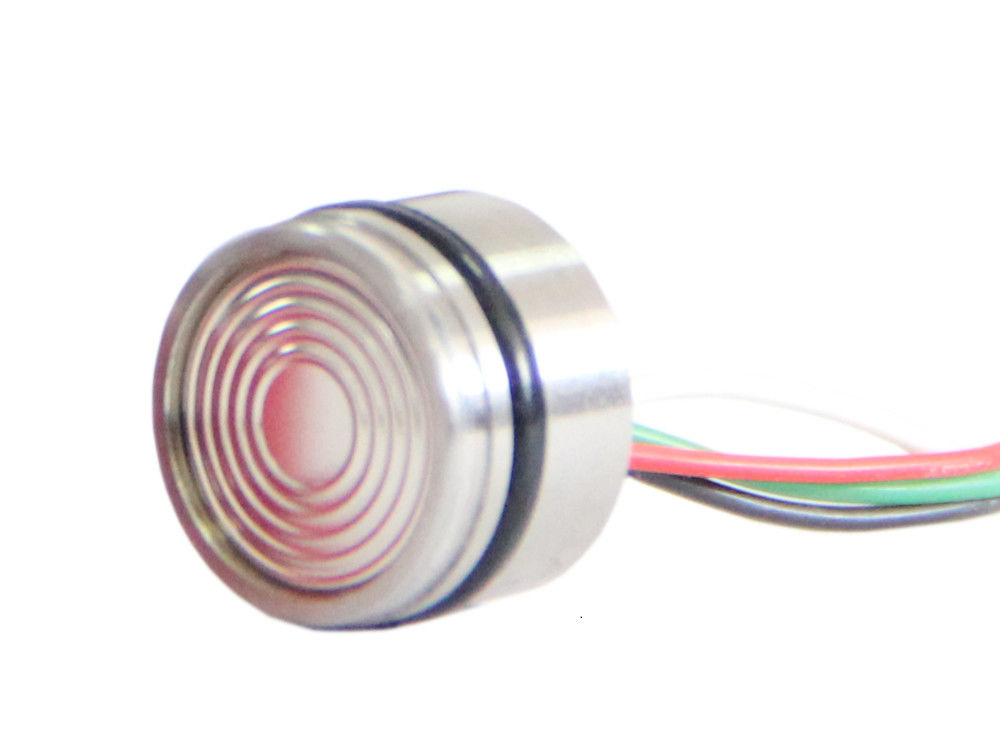

D19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.



Features

High stability and high accuracy
Low cost OEM
Suited for pressure range: 0-40Kpa…7Mpa
Wide temperature compensation range: total error<1%
Measurable of corrosive media ( media compatible with 316L)
Standard mounting size
Communication: I²C or SPI





Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 0Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 2Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 4Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 6

Specifications



 Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 8

Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 10





WNK Pressure Sensor Series


WA19 Diezoresistive Silicon Oil Filled Analog Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor

Hot Product



Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 12





Company Information

Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 14Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 16Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 18Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 20Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 22Piezoresistive Silicon Miniature Pressure Sensors SPI I2C  0.5-4.5VDC 24




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
