Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | W19 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 Pieces |
---|---|
Price: | $12.00/Pieces >=10 Pieces |
Packaging Details: | paper carton or as client's requirement |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 10000 Piece/Pieces per Month 4-20ma Pressure Sensor |
Detail Information |
|||
Warranty: | 1 Year | Customized Support: | OEM, ODM |
---|---|---|---|
Output Signal: | 0.5-4.5V, I2C, SPI, 4~20mA, 1-5V, 0-10V | Accuracy: | 0.2%FS, 0.5%FS, 1%FS |
Pressure Range: | 0~60MPa | Application: | Pressure Measurement Of Gas, Vapor Or Liquid In Various Areas |
Pressure Type: | GP, AP, Sealing Pressure | Sensor Type: | Piezoresistive Pressure Sensor |
Overload: | 2-3 Times Of Measuring Pressure | Keywords: | 4-20mA Pressure Sensor/water Pressure Sensor |
MOQ: | 1 PC | Port: | Shanghai |
High Light: | Silicone Water Miniature Pressure Sensors,3 Times Overload Miniature Pressure Sensors |
Product Description
4-20mA Smart High Accuracy Silicon Water Pressure Sensor With 0.5-4.5V DC/1-5V/SPI/ I2C

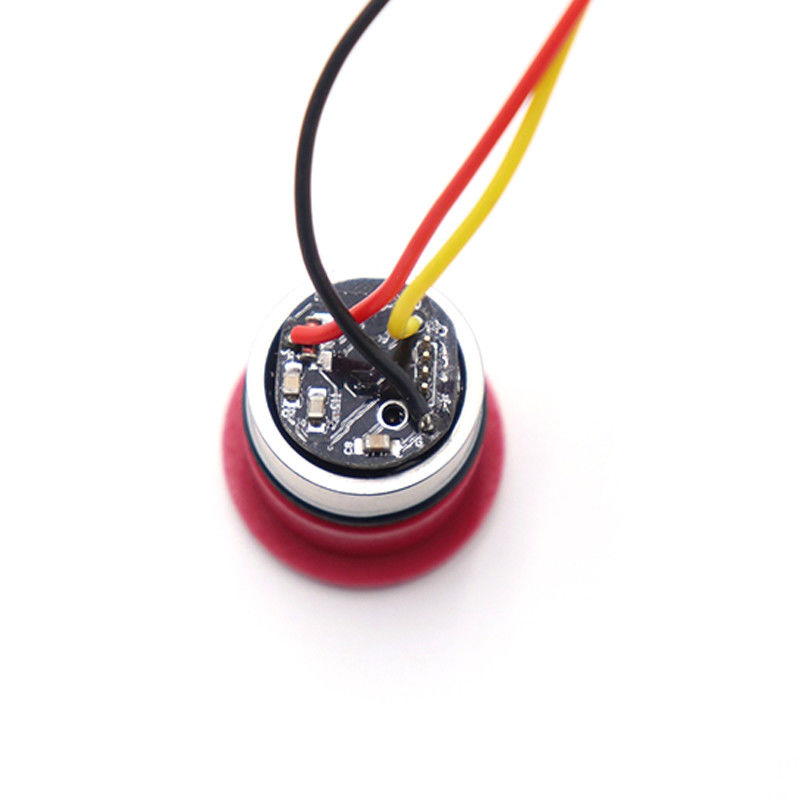

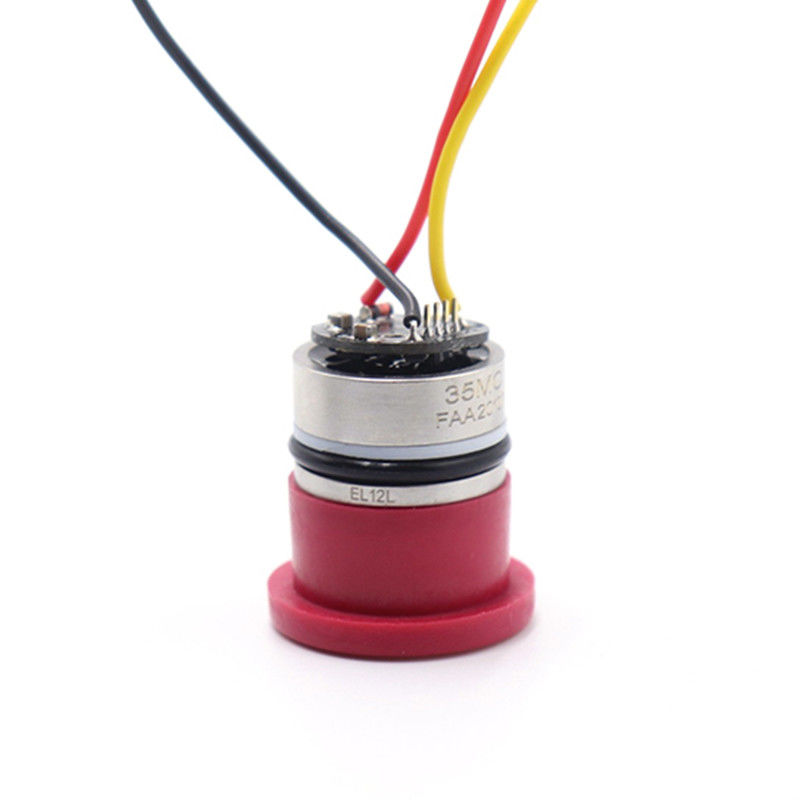

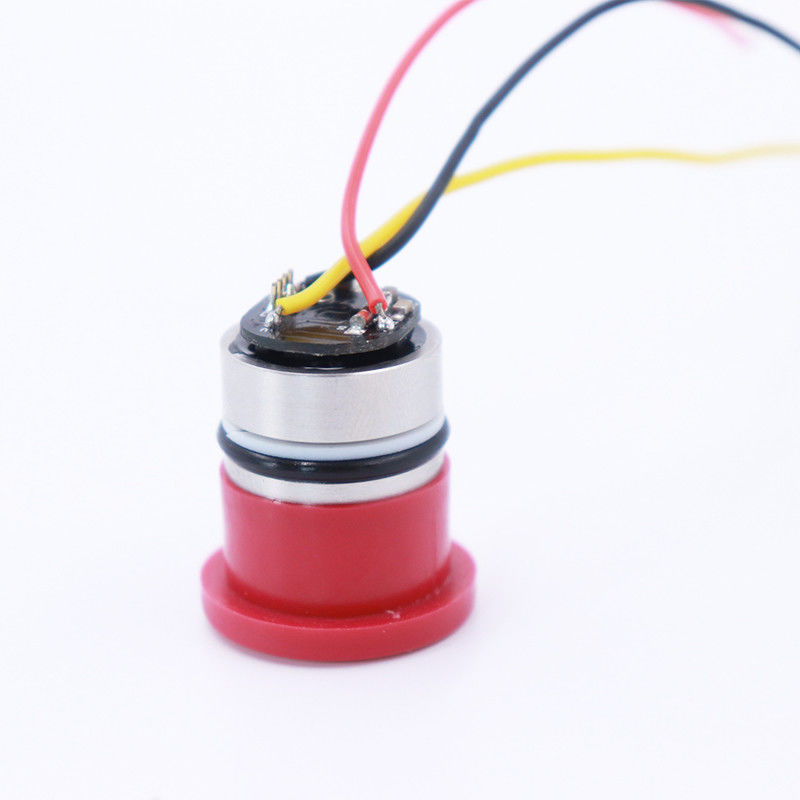

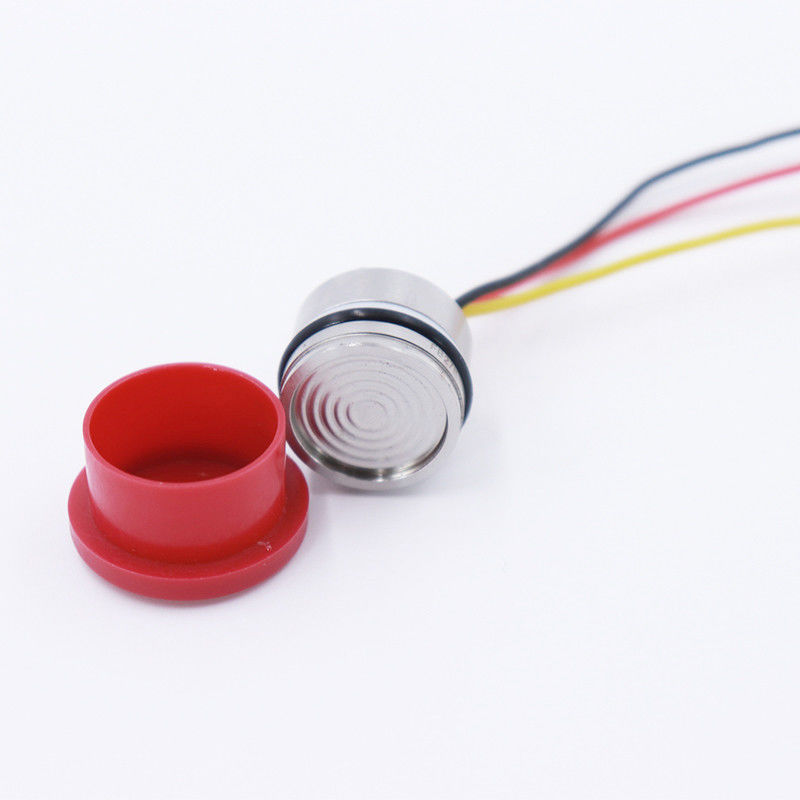

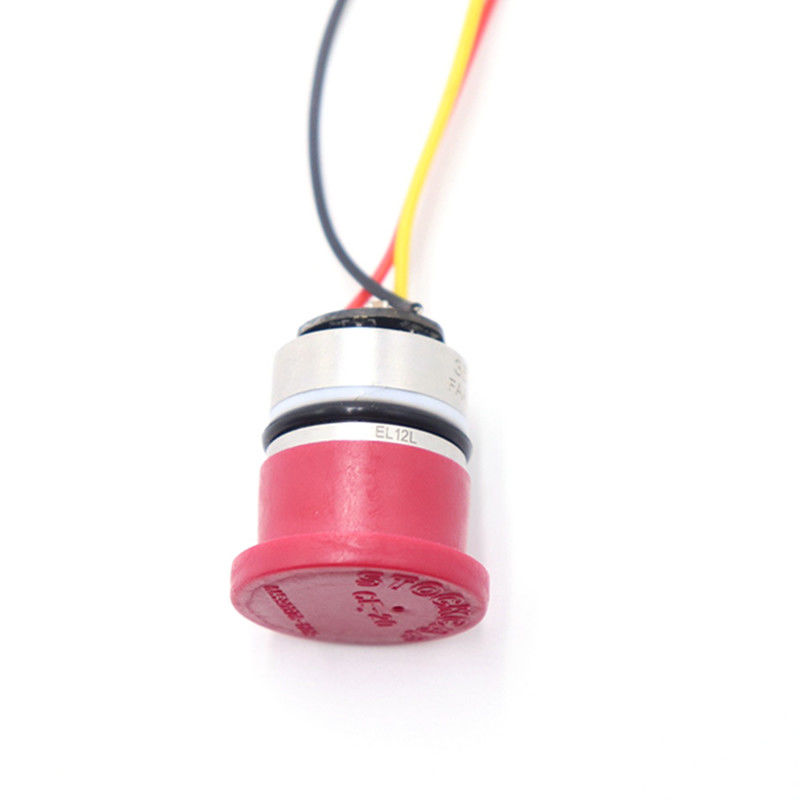

WD19 series is a 14-bits digital output pressure sensor, supporting I2C interface protocol. The external pressure is passed to sensitive elements through 316L stainless steel diaphram and internal silicon oil. Thus WD19 sensors can be used to measure all pressure media compatible with 316L stainless steel.
The series sensor realizes pressure and temperature calibration and compensation via a specially customized integrated circuit. It outputs 10%-90% digital signal as well as digital output of temperature signal.
>> Main Features |
1. High stability and high accuracy of 0.2%FS, 0.5%FS
2. Low cost OEM
3. Suited for pressure range: -100KPa~60MPa
4. Wide temperature compensation range: total error <1%
5. Measurable of corrosive media ( media compatible with 316L)
6. Standard mounting size- diameter 19mm
7. Various outputs: 4~20mA, SPI, I2C, 0.5-4.5V, 0-5V, 1-5V, 0-10V and customization
Application:
1. Pressure measurement of gas, vapor or liquid in various areas;
2. Liquid level, volume or mass measurement;
3. Integrated in a variety of user-defined solutions.
>> Dimensions |
Remark:Ribbon Cable or Connect Pins are optional for all models
Ribbon Cable
Connect Pin
