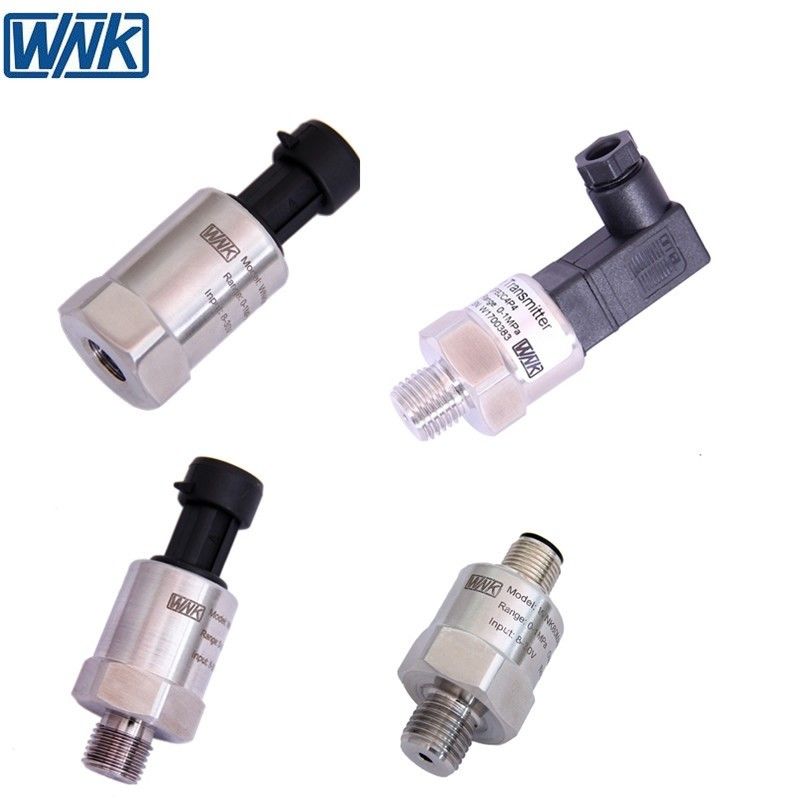

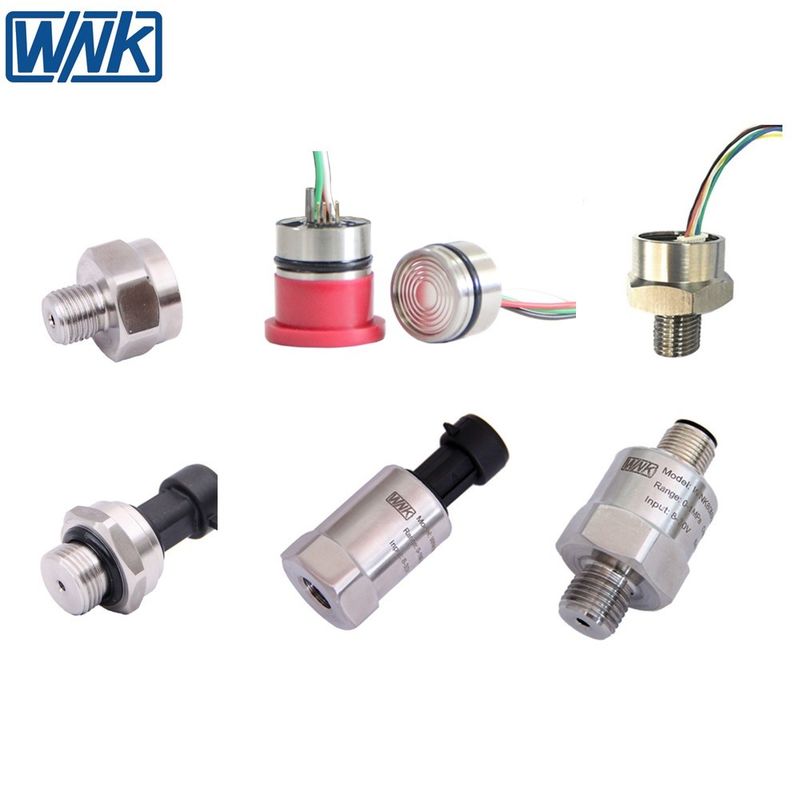

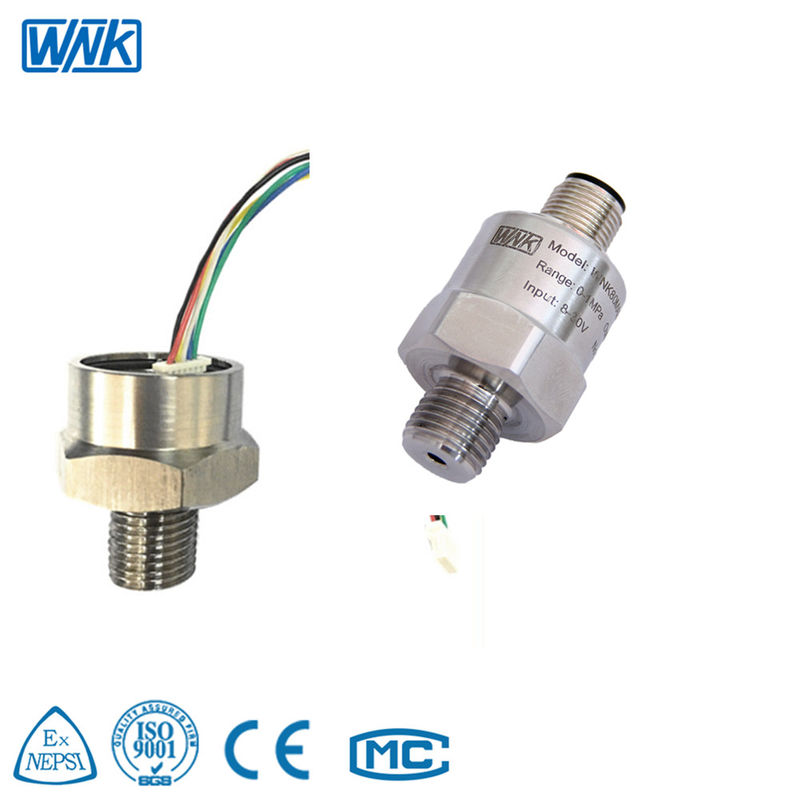

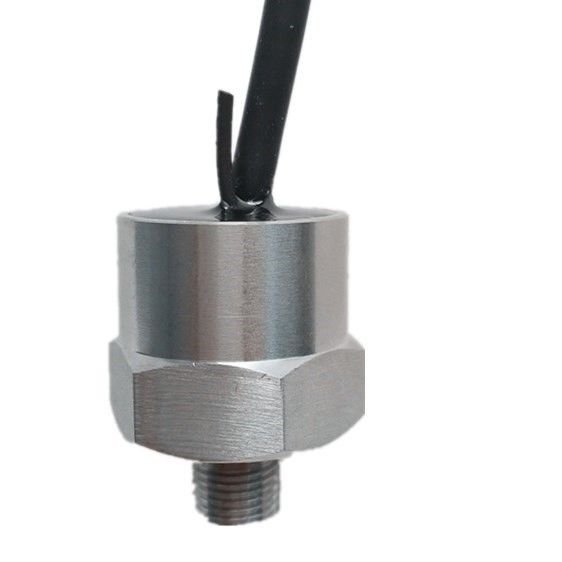

Smart Mems Vacuum Pressure Transducer WNK80mA Ultra Miniature Pressure Transducer
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Certification: | CE, ROHS |
| Model Number: | WNK80mA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $12.00 - $19.00/Pieces |
| Packaging Details: | each product in one inner paper box with foam protection |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 2000 Set/Sets per Week |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Measured Media: | Liquid, Gas And Steam | Output Signals: | 4~20mA, 1-5V, |
| Accuracy: | 0.2%F.S, 0.5%F.S | Pressure Range: | 0~6MPa |
| Protection Class: | IP65 | Housing Material: | 304SST |
| Power Supply: | 24VDC/12VDC/5VDC | Product Name: | Smart Mems 4-20mA Vacuum Pressure Transducer Sensor |
| Keyword: | Mems Pressure Sensor | MOQ: | 1set |
| Port: | Shanghai Port | ||
| High Light: | Smart Mems vacuum pressure transducer,Liquid Gas Vacuum Pressure Transducer,WNK80mA Ultra Miniature Pressure Transducer |
||
Product Description
Smart 4-20mA Vacuum Gauge Pressure Sensor For Liquid Gas And Steam
Smart Mems 4-20mA Vacumm Pressure Transducer Sensor
WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably
Product Spec
|
WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
|
|
|
|
Applicable media
|
Liquid, Gas
|
|
|
Pressure range
|
0-20kPa~350bar
|
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-5V
|
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
|
Power supply
|
24VDC/12VDC/5VDC
|
|
|
Compensation temperature
|
-20~85ºC
|
|
|
Ambient temperature
|
-40~125ºC
|
|
|
Working temperature
|
-40~125ºC
|
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
|
power(electrical) connect
|
Parker joint, customization
|
|
|
Mechanical connection
|
G1/4, 1/8NPT,M12*1.5, customize
|
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
|
Protection
|
IP65
|
|
Ordering sheet
