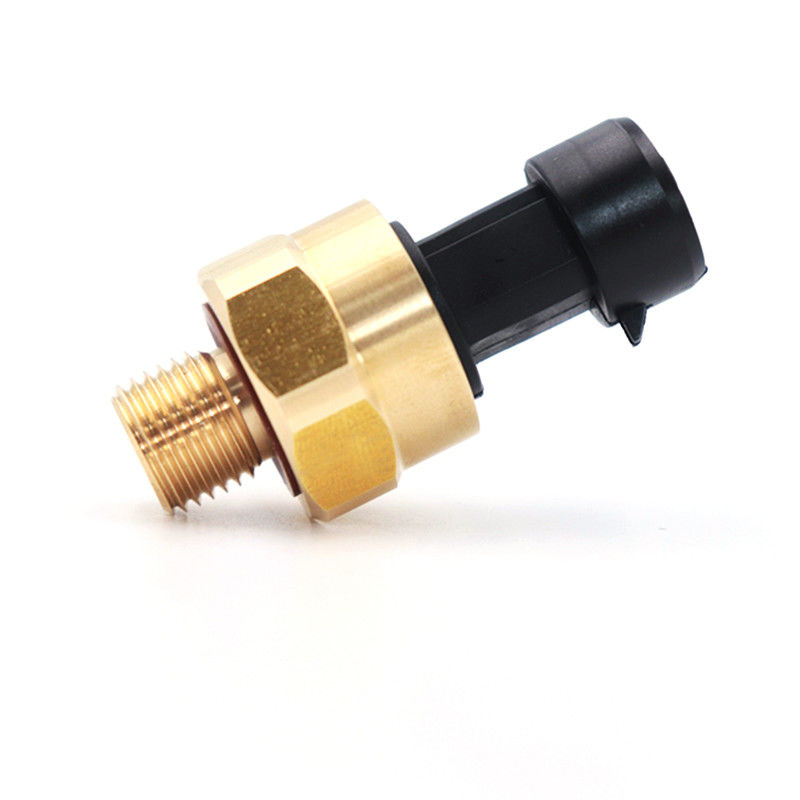

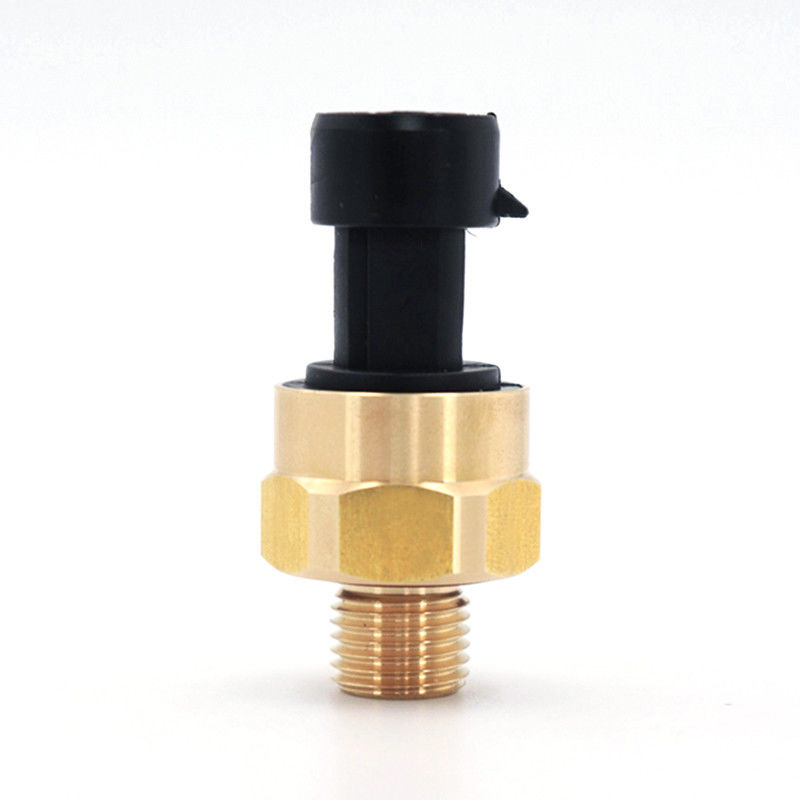

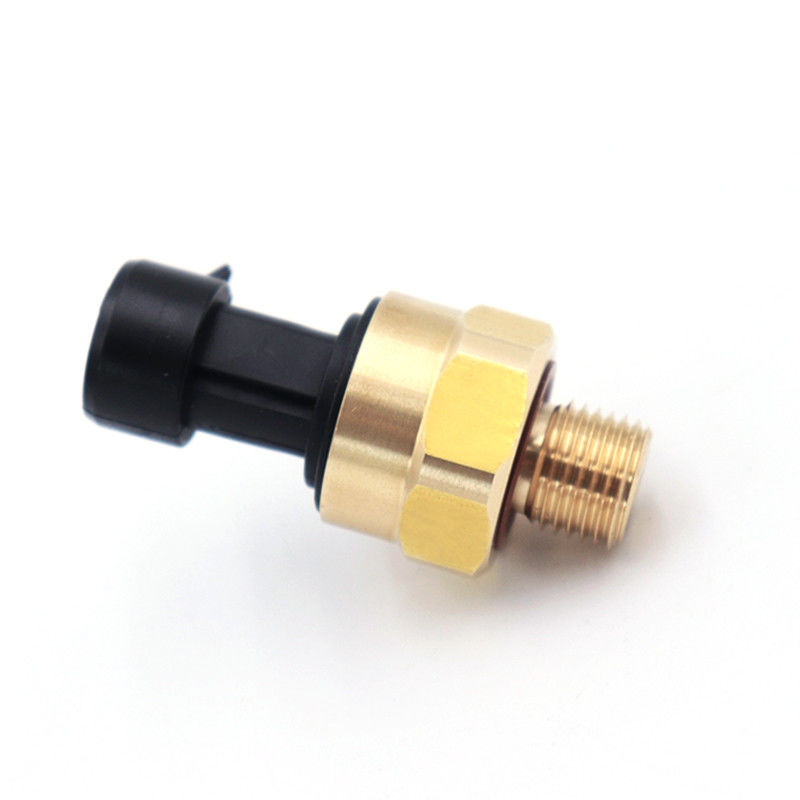

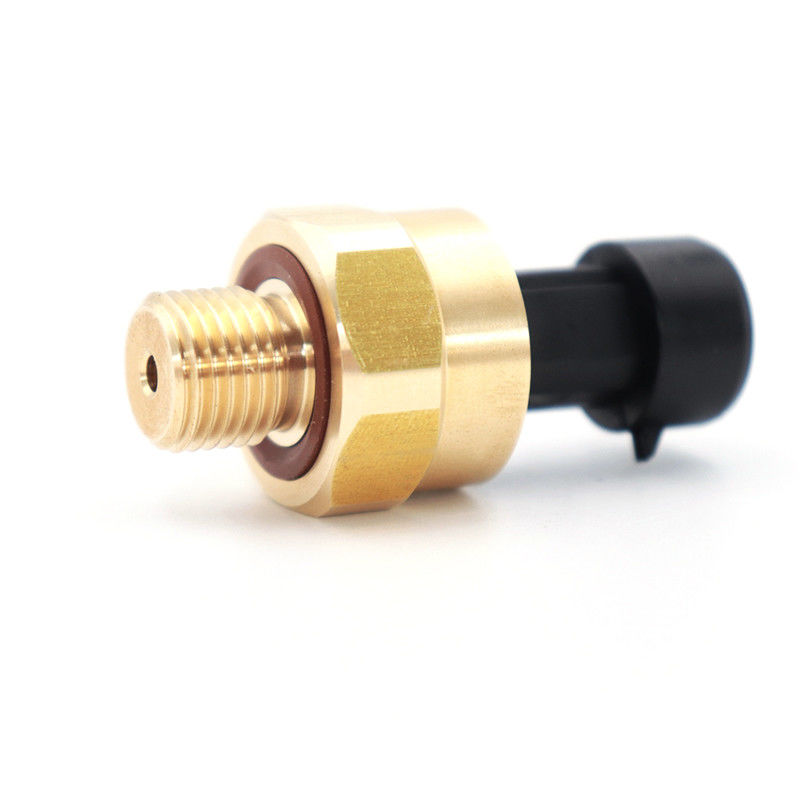

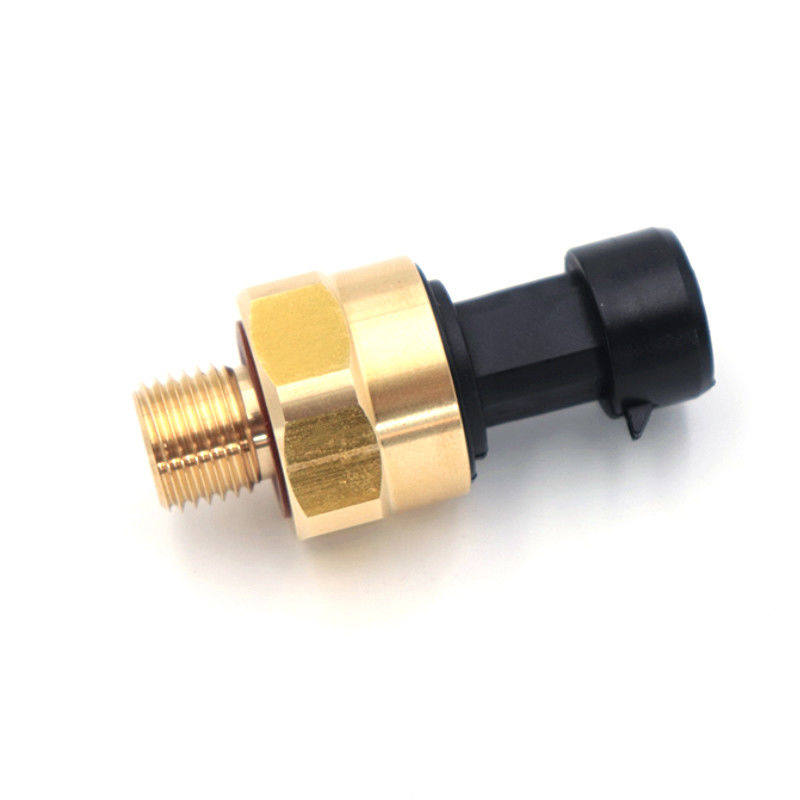

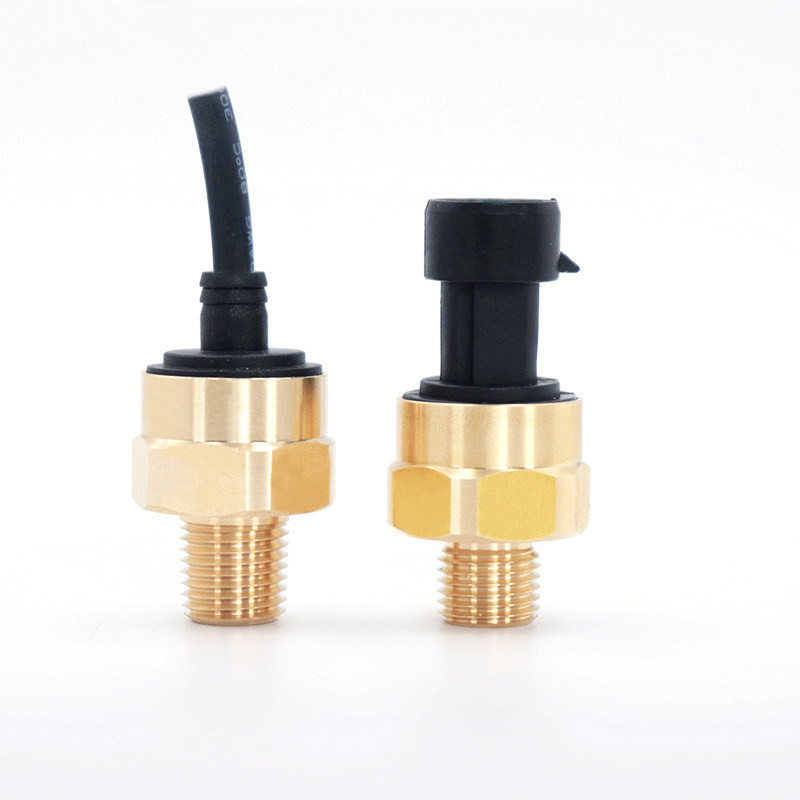

Brass Miniature Pressure Sensor For Liquid Level Measurement IP67 standard
|Place of Origin:||Anhui, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pcs|
|Price:||$6.00 - $6.50/Pieces|
|Packaging Details:||each product in one inner paper box with protection|
|Delivery Time:||5-8 work days|
|Payment Terms:||T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||3000 Piece/Pieces per Month Water Pressure Sensor/ Air Prssure Sensor|
|Warranty:||1 YEAR||Customized Support:||OEM, ODM|
|Model:||WNK83mA||Application:||Constant Pressure Water Supply System|
|Measured Media:||Typical Water, Gas, Oil, Hydraulic Oil, Etc.||Pressure Range:||0-10bar,0-20bar|
|Power Supply:||5V DC||Output:||0.5-4.5VDC|
|Protection Class:||IP65 /67||Housing Material:||Brass|
|OEM Service:||OEM, ODM, Customization Available||Operating Temperature::||-40~85 ℃|
Brass miniature pressure transmitter,
Liquid Level Measurement miniature pressure transmitter,
IP67 Pressure Sensor For Liquid Level Measurement
Model WNK83mA sensor is an economical pressure sensor specially developed by WNK sensor.
It uses a ceramic induction core and a dedicated ASIC conditioning circuit.
The housing is made of brass and is compact structure, light weight, easy to install and replace, anti-vibration.
For analog signal inputs, the pressure sensor can change the frequency based on the analog input signal.
If the pressure is too high, the actuator will run slowly and vice versa.
In this case, the pressure of the constant pressure water supply system can be adjusted by setting a preset value.
The role of the pressure gauge throughout the control system is on and off.
The pressure sensor not only controls but also regulates the entire control system.
So the pressure sensor will be more suitable for the application of constant pressure water supply systems.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery?
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
