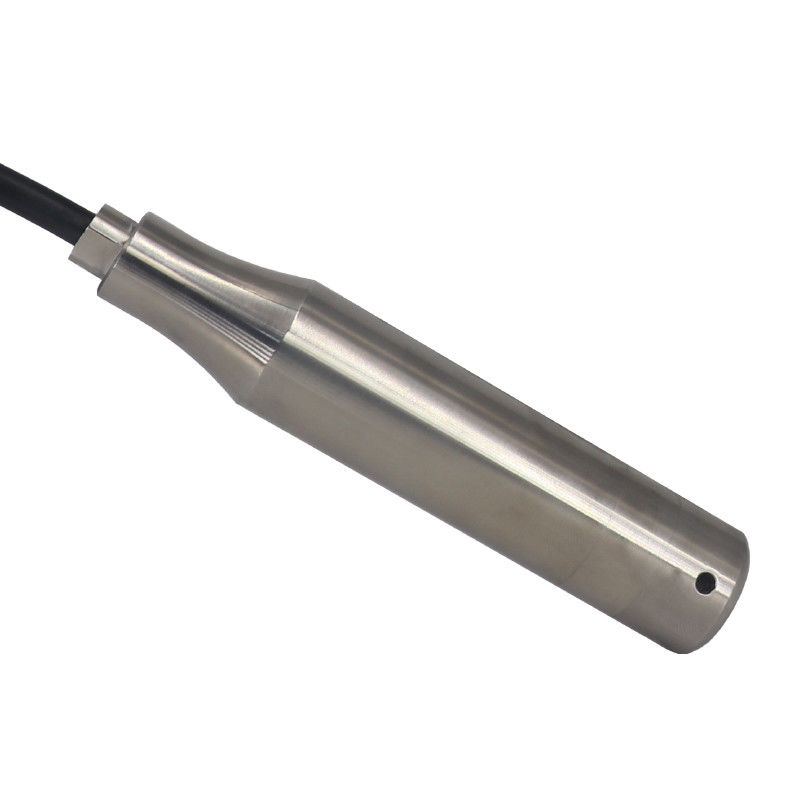

• 4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection

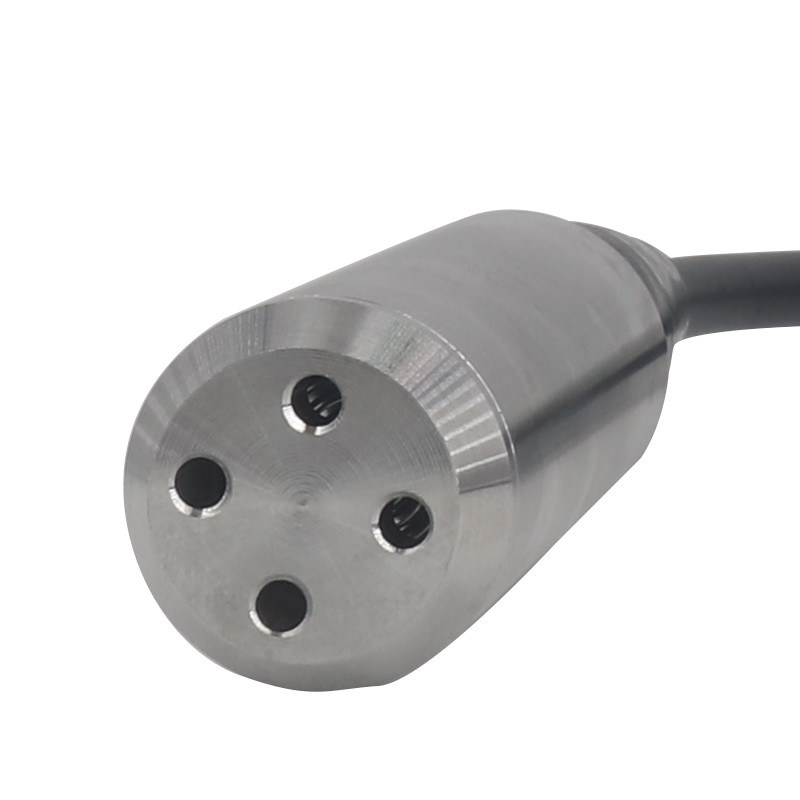

  • 4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection

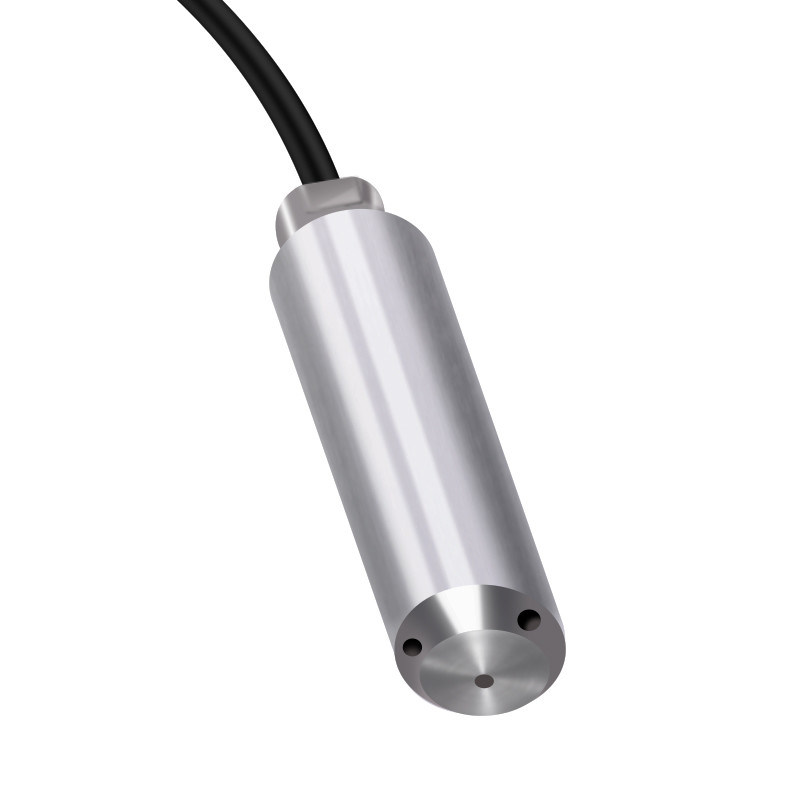

  • 4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection
4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection

4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK8010-T

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $55.00 - $70.00/Pieces
Packaging Details: Each set into one individual carton, packed with foam protection
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 Piece/Pieces per Week Water Tank Level Sensor
Get Best Price Contact Now

Detail Information

Grade: Industrial Warranty: 1 Year
Customized Support: OEM, ODM Pressure Range: 0-200 Metres
Accuracy: 0.2%FS, 0.5%FS Output Signal: 4-20mA, 0-5V, 0-10V
Application: Liquid, Water Pressure Type: Guage Pressure
Power Supply: 12~36VDC Working Temperature: -40~85 ℃
Process Connection: G1/2, Customization Compensation Temperature: -20~70℃
Keywords: Hydrostatic Level Sensor/ Water Tank Level Sensor Port: Shanghai, Ningbo, Other Ports In China
High Light:

Gauge hydrostatic pressure level sensor

,

24V DC Hydrostatic Pressure Level Sensor

,

G1 2 hydrostatic pressure level sensors

Product Description

Water Tank Level Sensor Hydrostatic Level Sensor Water For River Pool





- WNK8010 is submersible stainless steel water level sensor ideal for measuring hydrostatic water level.

- The water level sensor is built with inside high performance diffused silicon piezoresistive pressure sensor element.
- Level ranges from 0 up to 200 metres water column and a 4-20mA current loop output signal.

Other signal output can be customized based on certain quantity





  Product Datas



Output 4-20mA,  0-5V, 1-5V, customization
Measured range 0-0.5~200mH2O
Max overload 150% of sensor range
Applicable media Liquid, Water
Accuracy ≤ ±0.2%FS,
Long Term Stability ±0.25% FS/year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power supply 24V DC
Operating temperature -30~85℃
Compensation temperature -20~70℃
Protection class IP68



  Applications



- Liquid-level testing and control in industrial process

- Monitor and control the water levels in massive water reservoirs
- Build Automation System and constant pressure water supply system
- Urban water supply and wastewater treatment
- Measure and control liquid-level in other automation systems

- Open tank, waste water, fire fighting water tank, reservoir water level, fuel tank and etc.



  Technica Drawing



4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 0



  Ordering Code

4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 2

Product Show



4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 4


4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 7




Hot Product



4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 9





Company Information
4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 11
4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 13
4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 15
4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 17
4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 19
4-20ma Hydrostatic Level Sensor 24VDC G1/2 Process Connection 21
FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
