0-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor

0-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor

Product Details:

Place of Origin: China
Brand Name: WNK
Model Number: WNK19

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Neutral carton packing or as per your requirement.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000/ Piece/ Month
Get Best Price Contact Now

Detail Information

Accuracy: 0.1, 0.25, 0.5, 1.0 Measured Media: Liquid, Gas And Steam
Pressure Range: 0-10Kpa~7Mpa Output Signal: 4~20mA, 0~20mA, 0~10mA, 0~20V, 1~5V
Power Supply: 3.3V, 5V Ambient Temperature: -20~85 ℃
Material: Stainless Steel

Product Description

Specifications

WD19 Digital I2C/SPI Output Pressure Sensor

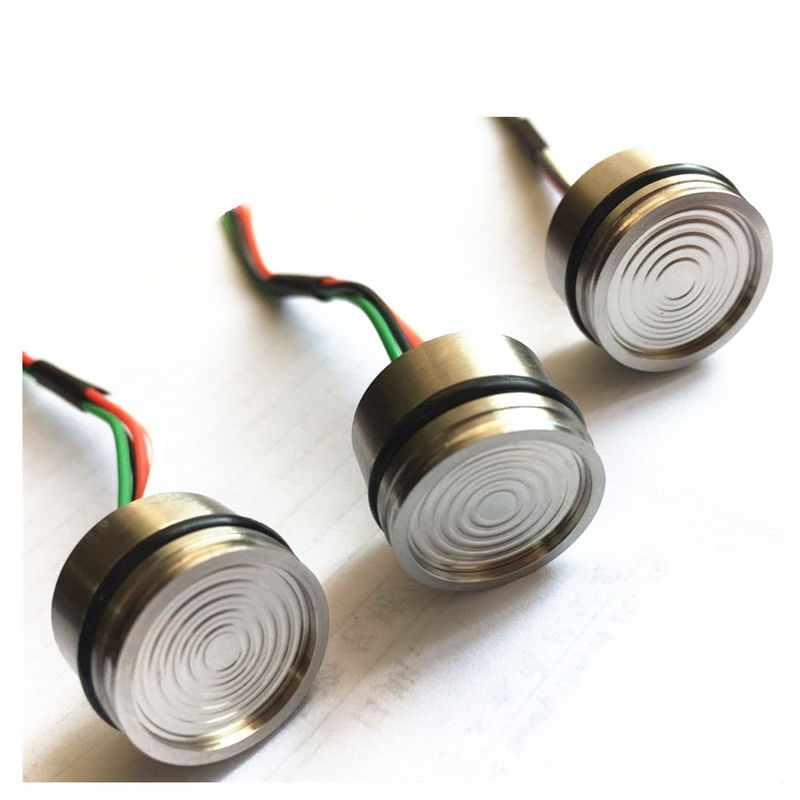

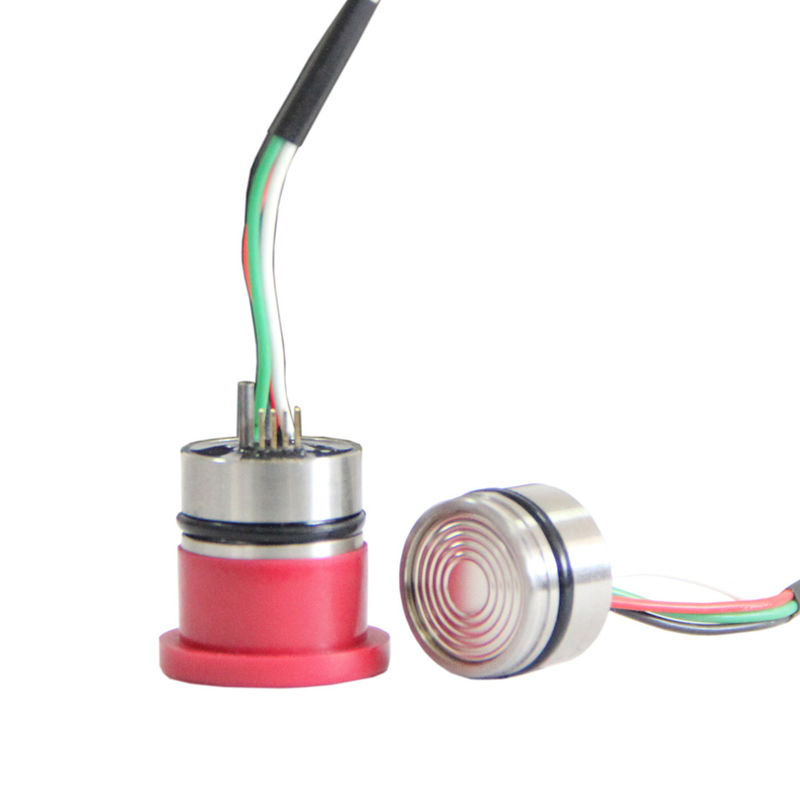

D19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.





Features

High stability and high accuracy
Low cost OEM
Suited for pressure range: 0-40Kpa…7Mpa
Wide temperature compensation range: total error<1%
Measurable of corrosive media ( media compatible with 316L)
Standard mounting size
Communication: I²C or SPI



WNK Pressure Sensor Series


WA19 Diezoresistive Silicon Oil Filled Analog Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor

Technical Data

Digital i2c pressure sensor for gas liquid steam pressure transmitter



i2c pressure sensor.jpg
0-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor 10-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor 20-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor 3
Dimensional Drawing

Packaging & Shipping

Packing & Shipping



Company Information

about us

0-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor 6

Our Projects

3



FAQ

Q1: What is the MOQ?

A: No MOQ required, 1 piece for trial or testing purpose is accepted.
Q2: Can we use our logo on the products?
A: Yes. OEM service is available
Q3: What's the production lead time?
A: 7-10 days for standard products, custom requirements are subject to negotiation.
Q4: What are the terms of warranty and after sale.
A: 12 months of warranty for regular products. During the warranty time, any quality issues will be sent back for after sale at our own expense
Q5: What are the means of transport?
A: By Air, Sea, and Courier Express such as TNT,Fedex,DHL,UPS
