DIN43650 0-10V 1-5V 4-20ma Ceramic Capacitive Pressure Sensor
Product Details:
| Place of Origin: | China Hefei, CN |
| Brand Name: | WNK |
| Certification: | CE/ROHS |
| Model Number: | WNK80MA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Price |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Neutral carton packing or as per your requirement. |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Accuracy: | 0.2% 0.5% 1.0% FS | Output Signal: | 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485 |
|---|---|---|---|
| Pressure Range: | 0~60bar | Housing Material: | 304SS, 316SS |
| Measured Media: | Water, Air, Gas, Steam | Applications: | Water Air Refrigerant HVAC, Automobile |
| OEM Service: | OEM, ODM, Customization Available | ||
Product Description
DIN43650 0-10V 1-5V 4-20ma Ceramic Capacitive Pressure Sensor
Product Description
WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear,shock resistance and vibration resistance.Its anti-overload capacity is over 10 times of the range,completely solved poor overload in samll range of normal sensors,its most outstanding characteristic is the positive and negative gauge pressure function.As high output and wide range of its core ceramic capacitive sensor,WNK80MA is especially suitable for harsh industrial environment pressure measurement.
| Input | |
| Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
| Pressure Range | -100Kpa - 60Mpa |
| Accuracy | 0.2%, 0.5% |
| Power Supply | 5VDC, 12-32VDC |
| Measuring Media | Gas, Steam, Liquid, Oil |
| Output | |
| Analog | 4-20mA, 0.5-4.5V / 1-5V / 0-5V |
| Digital | I2C, SPI |
| Operation Condition and Temperature | |
| Compensation Temperature | -20...75℃ |
| Storage Temperature | -45 ... 85℃ |
| Ambient Temperature | -45 ... 85℃ |
| Medium Temperature | -40 ... 125℃ |
| Material and Protection | |
| Ingress Protection | IP65, IP67 |
| Housing Material | 304SS, 316L |
| >>> Applications |
| - Automobile, Compressor and Refrigeration Industry |
| - Engineering machinery |
| - Pressure control and monitor |
| - Water treatment system |
| - Hydraulic and Pneumatics |
| - HAVC and BAS Control |
| - Pump, fitness equipment, household appliances |
| - Factory Automation |
| - Fluid Control and Instrumentation Systems |

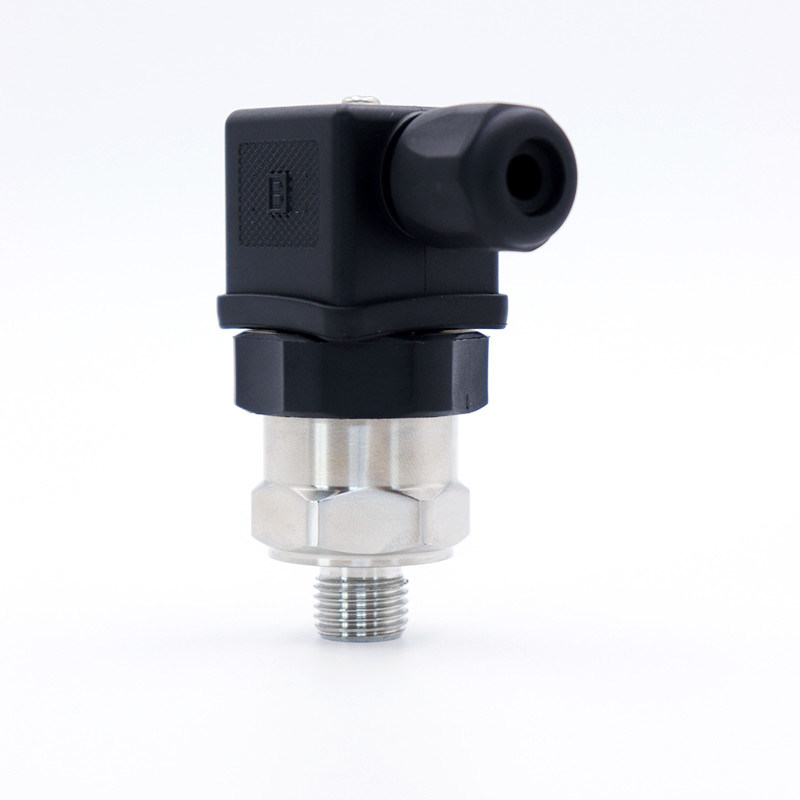

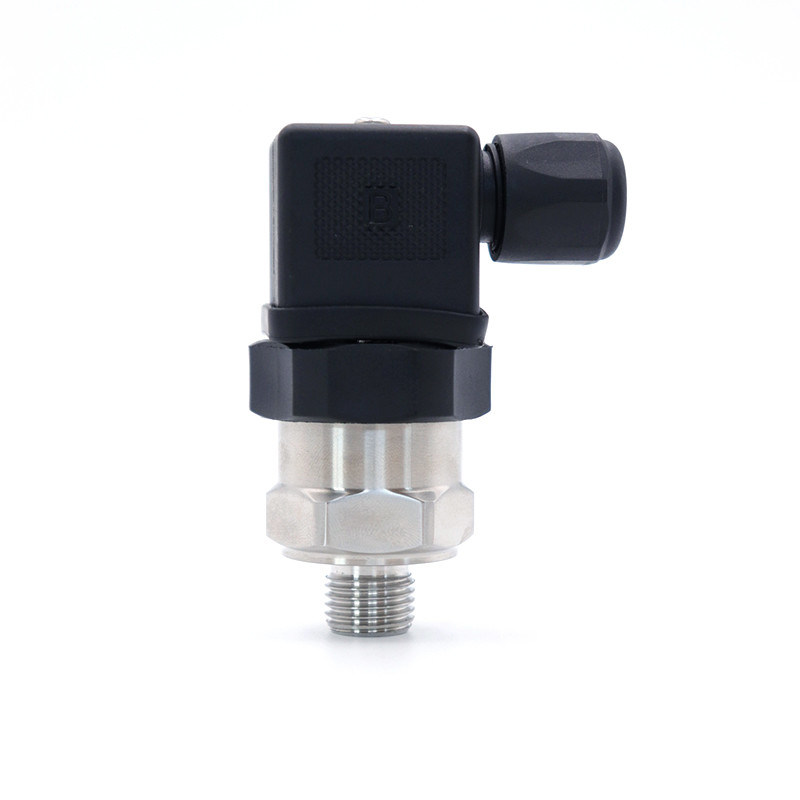

Product Show
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
