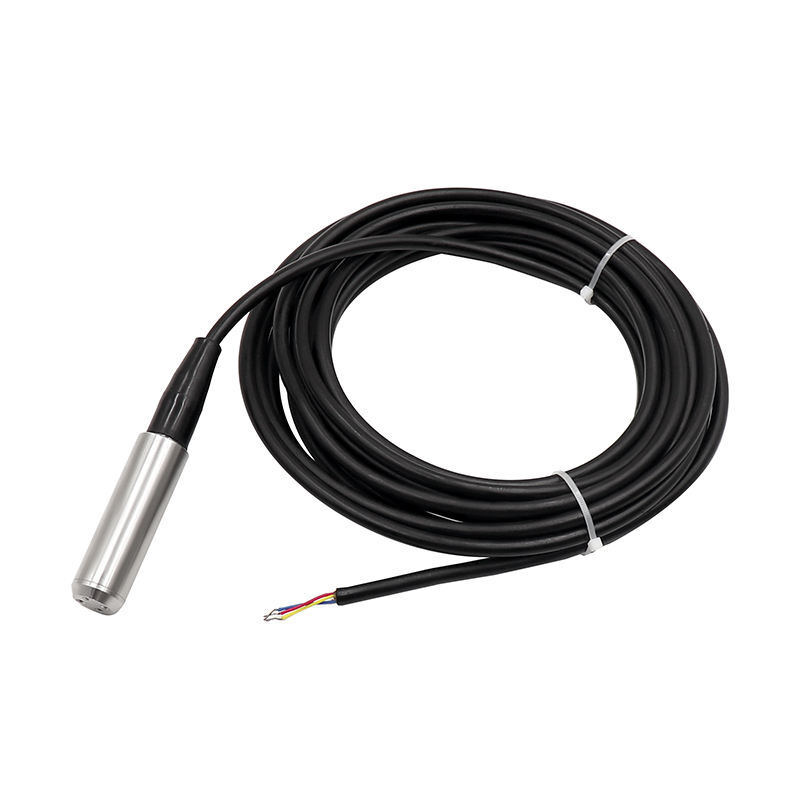

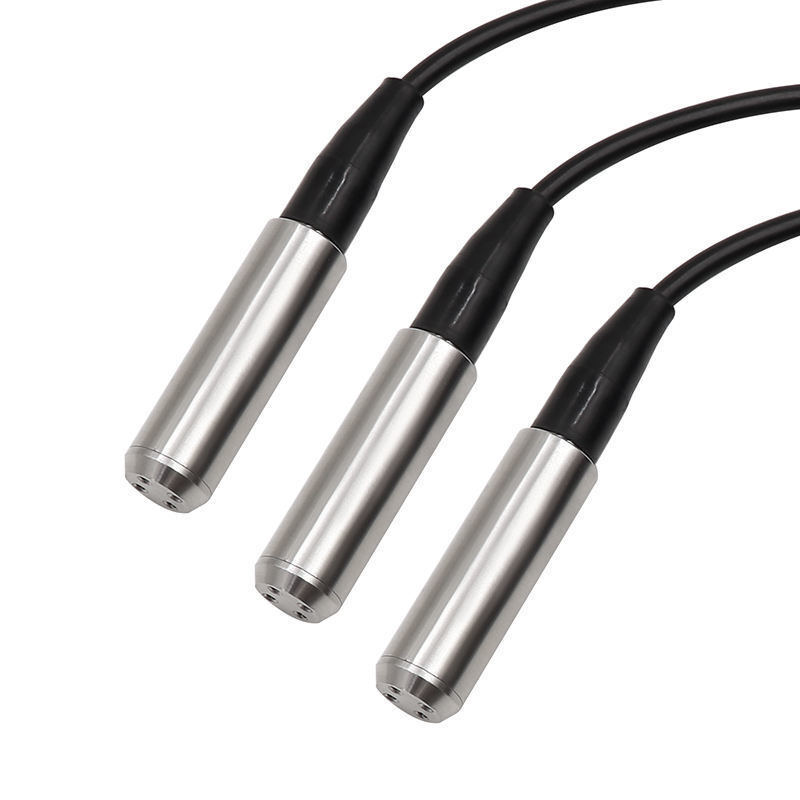

Name: ATEX Explosion Proof 4-20mA 0-10V RS485 Submersible Hydrostatic Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Availability: InStock

Home > Products > Water Level Transmitter >

ATEX Explosion Proof 4-20mA 0-10V RS485 Submersible Hydrostatic Water Level Sensor for Deep Well

ATEX explosion proof water level sensor

submersible hydrostatic level transmitter

deep well water level sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK8010-TT

Request A Quote

Product Details

Warranty:

1 YEAR

Customized Support:

OEM, ODM

Pressure Range::

0...2~200 Metres

Output:

4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Accuracy:

0.2%FS, 0.5%FS,

Power Supply:

12~36VDC

Protection Class:

IP68

Application:

Rainwater, Drinking Water,Wastewater, Sewage, Seawater

Housing Material:

304SS, 316L

Operating Temperature::

-40~85 ℃

Type:

Gauge

OEM Service:

OEM, ODM, Customization Available

Port:

Shanghai/Ningbo

Highlight:

ATEX explosion proof water level sensor

submersible hydrostatic level transmitter

deep well water level sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

Each set into one individual carton, protection with foam. Then into master carton

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

2000 Piece/Pieces per Month level pressure sensor

WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River

Get Best Price

Video

WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor

Get Best Price

Video

4-20ma 0-10v RS485 Output Liquid Water Level Sensor 500m Well Borehole Fuel Submersible Water Depth Level Transmitter

Get Best Price

Video

WNK Submersible Level Pressure Transmitter Liquid Level Pressure Sensor Water Level Transducer

Get Best Price

Contact Now

Product Description

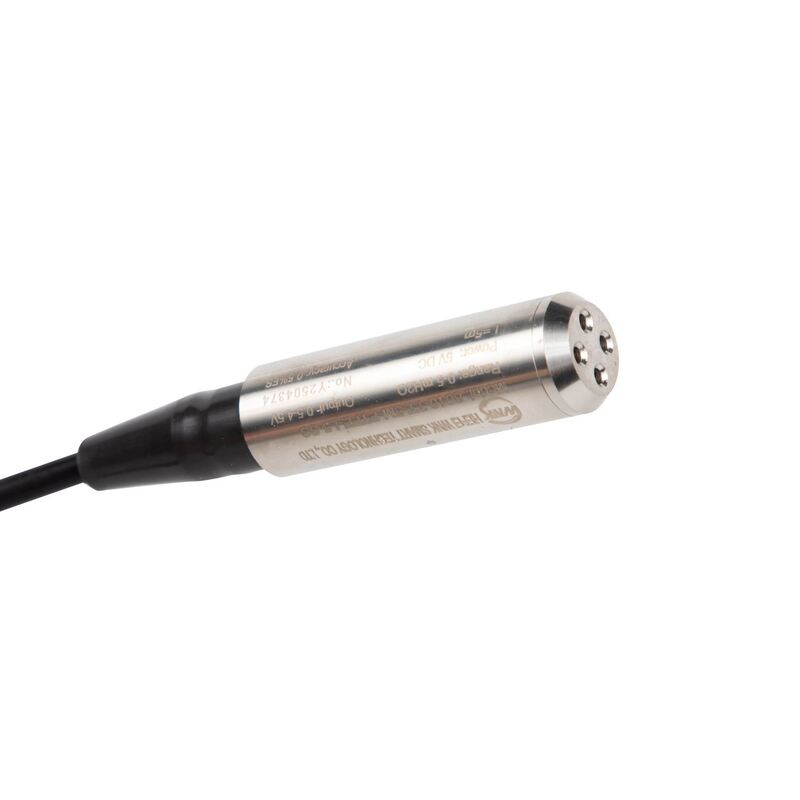

WNK 8010 throw-in type level transmitter (also called static pressure type level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel (or PTFE) housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly. The product adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement liquid level is not affected by the change of external atmospheric pressure, the measurement is accurate with long term stability and excellent sealing and anti-corrosion performance . It can be put directly into water, oil and other liquids (including corrosive liquids) for a long time. The outer casing and cable of PTFE material can measure a variety of highly corrosive liquids.

Applications:

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features:

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Specification

Output	4~20mA, 0-10mA, 0-5V, 1-5V, customization
Level range	0-0.5~200mH2O
Overload	150% of sensor range
Measuring medium	Liquid
Accuracy	±0.2%FS, ±0.5%FS
Stability	0.25%FS/ year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power Supply	24VDC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

ATEX Explosion Proof 4-20mA 0-10V RS485 Submersible Hydrostatic Water Level Sensor for Deep Well 0

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
