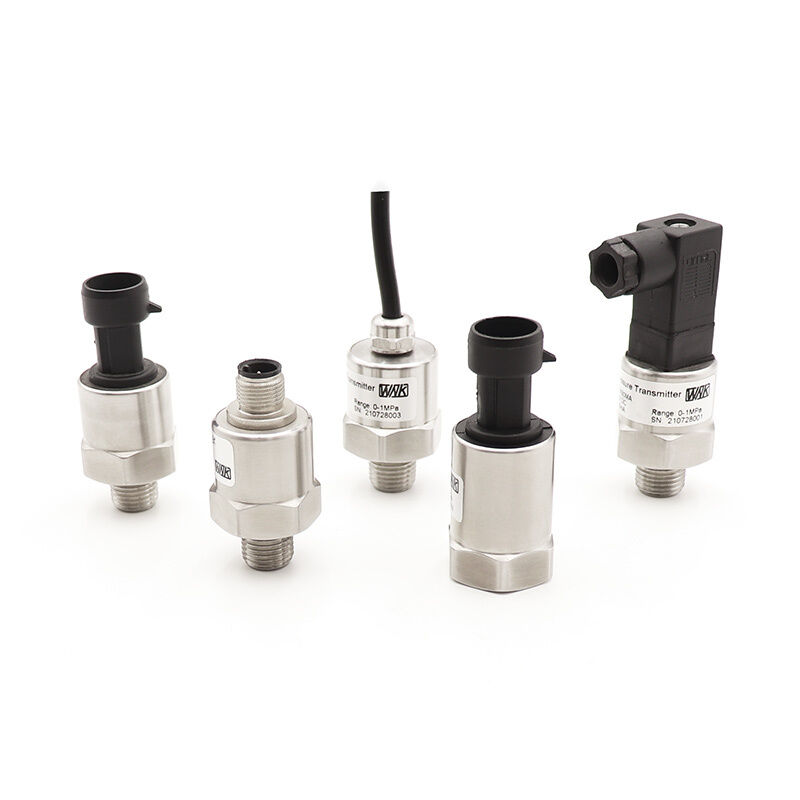

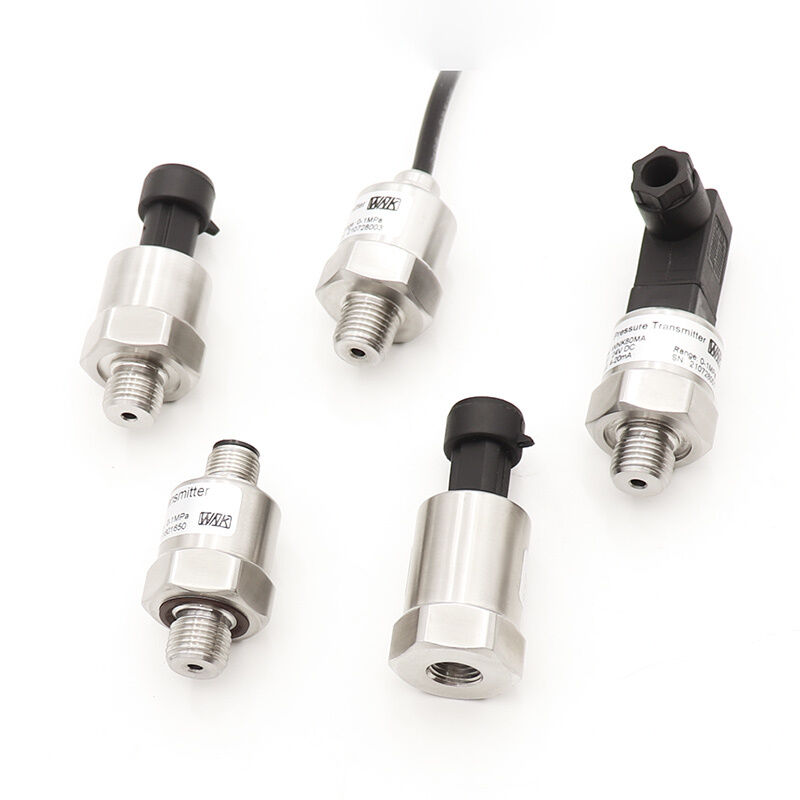

Name: WNK Industrial Pressure Transducer 0-10V 4-20mA Output Gauge Absolute Pressure Sensor Air Compressor OEM
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80ma
Availability: InStock

Home > Products > IOT Pressure Sensor >

WNK Industrial Pressure Transducer 0-10V 4-20mA Output Gauge Absolute Pressure Sensor Air Compressor OEM

industrial pressure transducer 0-10V output

absolute pressure sensor 4-20mA output

air compressor pressure sensor with warranty

Place of Origin:

Chian

Brand Name:

WNK

Certification:

CE/ROHS

Model Number:

WNK80ma

Request A Quote

Product Details

Measured Media:

Water, Air, Gas, Steam

Housing Material:

304SS, 316SS

Accuracy:

0.5%FS

Pressure Range:

10kpa, -100kpa...70Mpa

Applications:

Water Air Refrigerant HVAC, Automobile

Output Signal:

4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485

Pressure Type:

Gauge Pressure, Absolute Pressure, Sealing Pressure

IP Rating:

IP65

Highlight:

industrial pressure transducer 0-10V output

absolute pressure sensor 4-20mA output

air compressor pressure sensor with warranty

Payment & Shipping Terms

Stainless Steel 0.5% Accuracy 4-20mA 0-5V 0-10V Pressure Sensor/Transducer/Transmitter

Get Best Price

Video

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine

Get Best Price

Video

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

Get Best Price

Video

ATEX CE 4-20mA 0.5-4.5V I2C -100kpa-100MP air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter

Get Best Price

Contact Now

Product Description

Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.

Product Description

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core.It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and etc.With certification of UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.

WNK Industrial Pressure Transducer 0-10V 4-20mA Output Gauge Absolute Pressure Sensor Air Compressor OEM 5
