Place of Origin:
China
Brand Name:
WNK
Certification:
CE
Model Number:
WNK85

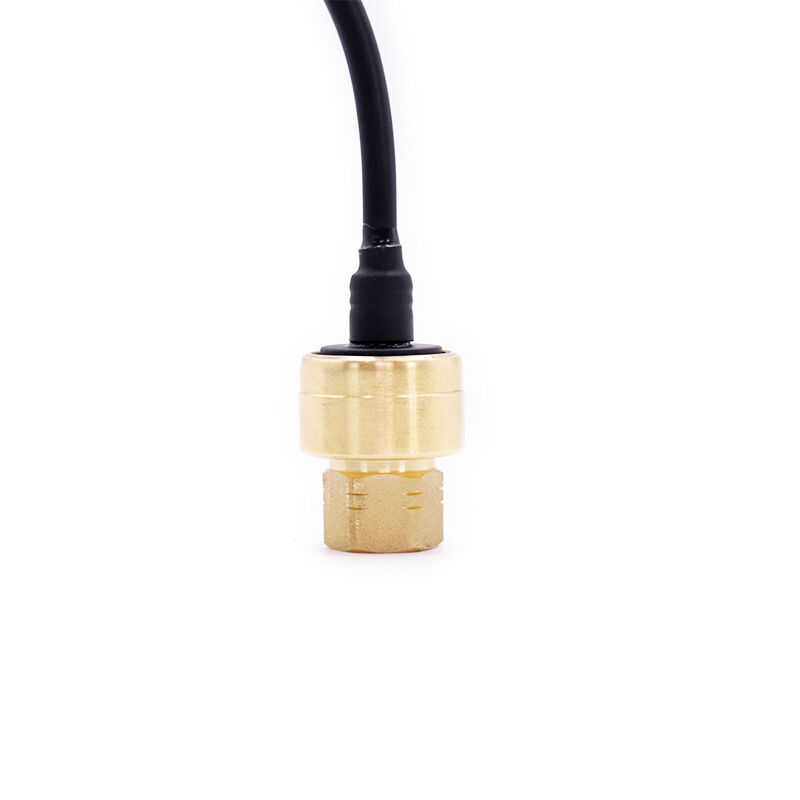

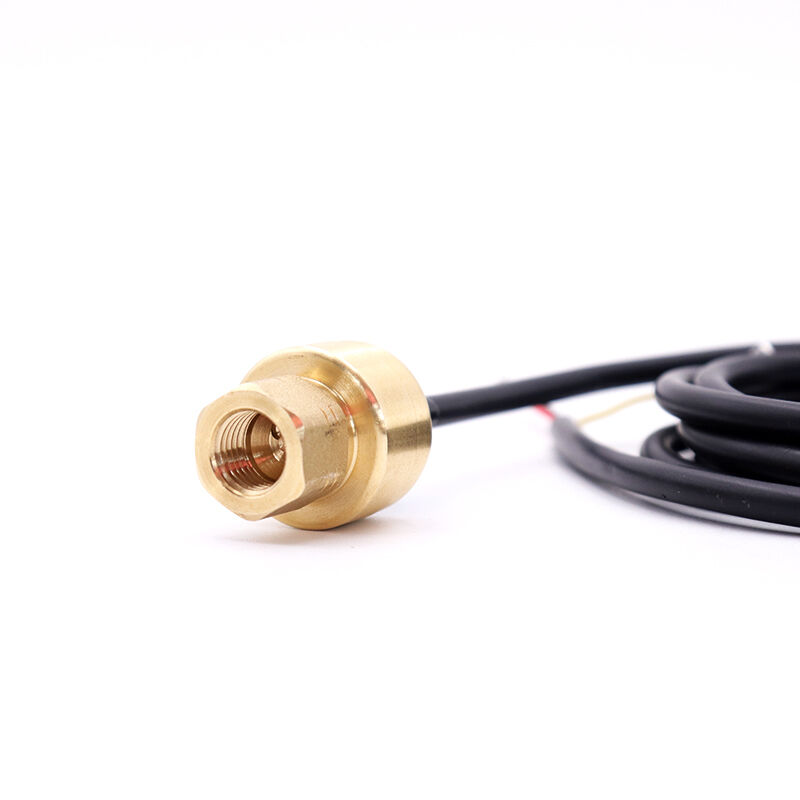

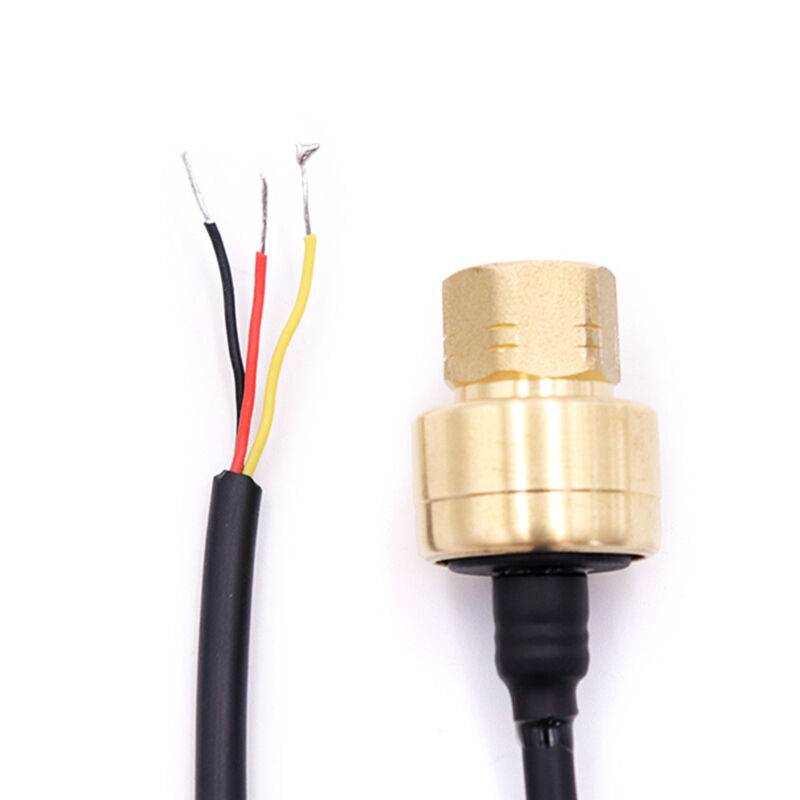

Hvac Refrigerant Pressure Sensor for R410a R22 R134a R404a
| Applicable media | Liquid, gas, seam |
| Pressure range | 2MPa-6MPa |
| Pressure measurement | Gauge pressure, sealing pressure |
| Output | 0.5-4.5V |
| Power Supply | 5VDC |
| Accuracy(lineraity, hysteresis, repeatability) | 1%FS |
| Working temperature | -20~70°C |
| Storage temperature | -40~85°C |
| Temp drift(zero) | ±0.15%FS(-20~70°C) |
| Temp drift(full range) | ±0.15%FS(-20~85C) |
| Electrical connection | Pakard |
| Mechanical connection | 7/16-UNF (female) |
| Housing material | Brass |
1. Thread can be customized1/8’’NPT male, 1/4’’NPT male/Female, 7/16’’-20 UNF male/Female
2. Output can be customized4-20mA, 0-5V, 0-10V, 0.5-4.5V
3. Power supply can be customized10-30VDC, 8-30VDC, 15-30VDC, 5VDC
