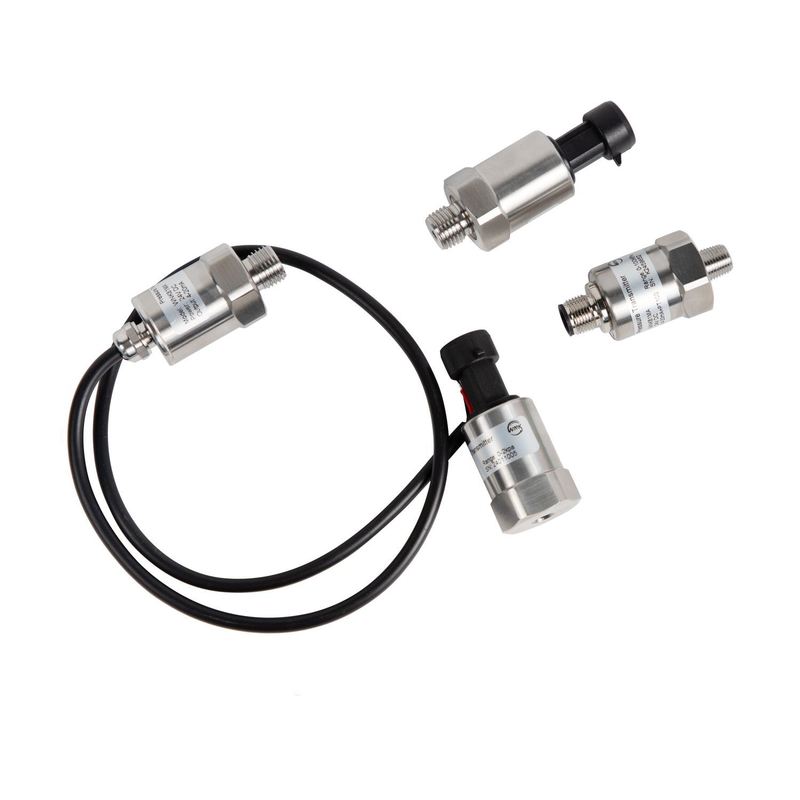

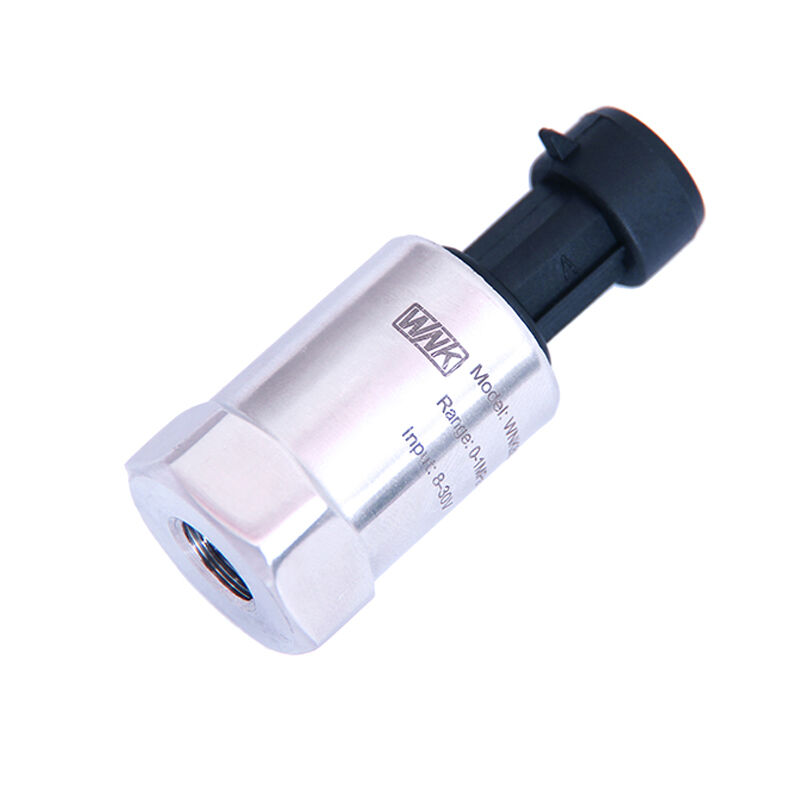

Name: WNK 4~20mA 0.5-4.5V Refrigerant Pressure Sensor for R410a R22 R134a R404a
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80mA
Price: 10.00 USD
Availability: InStock

Home > Products > HVAC Pressure Sensor >

WNK 4~20mA 0.5-4.5V Refrigerant Pressure Sensor for R410a R22 R134a R404a

R410a refrigerant pressure sensor

4-20mA HVAC pressure sensor

R134a compatible pressure transducer

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80mA

Request A Quote

Product Details

Warranty:

1 YEAR

Application:

Air Conditioning Refrigerant Hvac

Protection Class:

IP65 /67

Output:

4- 20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Housing Material:

304SS, 316L, 316SS

Measured Media:

Liquid, Gas, Steam, Oil, Air

OEM Service:

OEM, ODM, Customization Available

Power Supply:

5V DC, 12-32V DC

Pressure Range::

0-15MPa

Operating Temperature::

-40~85 ℃

Accuracy:

0.5%FS 1%FS

Port:

Shanghai/Ningbo

Highlight:

R410a refrigerant pressure sensor

4-20mA HVAC pressure sensor

R134a compatible pressure transducer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

$19.00/Pieces 1-49 Pieces

Packaging Details

100 pcs per master carton

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

5000 Piece/Pieces per Month Pressure Sensor for Air Conditioning

Low Cost Water Pressure Sensor Transmitter Manufacture Pressure Measuring Instruments

Get Best Price

Video

WNK Stainless Steel Universal 4-20ma Pressure Transmitter NPT1/4 0-5V Output 0-200 Psi Air Pressure Sensors Transducer

Get Best Price

Video

WNK HVAC Refrigeration Pressure Sensor Pressure Transmitter 0.5-4.5v

Get Best Price

Video

WNK 4-20ma 0.5-4.5V HAVC Air Compressor Water Truck Fuel Oil Brake Pressure Sensor

Get Best Price

Contact Now

Product Description

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.
