Name: IP68 Waterproof 0~200m 4~20ma Submersible Liquid Level Sensor
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Availability: InStock

Home > Products > Water Level Transmitter >

IP68 Waterproof 0~200m 4~20ma Submersible Liquid Level Sensor

IP68 waterproof liquid level sensor

submersible water level transmitter

4~20ma liquid level sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK8010-TT

Request A Quote

Product Details

Warranty:

1 YEAR

Customized Support:

OEM, ODM

Pressure Range::

0...2~200 Metres

Output:

4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Accuracy:

0.2%FS, 0.5%FS,

Power Supply:

12~36VDC

Protection Class:

IP68

Application:

Rainwater, Drinking Water,Wastewater, Sewage, Seawater

Housing Material:

304SS, 316L

Operating Temperature::

-40~85 ℃

Type:

Gauge

OEM Service:

OEM, ODM, Customization Available

Port:

Shanghai/Ningbo

Highlight:

IP68 waterproof liquid level sensor

submersible water level transmitter

4~20ma liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

Each set into one individual carton, protection with foam. Then into master carton

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

2000 Piece/Pieces per Month level pressure sensor

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

Get Best Price

Video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Get Best Price

Video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Get Best Price

Video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Get Best Price

Contact Now

Product Description

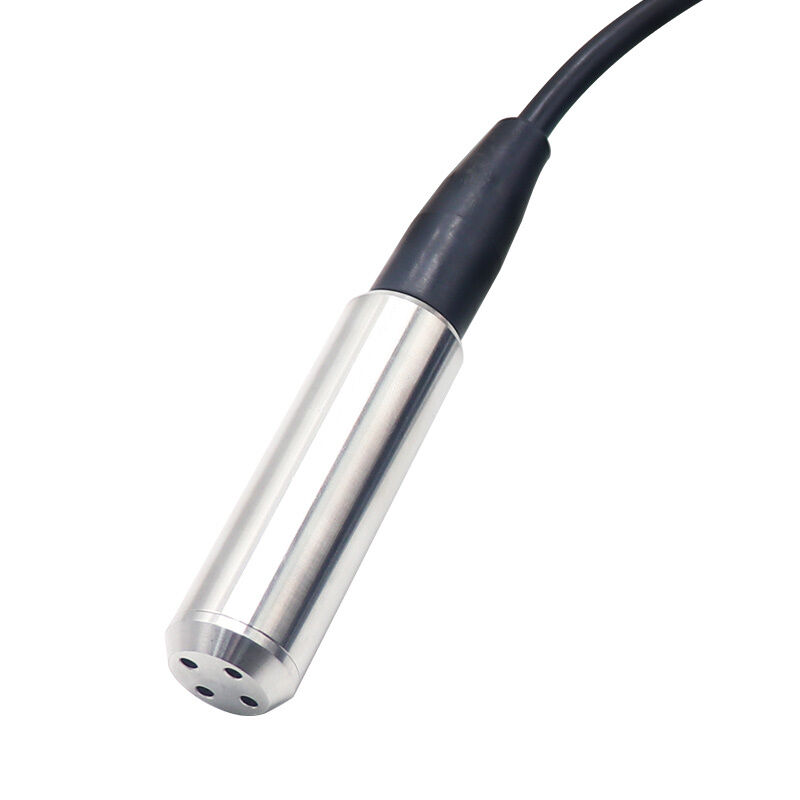

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
