Name: Submersible 4G NB-Lora IOT Wireless Water Level Sensor for Water Tank Monitoring
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK-MP80
Availability: InStock

Home > products > Submersible Level Sensor >

Submersible 4G NB-Lora IOT Wireless Water Level Sensor for Water Tank Monitoring

submersible 4G water level sensor

NB-Lora wireless tank monitor

IoT water tank sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

Model Number:

WNK-MP80

Request A Quote

Product Details

Power Supply:

3.6V DC, 19Ah Battery

Measurement Signal:

Pressure Signal (or PT100 Temperature Signal)

Maximum Emission Current:

≤200mA

Transmit Power:

23 DBm ±2 DB

Receiving Sensitivity:

-115 DBm

Accuracy:

0.5%FS

Pressure Range:

-100Kpa~70Mpa;Can Be Customized According To Need

Liquid Level Range:

0~200m

Temperature Range:

PT100 -200~850℃

Operating Temperature:

-40 -80℃

Highlight:

submersible 4G water level sensor

NB-Lora wireless tank monitor

IoT water tank sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

Each set into one individual carton, protection with foam. Then into master carton

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

2000 Piece/Pieces per Month level pressure sensor

High Stability Water Level Sensor With PTFE Cable Material And 0.25%FS/ Year

Get Best Price

Video

Highly Accurate Submersible Level Sensor Temperature Range -20C- 80C Stability 0.25%FS/ Year Overload 150% Of Sensor Range

Get Best Price

Video

Submersible Level Sensor 1-5V Output Overload Capacity Up To 150% Of Sensor Range For Accurate Level Monitoring

Get Best Price

Video

Polyvinyl Fluoride Cable Submersible Level Sensor With 0.25%FS / Year Stability And -20C- 80C Temperature Range

Get Best Price

86-551-65369655

Contact Now

Product Description

Submersible 4G NB-Lora IOT Wireless Water Level Sensor for Water Tank Monitoring

Product Specifications

Attribute	Value
Power Supply	3.6V DC, 19Ah battery
Measurement Signal	Pressure Signal (or PT100 temperature signal)
Maximum Emission Current	≤200mA
Transmit Power	23 dBm ±2 dB
Receiving Sensitivity	-115 dBm
Accuracy	0.5%FS
Pressure Range	-100Kpa~70Mpa; Can be customized according to need
Liquid Level Range	0~200m
Temperature Range	PT100 -200~850℃
Operating Temperature	-40 -80℃

Product Description

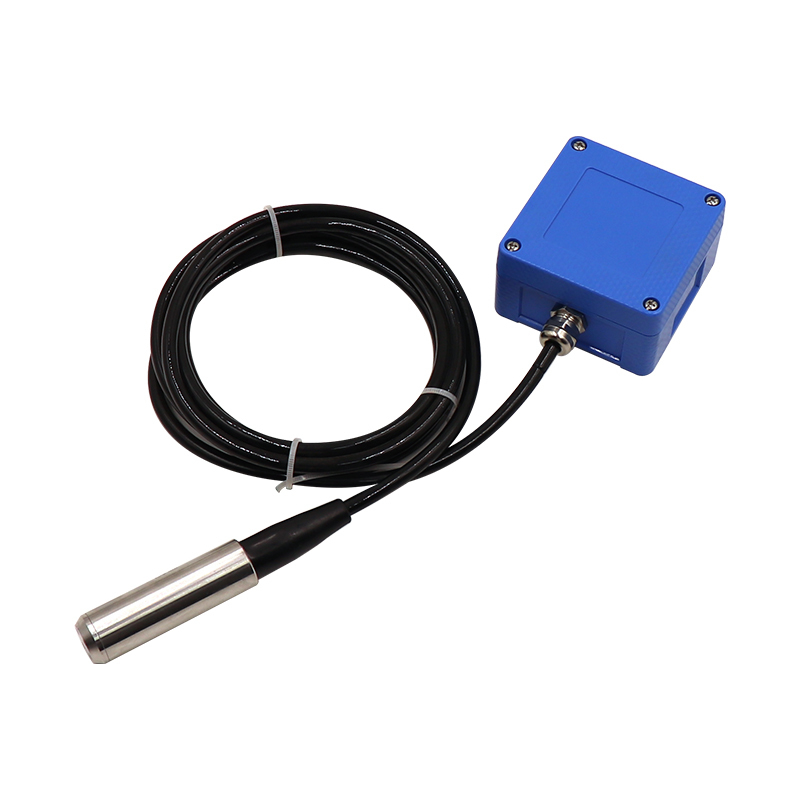

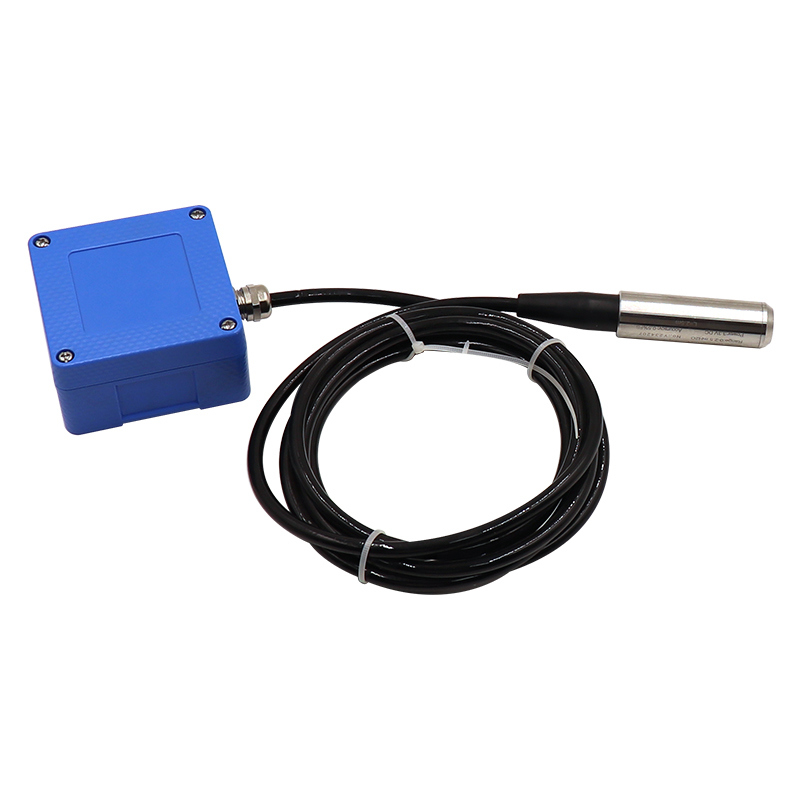

The WNK 4G Wireless Water Level Sensor is designed for precise water tank monitoring applications.

WNK-MP80 is a 4G wireless sensor developed by Wanke Intelligence
Converts physical signals (pressure, temperature, liquid level) into digital signals for transmission to IoT platforms
Customizable range with accuracy up to 0.5%
Sensitive response with real-time measurement data and no damping lag
IP68 ingress protection rating
Widely used in fire, aviation, medical, industrial control, and environmental protection applications

This product is available for NB/Lora configurations. Please contact us for specific requirements.

Product Dimensions

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer since 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

What's your quality control system?

Our factory is certified under ISO 9001-2015. All products undergo temperature compensation and 48-hour aging tests before shipment.

What is the warranty of your products?

12 months from shipment date, covering non-man-made damages.

Shipping and Delivery

Small orders are delivered via DHL, FedEx, TNT, or UPS with delivery in 4-5 business days. Large orders are recommended for sea shipping.
