Place of Origin:
Chian
Brand Name:
WNK
Certification:
CE/ROHS
Model Number:
WNK80ma
| Attribute | Value |
|---|---|
| Measured media | Water, Air, Gas, Steam |
| Housing material | 304SS, 316SS |
| Accuracy | 0.5%FS |
| Pressure range | 10kpa, -100kpa...70Mpa |
| Applications | Water Air Refrigerant HVAC, Automobile |
| Output signal | 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485 |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealing Pressure |
| IP rating | IP65 |

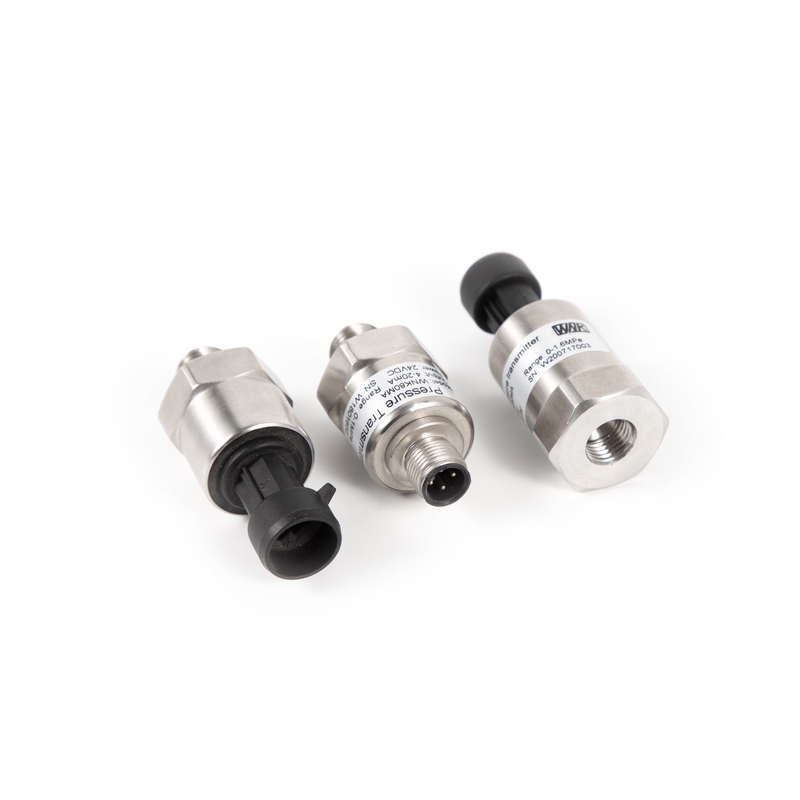

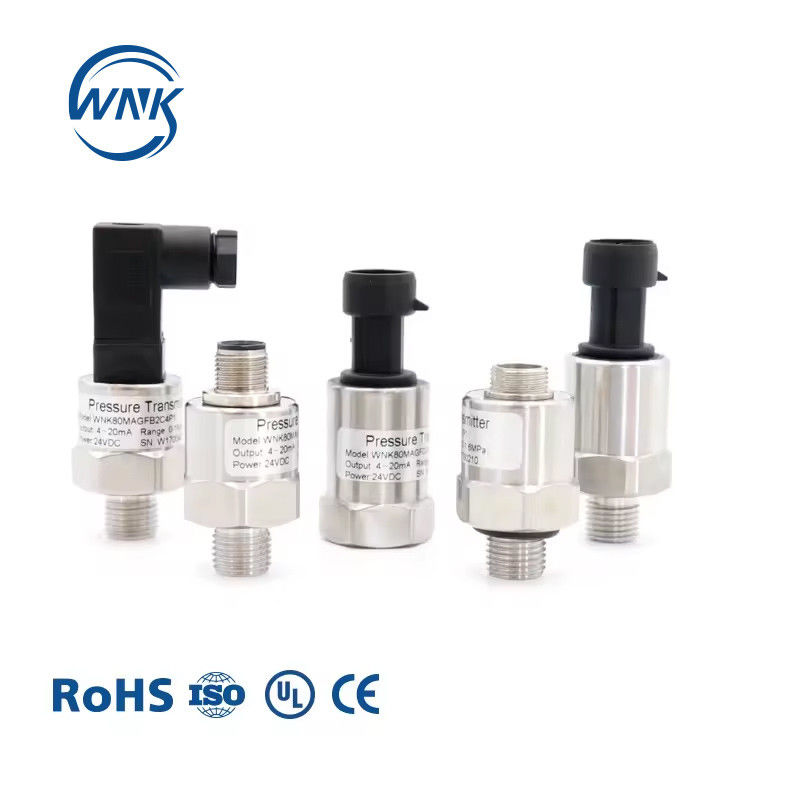

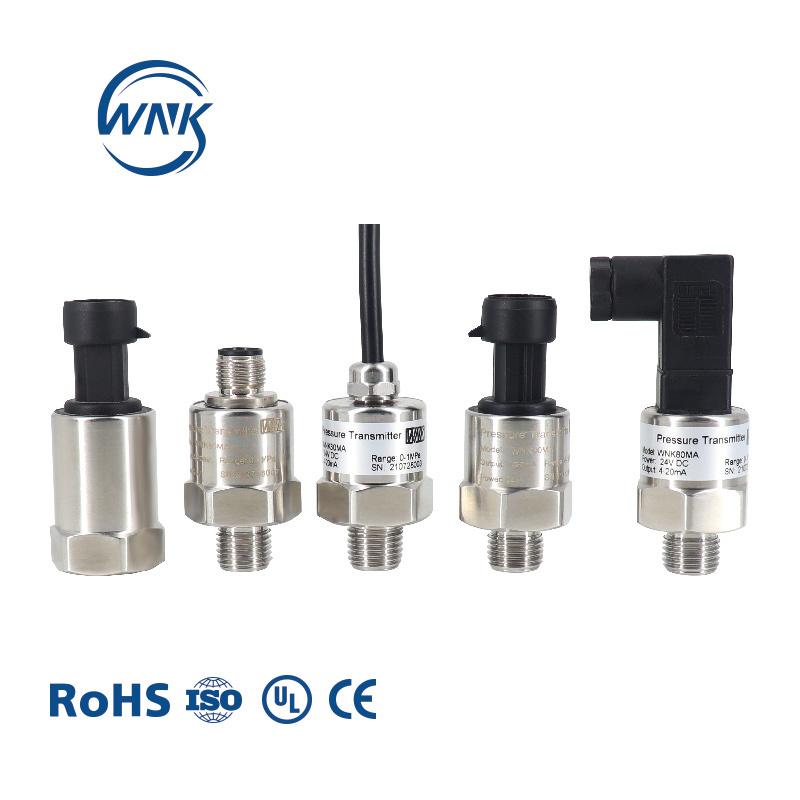

WNK 4-20ma 0.5-4.5V I2C Water Pressure Sensor for Air Oil Gas
| Applicable media | Liquid, Gas |
| Pressure Range | 0-60bar/-1-700Bar |
| Pressure Type | Gauge Pressure, Absolute pressure, Sealing pressure |
| Output | 4-20mA/0.5-4.5V/1-5V/0-10V/I2C |
| Accuracy | 0.5%F.S./1%FS (Typical) |
| Power Supply | 24VDC/12VDC/5VDC/3.3V |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift (zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift (full range) | ±0.15% F.S. (-20~85ºC) |
| Electrical connection | Packard, M12, DIN43650, Cable outlet |
| Mechanical connection | G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize |
| Housing material | 304 stainless steel (inner core is 316 stainless steel) |
| Protection | IP65 |
The WNK81MA is a silicon oil filled pressure transducer featuring an imported ASCI signal conditioning chip and diffused silicon oil filled sensor core. It offers anti-corrosion, anti-wear, shock resistance and vibration resistance properties. With long-term stability and high accuracy, it's widely used in pressure measurement and control fields including HVAC, automotive, pumping, and water treatment applications. Certified with UL, RoHs, Reach, CE, and UKCA standards.
