Place of Origin:
Chian
Brand Name:
WNK
Certification:
CE/ROHS
Model Number:
WNK80ma
| Attribute | Value |
|---|---|
| Measured media | Water, Air, Gas, Steam |
| Housing material | 304SS, 316SS |
| Accuracy | 0.5%FS |
| Pressure range | 10kpa, -100kpa...70Mpa |
| Applications | Water Air Refrigerant HVAC, Automobile |
| Output signal | 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485 |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealing Pressure |
| IP rating | IP65 |

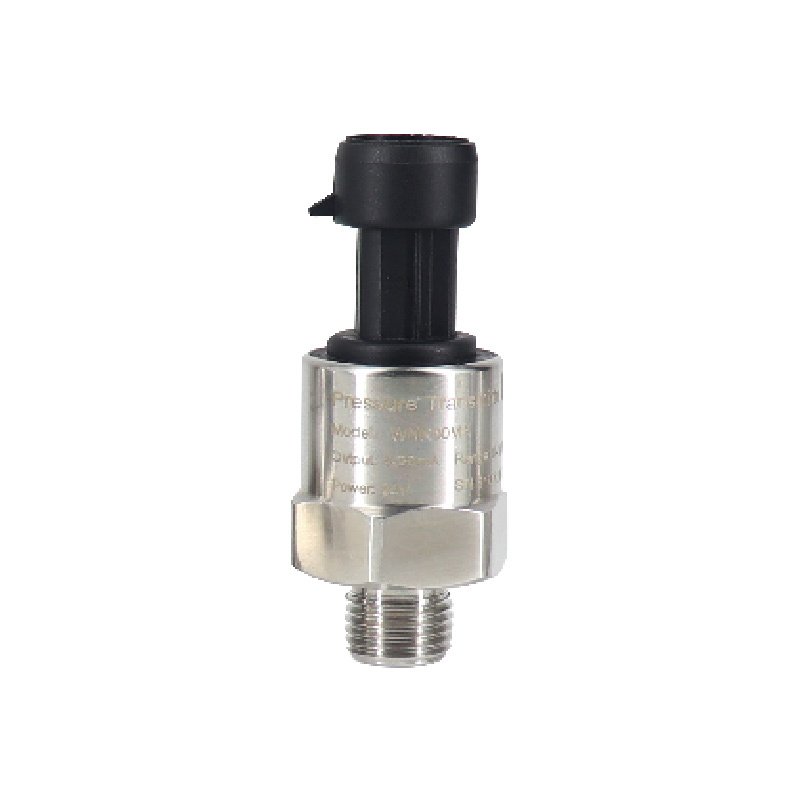

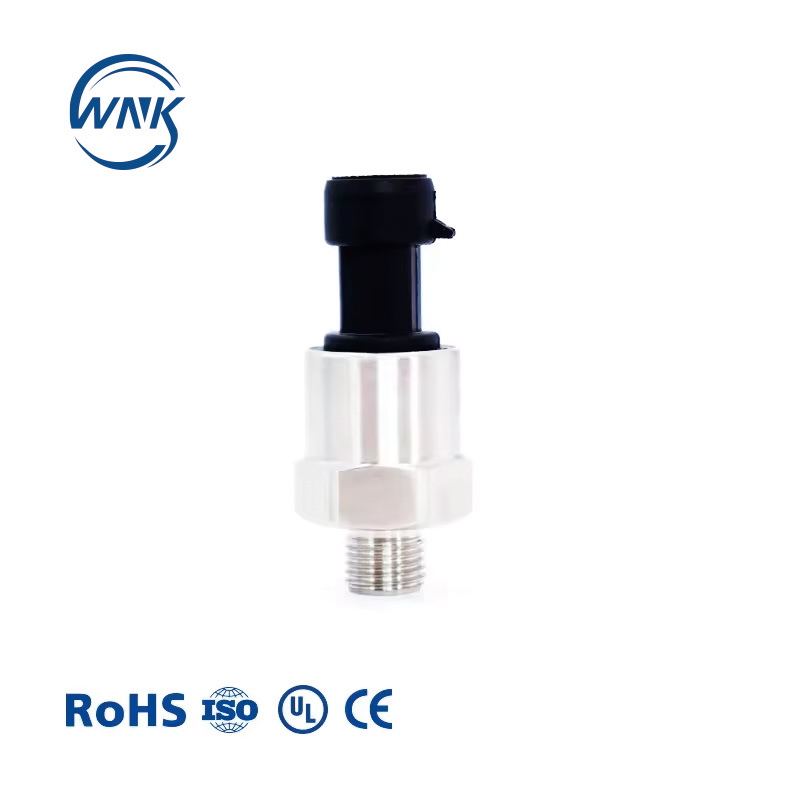

WNK81MA is a silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it's widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and more. Certified with UL, RoHs, Reach, CE, UKCA.
| Specification | Details |
|---|---|
| Applicable media | Liquid, Gas |
| Pressure Range | 0-60bar/-1-700Bar |
| Pressure Type | Gauge Pressure, Absolute pressure, Sealing pressure |
| Output | 4-20mA/0.5-4.5V/1-5V/0-10V/I2C |
| Accuracy | 0.5%F.S./1%FS (Typical) |
| Power Supply | 24VDC/12VDC/5VDC/3.3V |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift (zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift (full range) | ±0.15% F.S. (-20~85ºC) |

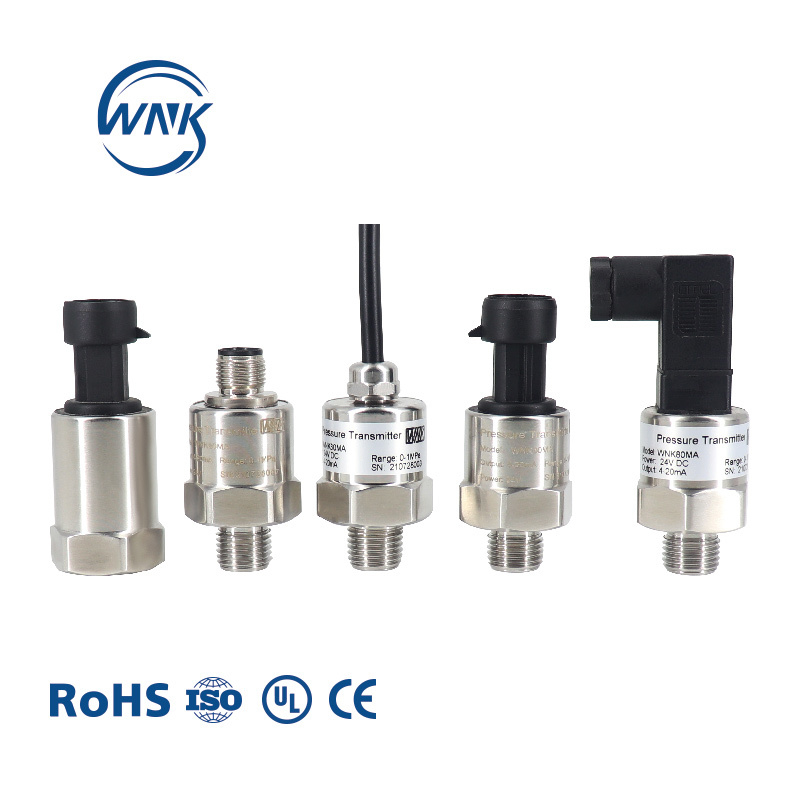

| Electrical connection | Packard, M12, DIN43650, Cable outlet |
| Mechanical connection | G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize |
| Housing material | 304 stainless steel (inner core is 316 stainless steel) |
| Protection | IP65 |
