Place of Origin:
Chian
Brand Name:
WNK
Model Number:
WNK125P
| Attribute | Value |
|---|---|
| Storage Temperature | -50℃~135℃ |
| Medium | Engine Oil, POE Oil, Refrigerant, Gas, Water Or Liquid |
| Accuracy | +1%F.S (Linearity, Hysteresis, Repeatability, Calibration) |

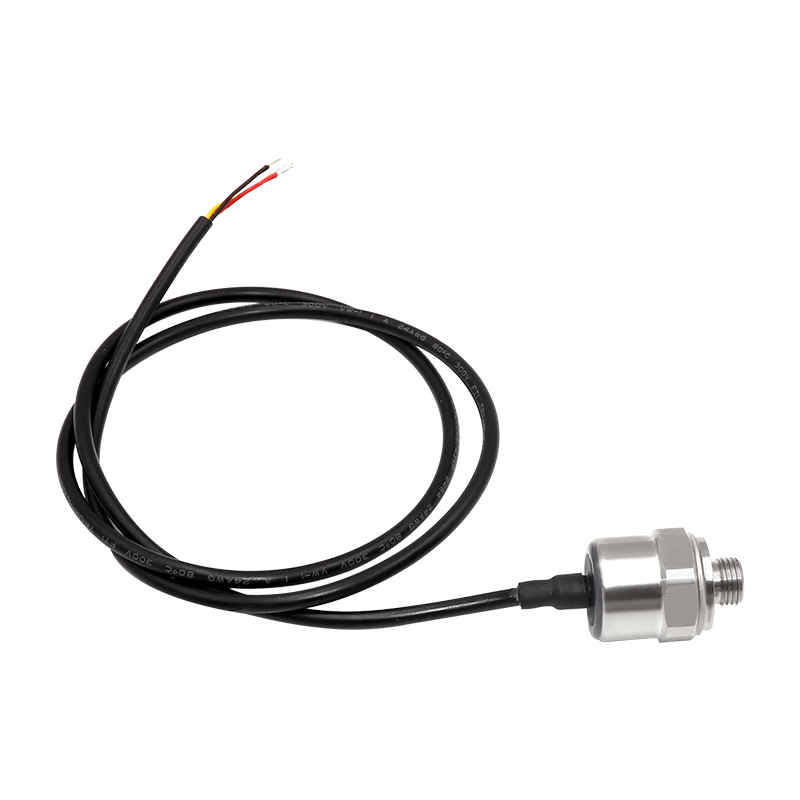

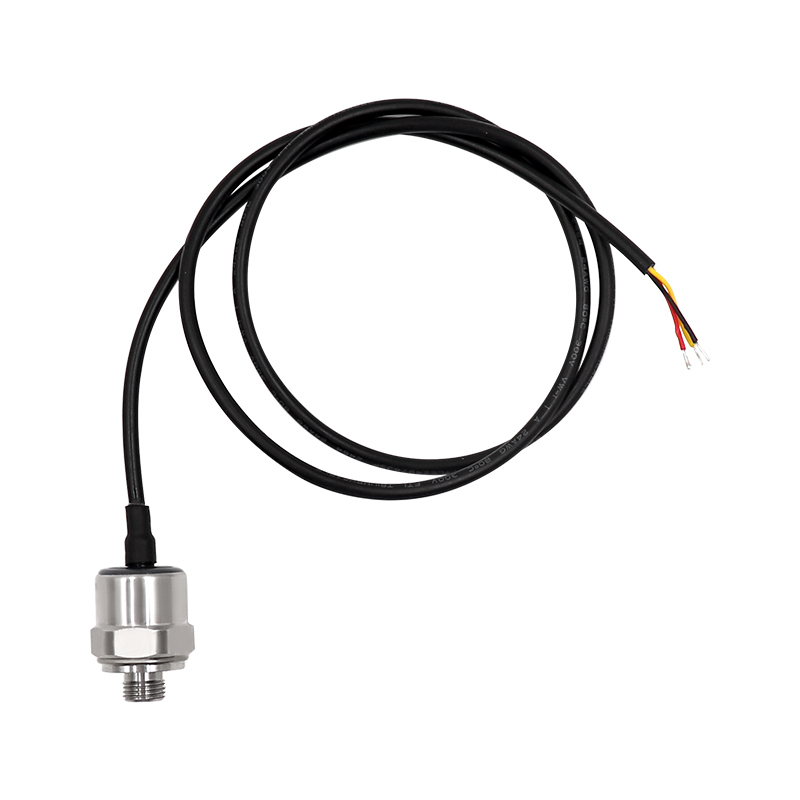

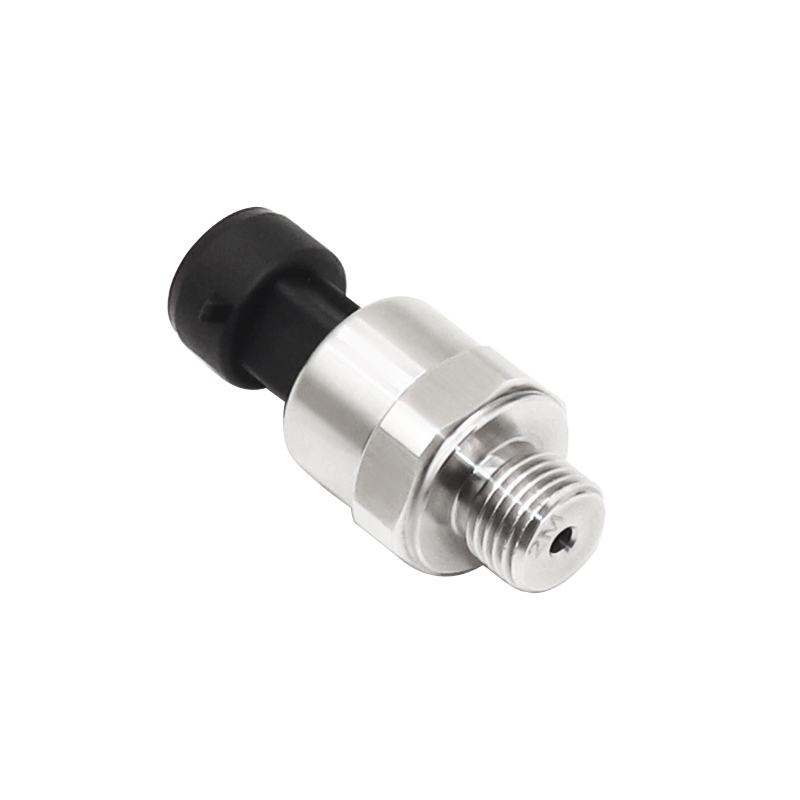

| Electrical Connector | Packard/ Cable Outlet |
| Pressure Range | 0~5Bar, 0~10Bar, 0~20Bar, 0~40Bar (Customized) |
| Output | 0.5V~4.5V DC (10%-90%Vcc) |
| Process Connection | G1/4, 7/16-UNF female (Customized) |
| Material | Housing 304 SST; Wetted Parts 316L |
| Model | WNK125P |
|---|---|
| Power Supply | 4.75~5.25VDC (With reverse polarity protection, overvoltage protection 32V DC) |
| Supply Current | 15mA MAX |
| Working Temperature | -40℃~130℃ |
| Safe Pressure | 1.5~2 times of the pressure range |
| Burst Pressure | 100Bar G |
| Total Error Band | Static error band @25℃,5VDC,+3%(-30℃~125℃) |
| Mounting Torque | 10~20N*m |
The WNK125P is a diffusible silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and does not require any O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liquids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in automotive, transmission, air conditioning and oil pressure measurement applications.
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides calibration, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
A: 12 month from shipment date, for non-man-made damages.
A: Yes, we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome.
A: We have no MOQ limits, small quantity order is acceptable.
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.
