Name: 4-20mA 0~5m 0.5%F.S. Underwater Submersible Water Pressure Level Sensor
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-T
Availability: InStock

Home > products > Water Level Transmitter >

4-20mA 0~5m 0.5%F.S. Underwater Submersible Water Pressure Level Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE/ROHS

Model Number:

WNK8010-T

Request A Quote

Product Details

Grade:

Industrial

Warranty:

1 Year

Customized Support:

OEM, ODM

Pressure Range:

0-200 Metres

Accuracy:

0.2%FS, 0.5%FS

Output Signal:

4-20mA, 0-5V, 0-10V

Application:

Liquid, Water

Pressure Type:

Guage Pressure

Power Supply:

12~36VDC

Working Temperature:

-40~85 ℃

Process Connection:

G1/2, Customization

Compensation Temperature:

-20~70℃

Keywords:

Hydrostatic Level Sensor/ Water Tank Level Sensor

Port:

Shanghai, Ningbo, Other Ports In China

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

Each set into one individual carton, packed with foam protection

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram, Paypal

Supply Ability

1000 Piece/Pieces per Week Water Tank Level Sensor

High Performance Submersible Level Sensors For Oil Tank

Get Best Price

Video

4-20mA 0~5m 0.5%F.S. Underwater Submersible Water Pressure Level Sensor

Get Best Price

Video

WNK 0-5M RS485 Submersible Water Tank Level Sensor

Get Best Price

Video

0-5M Measuring Range 4-20mA Submersible Water Level Sensor for Deep Wells

Get Best Price

86-551-65369655

Contact Now

Product Description

WNK Submersible Water Pressure Level Sensor 4-20ma 0-10V

WNK 8010 throw-in type level transmitter (also called static pressure type level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel (or PTFE) housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly. The product adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement liquid level is not affected by the change of external atmospheric pressure, the measurement is accurate with long term stability and excellent sealing and anti-corrosion performance . It can be put directly into water, oil and other liquids (including corrosive liquids) for a long time. The outer casing and cable of PTFE material can measure a variety of highly corrosive liquids.

Applications:

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features:

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Specification

Output	4~20mA, 0-10mA, 0-5V, 1-5V, customization
Level range	0-0.5~200mH2O
Overload	150% of sensor range
Measuring medium	Liquid
Accuracy	±0.2%FS, ±0.5%FS
Stability	0.25%FS/ year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power Supply	24VDC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

Product Show

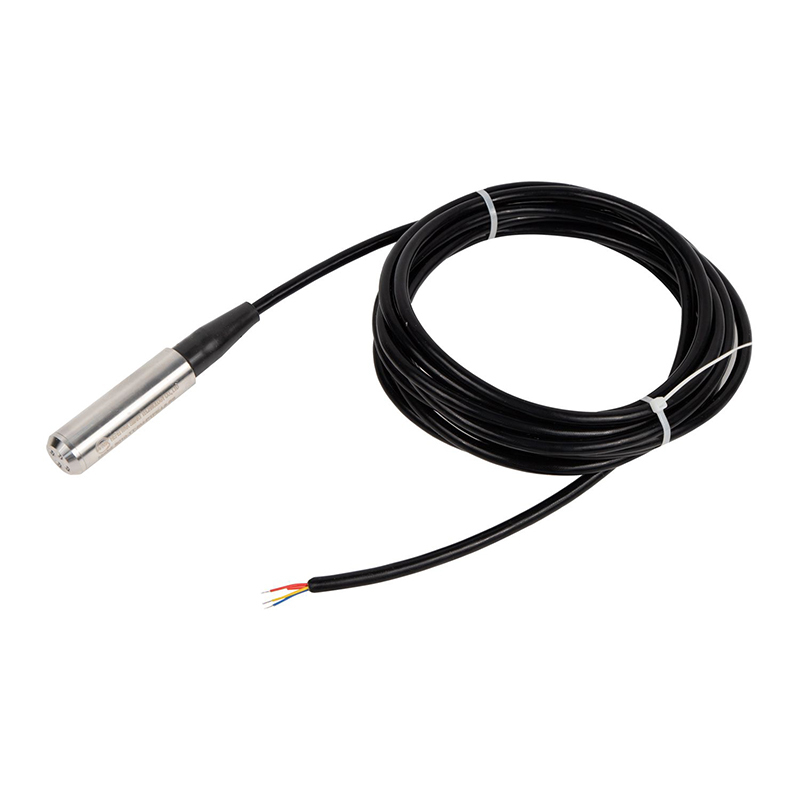

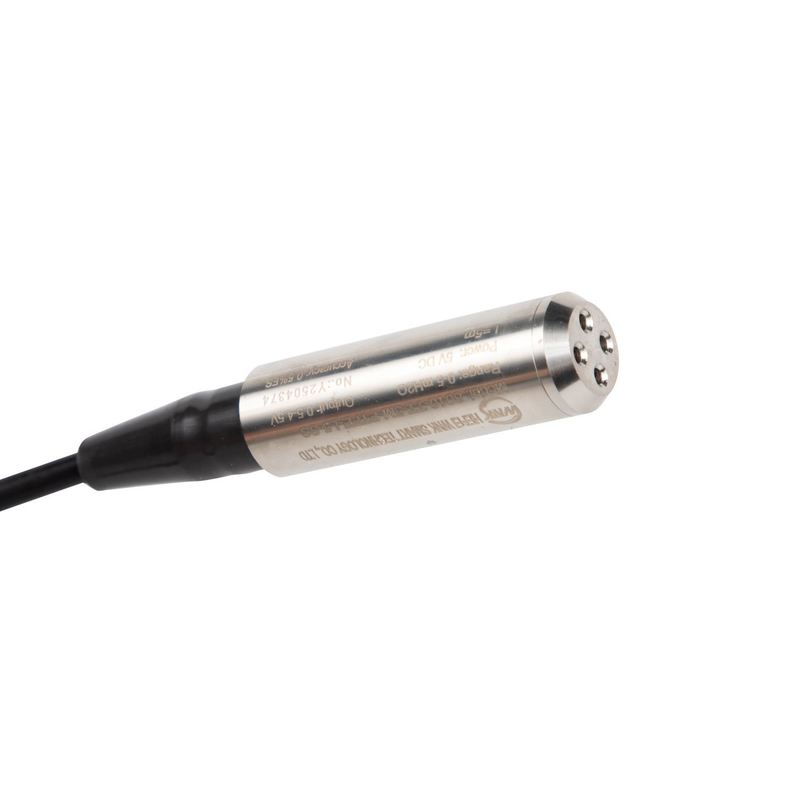

4-20mA 0~5m 0.5%F.S. Underwater Submersible Water Pressure Level Sensor 0

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
