Place of Origin:
China
Brand Name:
WNK
Certification:
CE
Model Number:
WNK85

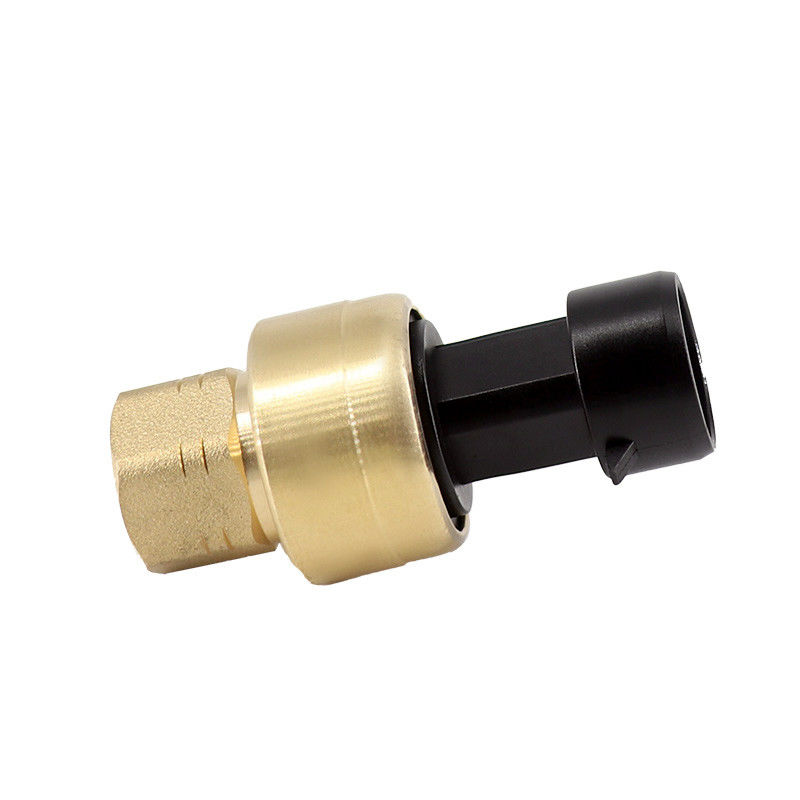

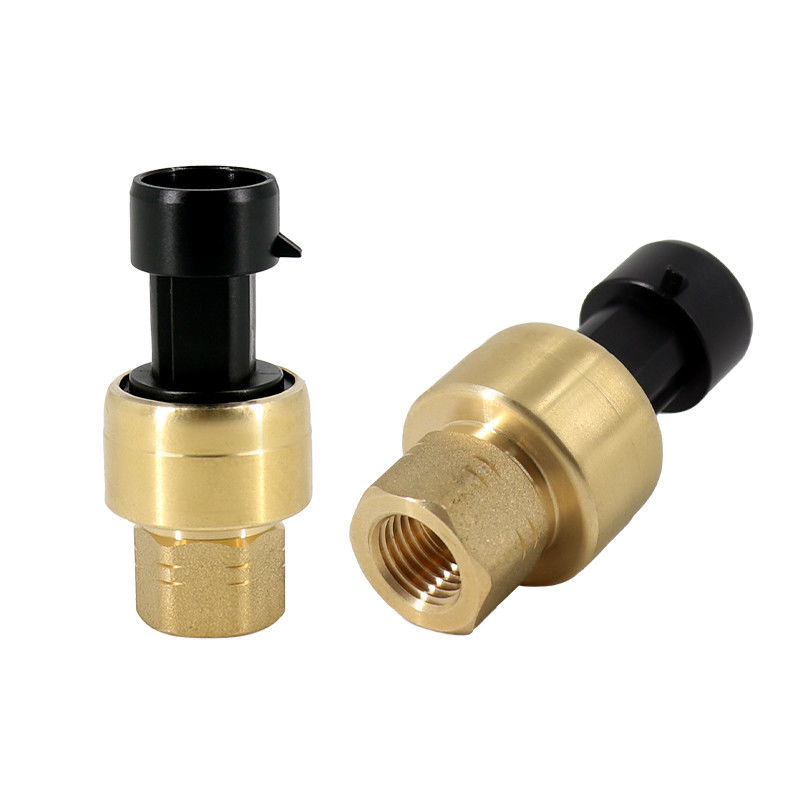

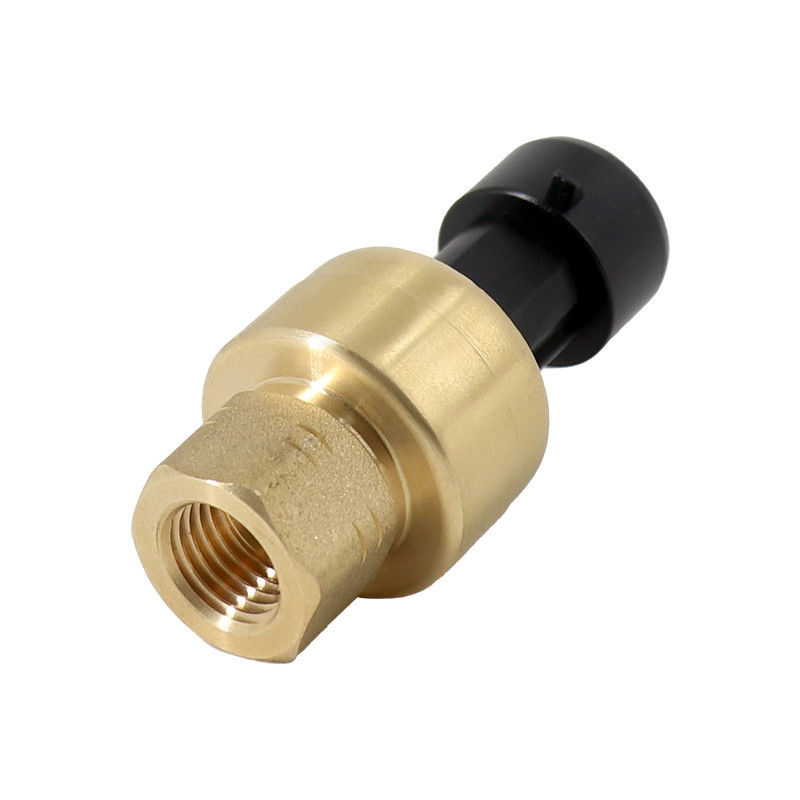

WNK85MA is a series of high performance compact pressure transmitter by using
ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has
features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its
anti-overload capacity is over 3-5 times of the range, completely solved poor
overload in small range of other sensors. In addition to general ranges of normal
sensors, its most outstanding characteristic is the positive and negative gauge
pressure function. As high output and wide range of its core ceramic capacitive
sensor, WNK85MA is especially suitable for harsh industrial environment pressure
measurement.
| Applicable media | Liquid, gas, seam |
| Pressure range | -1~50Bar |
| Pressure measurement | Gauge pressure |
| Output | 0.5-4.5V,4~20mA,0~10V |
| Power Supply | 5VDC,24VDC |
| Accuracy(lineraity, hysteresis, repeatability) | 1%FS,0.5%FS |
| Working temperature | -20~70°C |
| Storage temperature | -40~85°C |
| Temp drift(zero) | ±0.15%FS(-20~70°C) |
| Temp drift(full range) | ±0.15%FS(-20~85C) |
| Electrical connection | Pakard/ Cable Outlet |

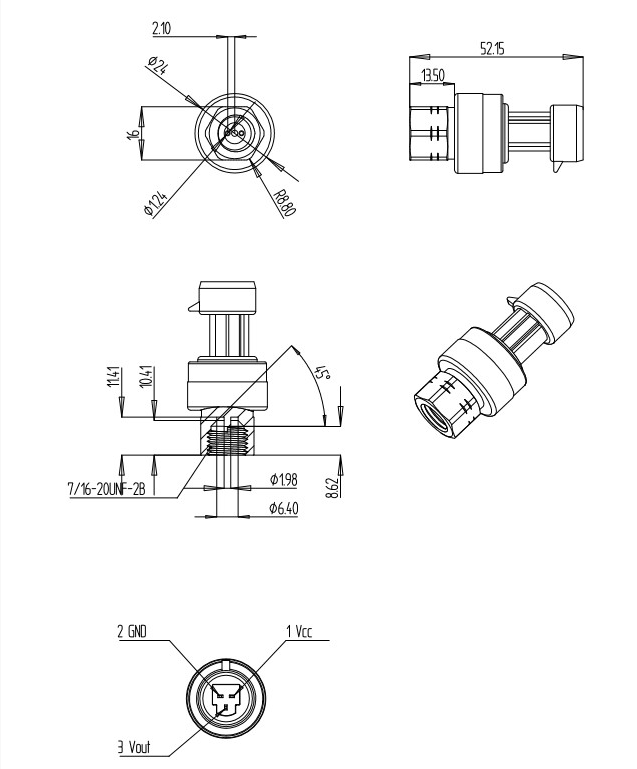

| Mechanical connection | 7/16-UNF (female) |
| Housing material | Brass |
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
