WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter

WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter

Place of Origin:

Chian

Brand Name:

WNK

Model Number:

WNK125PS

Contact Us
Request A Quote
WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter
WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter
Product Details
Mechanical Connection:
M6*1, Customized
Applicable Media:
Liquid, Gas
Pressure Type:
Gauge Pressure, Absolute Pressure
Toal Error Band:
±1.0%
Pressure Range:
0-5bar, 0~10bar, 0~20bar, 0~40bar
Power Supply:
5VDC
Output:
0.5~4.5V,I2C
Accuracy:
±1%FS
Payment & Shipping Terms
RELATED PRODUCTS
Good price 150PSI Universal Oil Air Water Pressure Sensor With Connector online Video

150PSI Universal Oil Air Water Pressure Sensor With Connector

Get Best Price
Good price WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter online Video

WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter

Get Best Price
Good price WNK 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor online Video

WNK 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor

Get Best Price
Good price WNK125P 0~40Bar Brake Oil Pressure Sensor online Video

WNK125P 0~40Bar Brake Oil Pressure Sensor

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

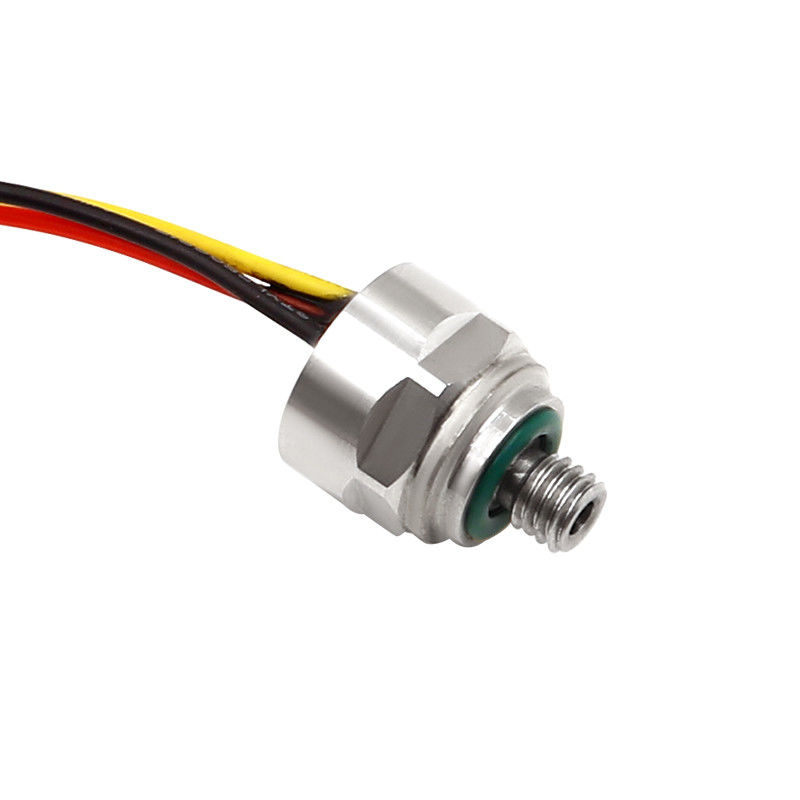

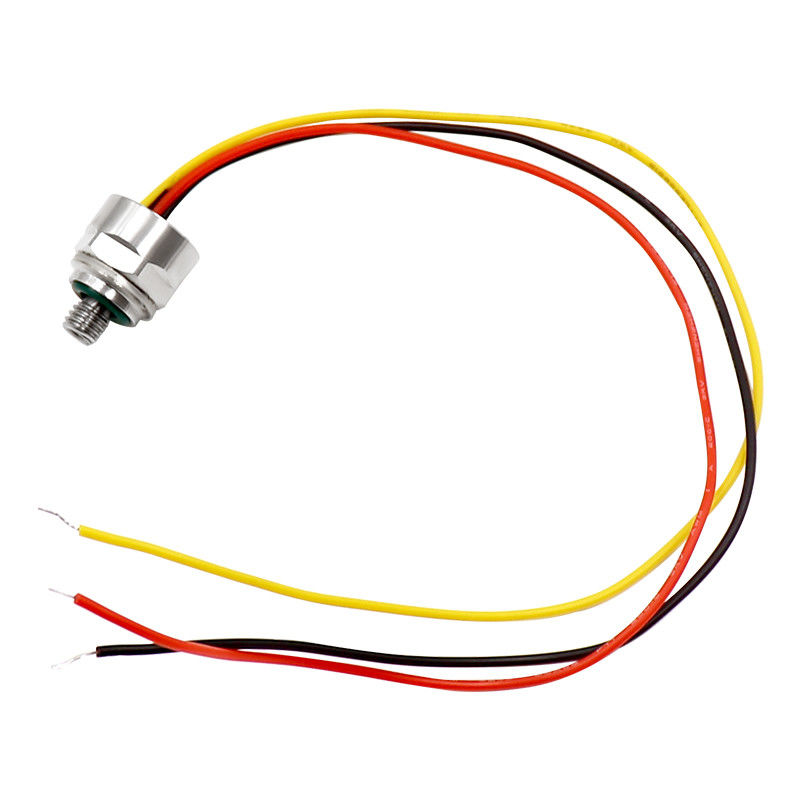

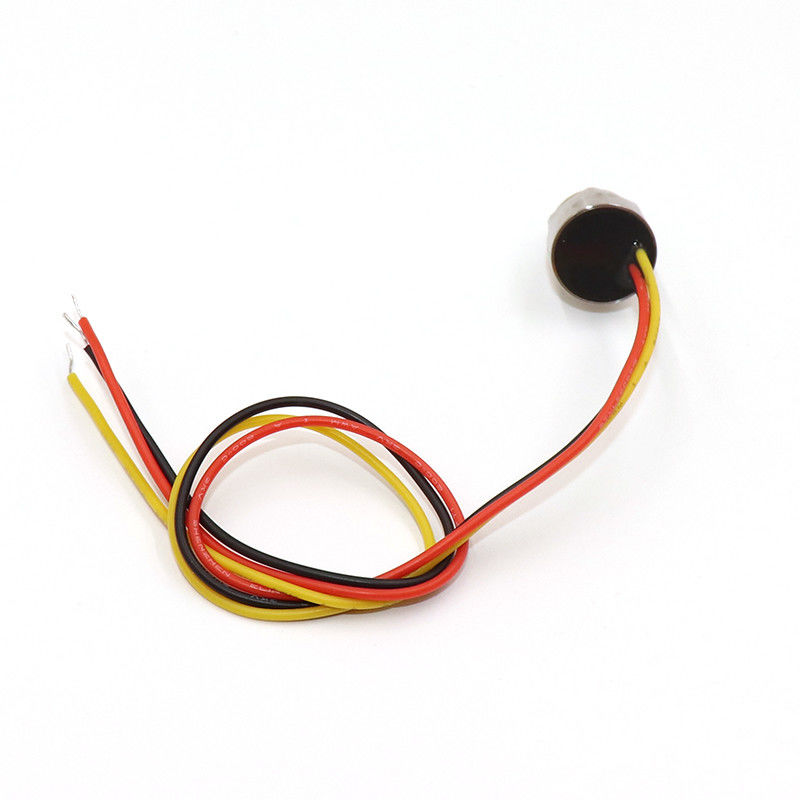

WNK125PS Pressure Sensor for smart water meter



WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter 0






WNK125PS is a diffusible silicon oil-filled pressure sensor designed for automotive use and water treatment. The element is made with a fully welded 316L diaphragm and does not require any O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liquids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in automotive,transmission, air conditioning and oil pressure measurement applications.





Applicable media
Liquid, Gas
Pressure Range
5bar,10bar,20bar,40bar
Pressure measurment
Gauge Pressure,Absolute pressure
Output
0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)
1%F.S.(Typical)
Power supply
5VDC
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
Power(electrical) connect
Customization Connector, Cable outlet
Mechanical Connection
M6*1
Housing Material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP68



Dimensions
WNK125PS Diffusible Silicon oi-fied Pressure Sensor for smart water meter 1
