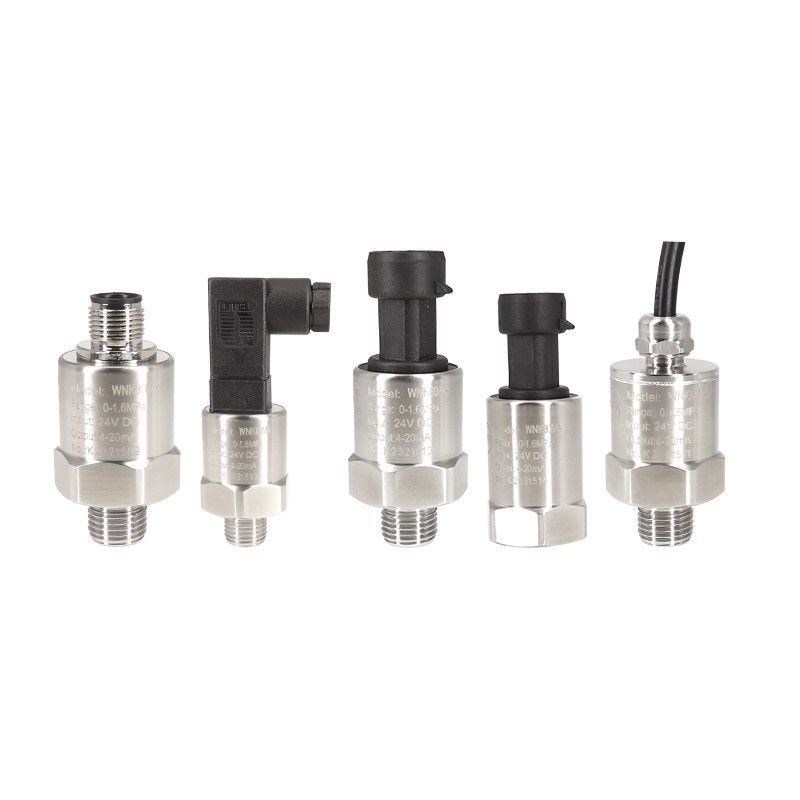

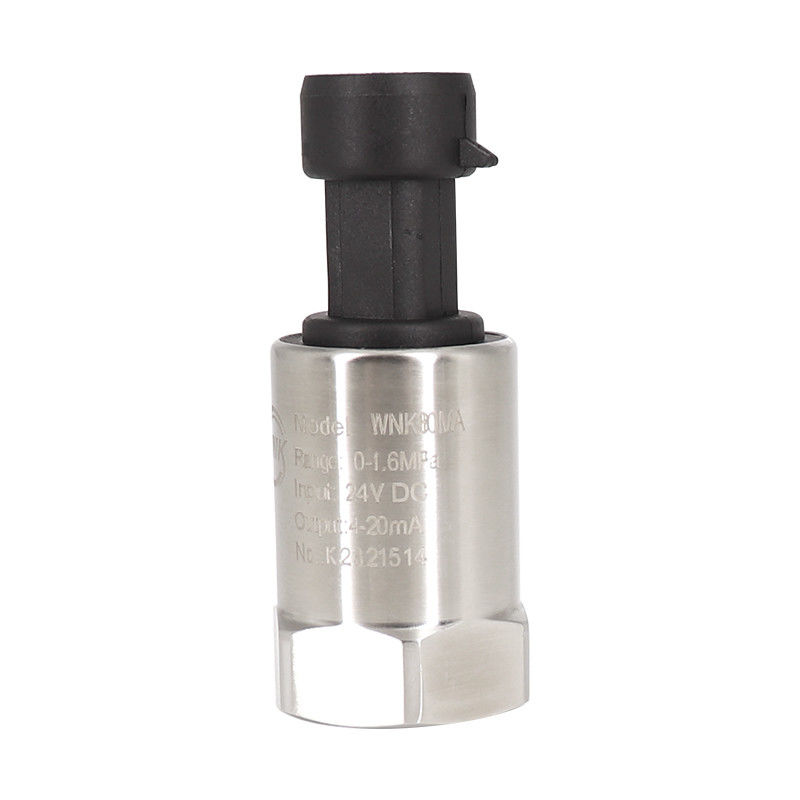

Water Air Refrigerant HVAC IOT Pressure Sensor 0--10V Output Signal 304SS Housing Material

Product Description:

The IOT Pressure Sensor is a high-performance pressure sensor transducer designed for use in a wide range of industrial and commercial applications. It is equipped with advanced technology and features that make it an ideal solution for measuring and monitoring pressure in various environments.

• Operating Temperature: The IOT Pressure Sensor has a wide operating temperature range of -40~125 ℃, making it suitable for use in extreme temperature conditions.
• Housing Material: The sensor is made with high-quality 304SS and 316SS materials, ensuring durability and resistance to corrosion.
• Pressure Type: The IOT Pressure Sensor has the ability to measure three types of pressure: gauge pressure, absolute pressure, and sealing pressure. This makes it a versatile solution for different pressure measurement needs.
• IP Rating: With an IP65 rating, the sensor is protected against dust and water ingress, making it suitable for use in harsh environments.
• Accuracy: The IOT Pressure Sensor has an accuracy of 0.5%FS, providing precise and reliable pressure readings for various applications.

The IOT Pressure Sensor utilizes ceramic pressure sensor technology, which offers high sensitivity and stability, as well as resistance to shock and vibration. This technology also allows for a compact and lightweight design, making the sensor easy to install and integrate into different systems.

The IOT Pressure Sensor is suitable for a wide range of applications, including:

• Industrial automation
• Process control
• Environmental monitoring
• HVAC systems
• Medical equipment

With its advanced features and reliable performance, the IOT Pressure Sensor is an excellent choice for any pressure measurement needs. Contact us today to learn more about this product and how it can benefit your business.

Features:

• Product Name: IOT Pressure Sensor
• Housing material: 304SS, 316SS
• Operating temperature: -40~125 ℃
• Applications: Water, Air, Refrigerant, HVAC, Automobile
• Output signal: 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
• Accuracy: 0.5%FS
• Pressure sensor transducer
• Ceramic Pressure Sensor

Technical Parameters:

• Pressure sensor transducer
• Suitable for water, air, and gas media
• Output signal options include 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, and RS485
• High accuracy of 0.5%FS
• Can measure a wide range of pressures, from 10kPa to 70MPa
• Durable housing made of 304SS or 316SS
• IP65 rated for protection against dust and water ingress
• Operates in a wide temperature range of -40~125 ℃
• Suitable for various applications, including water, air, refrigerant, HVAC, and automobile
• Cost-effective pressure transmitter with 4-20mA output signal

Applications:

This pressure sensor transducer is the latest product from WNK, a leading brand in industrial automation. Model number WNK80ma, it is designed and manufactured in China with the highest quality standards.

With an IP rating of IP65, this pressure sensor is highly resistant to dust and water, making it suitable for use in various environments. It has a wide pressure range of 10kpa to 70Mpa, allowing it to accurately measure pressure from -100kpa to 70Mpa. The housing material is made of 304SS or 316SS, ensuring durability and reliability.

The WNK IOT Pressure Sensor is a versatile product that can measure pressure for different media, including water, air, gas, and steam. This makes it suitable for a wide range of applications, such as in smart cities, environmental monitoring, and industrial processes.

One of the key features of this pressure sensor is its ability to operate in extreme temperatures, ranging from -40 to 125 ℃. This makes it suitable for use in harsh environments.

The WNK IOT Pressure Sensor is an essential tool for the Internet of Things (IOT) era. With its remote monitoring capabilities, data analysis, and real-time monitoring, it provides valuable information for efficient and effective operations. Its high precision and reliability make it a trusted product in various industries.

Imagine using this pressure sensor in an environmental monitoring system in a smart city. It can accurately measure air pressure to detect changes in weather patterns, helping city officials make informed decisions in disaster preparedness. In an industrial setting, it can monitor pressure in pipelines, ensuring the safety and efficiency of operations. In a water treatment plant, it can measure water pressure to maintain proper flow and detect any leaks.

In conclusion, the WNK IOT Pressure Sensor is a high-quality product that can be used in various applications. Its versatility, high precision, and reliability make it an indispensable tool in industrial automation, smart cities, and environmental monitoring. Trust WNK for all your pressure sensing needs.

Customization:

WNK is a leading manufacturer of customized IOT pressure sensors. Our model number WNK80ma is designed to meet your specific needs and requirements.

• Brand Name: WNK
• Model Number: WNK80ma
• Place of Origin: China
• Operating temperature: -40~125 ℃
• Measured media: Water, Air, Gas, Steam
• Output signal: 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
• Pressure range: 10kPa, -100kPa...70MPa
• IP rating: IP65

• Highly accurate and reliable pressure measurement
• Wide operating temperature range for various applications
• Compatible with different types of media including water, air, gas, and steam
• Multiple output signals for easy integration into existing systems
• Wide pressure range for versatile applications
• IP65 rating for protection against dust and water

At WNK, we understand that every application is unique and requires specific sensor specifications. That's why we offer a range of customization options to meet your specific needs:

• Pressure transmitter 4-20mA output
• Pressure transmitter with different output signals
• Pressure transmitter sensor for different media
• Customized pressure range
• Special IP rating requirements

Get in touch with us today to discuss your customization needs and get a quote for our IOT pressure sensor - WNK80ma. Our team of experts will work closely with you to design and manufacture a sensor that meets your exact requirements.
