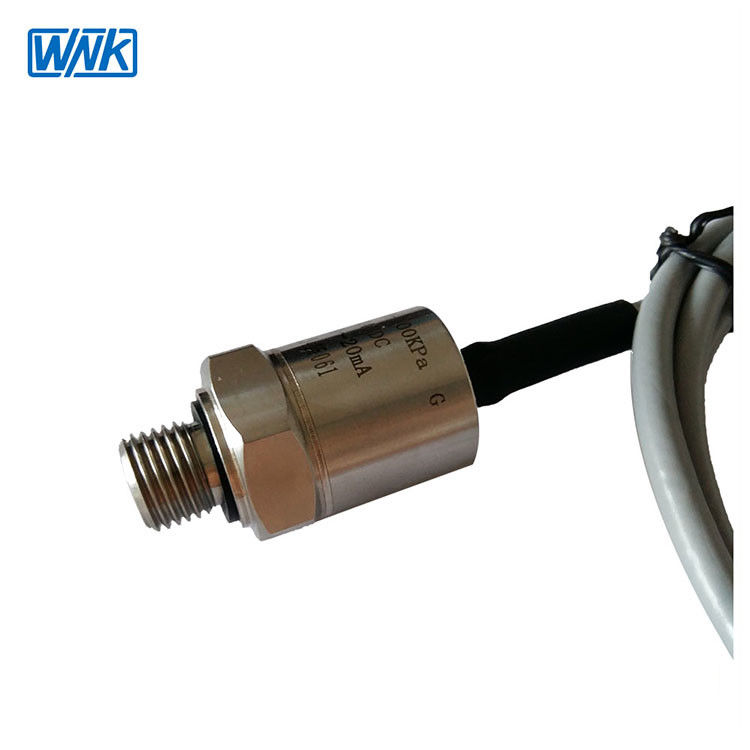

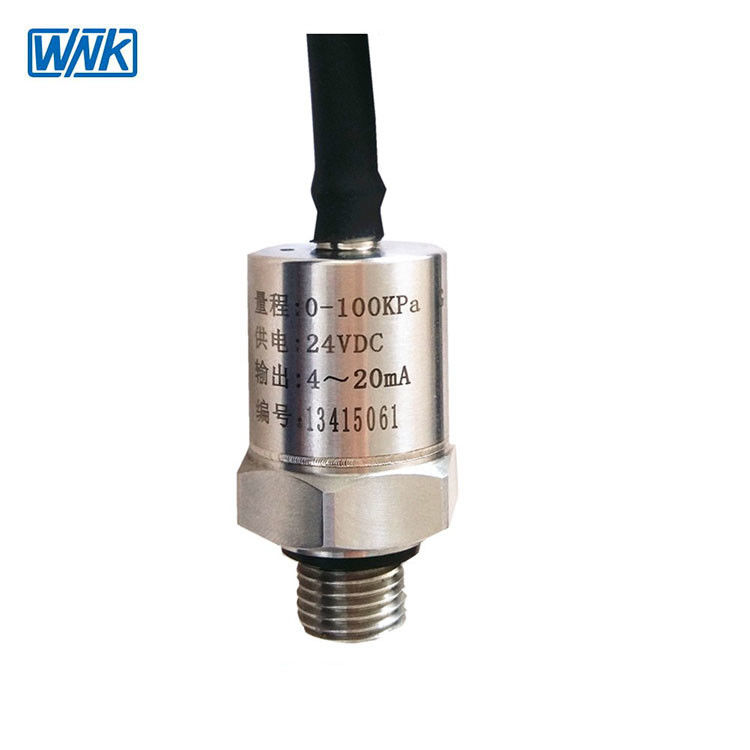

316SS Housing Material IOT Pressure Sensor And IP65 Rating With 0.5%FS Accuracy
Product Details:
| Place of Origin: | Chian |
| Brand Name: | WNK |
| Certification: | CE/ROHS |
| Model Number: | WNK81ma |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealing Pressure | Operating Temperature: | -40~125 ℃ |
|---|---|---|---|
| Output Signal: | 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485 | Pressure Range: | 10kpa, -100kpa...70Mpa |
| IP Rating: | IP65 | Accuracy: | 0.5%FS |
| Housing Material: | 304SS, 316SS | Measured Media: | Water, Air, Gas, Steam |
| High Light: | IP65 IOT Pressure Transducer,316SS Housing Material IOT Pressure Sensor,Gas IOT Pressure Sensor |
||
Product Description
Product Description:
IOT Pressure Sensor is a high-performance pressure transmitter, designed for a wide range of applications. It is capable of measuring gauge pressure, absolute pressure, and sealing pressure, with a pressure range of 10kpa, -100kpa to 70Mpa. It offers high accuracy of 0.5%FS, and can measure media such as water, air, gas, and steam. It also provides a variety of output signals, including 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, and RS485, which makes it ideal for a wide range of industrial applications. It is designed for easy installation, and can be used for both indoor and outdoor applications. The IOT Pressure Sensor is the perfect choice for any application that requires precise pressure measurement, and its versatility makes it a great choice for any pressure monitoring system.
Features:
- Product Name: IOT Pressure Sensor
- Output signal: 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485
- Accuracy: 0.5%FS
- Measured media: Water, Air, Gas, Steam
- Housing material: 304SS, 316SS
- Applications: Water Air Refrigerant HVAC, Automobile
- Special Features: Pressure Transducer, Pressure Transmitter 4-20mA, Pressure Transmitter 0-10V
Technical Parameters:
| Parameter | Value |
|---|---|
| Applications | Water, Air, Refrigerant, HVAC, Automobile |
| Measured media | Water, Air, Gas, Steam |
| Output signal | 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485 |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealing Pressure |
| Accuracy | 0.5%FS |
| Housing material | 304SS, 316SS |
| Operating temperature | -40~125℃ |
| IP rating | IP65 |
| Pressure range | 10kpa, -100kpa...70Mpa |
Applications:
The WNK Pressure Sensor (Model Number WNK80ma) is an ideal choice for many industrial applications. It is made of 304SS and 316SS with an IP65 rating for superior protection. It can measure Gauge Pressure, Absolute Pressure and Sealing Pressure with an accuracy of 0.5%FS. The pressure range is 10kpa, -100kpa...70Mpa. It is a highly reliable pressure transducer and pressure transmitter with 4-20mA output. It has excellent repeatability and a high pressure transducer accuracy.
The WNK Pressure Sensor is used in many industries, such as oil and gas, automotive, HVAC, military, and chemical processing. It is used for pressure measurement in industrial applications such as monitoring, controlling, and alarming. It can also be used in research and development, process control, and test and measurement.
The WNK Pressure Sensor is designed to be robust and durable, making it suitable for long-term, reliable operation in harsh environments. It is also easy to install and maintain, and has a wide temperature range. Additionally, it is compact and lightweight, making it easy to transport and store.
Customization:
WNK Pressure Sensor - WNK80ma is a high-performance pressure sensor that provides a wide range of pressure ranges from 10kpa, -100kpa to 70Mpa, all in one package. It is suitable for applications such as Water Air Refrigerant HVAC, Automobile, etc. It also features a wide operating temperature range of -40~125 ℃, and housing material of 304SS and 316SS.
This pressure sensor is designed to detect Gauge Pressure, Absolute Pressure, Sealing Pressure, Vacuum Pressure, and a wide range of other pressure levels. The WNK Pressure Sensor is capable of providing you with accurate and reliable readings in a wide range of pressure ranges.
