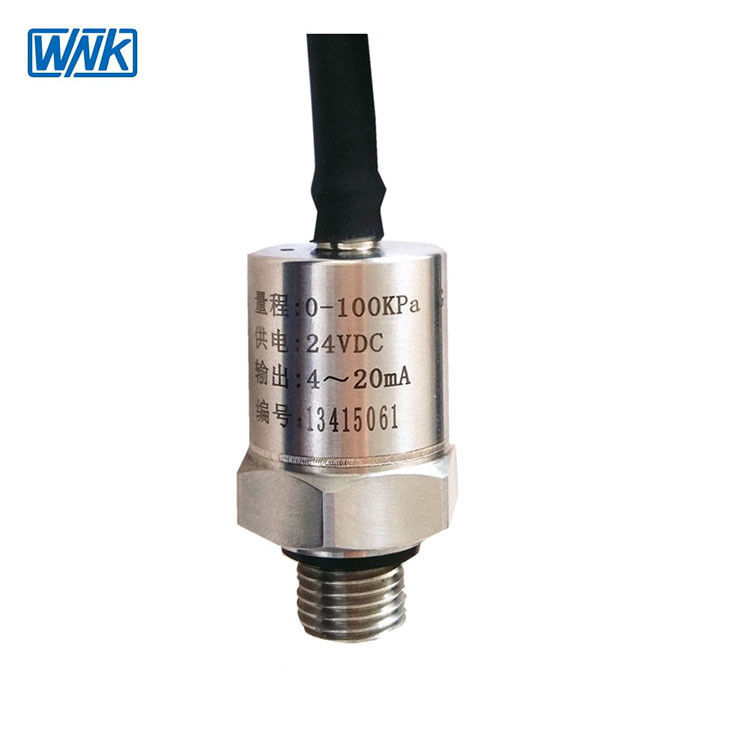

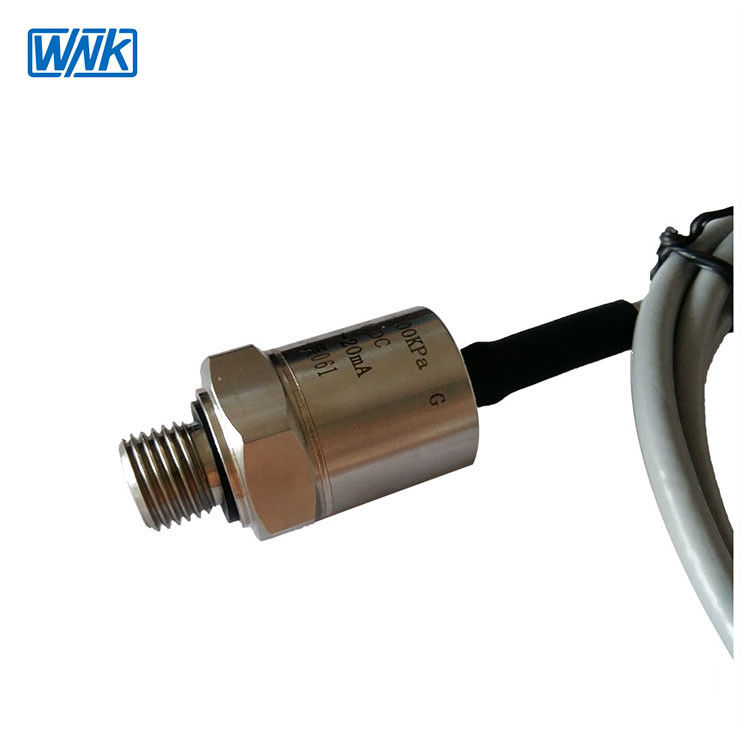

316SS IOT Pressure Sensor Transducer 0.5%FS High Accuracy Air Measurement
Product Details:
| Place of Origin: | Chian |
| Brand Name: | WNK |
| Certification: | CE/ROHS |
| Model Number: | WNK81ma |
|
Detail Information |
|||
| Applications: | Water Air Refrigerant HVAC, Automobile | Housing Material: | 304SS, 316SS |
|---|---|---|---|
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealing Pressure | IP Rating: | IP65 |
| Output Signal: | 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485 | Accuracy: | 0.5%FS |
| Operating Temperature: | -40~125 ℃ | Pressure Range: | 10kpa, -100kpa...70Mpa |
| High Light: | 316SS IOT Pressure Sensor,Air Measurement IOT Pressure Transducer,0.5%FS IOT Pressure Sensor |
||
Product Description
Product Description:
IOT Pressure Sensor is a highly accurate and reliable pressure transmitter capable of measuring pressure in a wide range of applications. It is built with a durable housing material that consists of 304SS and 316SS. This pressure sensor is designed for use in water, air, refrigerant, HVAC, and automobile applications. It is designed to operate in temperatures ranging from -40~125 ℃, and provides an accuracy of 0.5%FS. IOT Pressure Sensor has an output signal of 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, and RS485. This pressure transducer can be used as a pressure transmitter 4-20ma and a pressure sensor transducer with an output signal. IOT Pressure Sensor provides reliable and accurate measurements for a variety of applications in the field.
Features:
- Product Name: IOT Pressure Sensor
- IP rating: IP65
- Pressure range: 10kpa, -100kpa...70Mpa
- Operating temperature: -40~125 ℃
- Housing material: 304SS, 316SS
- Measured media: Water, Air, Gas, Steam
- Pressure transmitter: Yes
- Pressure sensor: Yes
- Water pressure sensor: Yes
Technical Parameters:
| Parameter | Specification |
|---|---|
| Operating temperature | -40 ~ 125 ℃ |
| Pressure range | 10kPa, -100kPa ... 70Mpa |
| Applications | Water, Air, Refrigerant, HVAC, Automobile |
| Output signal | 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485 |
| IP rating | IP65 |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealing Pressure |
| Housing material | 304SS, 316SS |
| Accuracy | 0.5% FS |
| Measured media | Water, Air, Gas, Steam |
Applications:
The WNK80ma Pressure Sensor by WNK is a high-accuracy and reliable pressure sensor transducer. The pressure range of the sensor is from 10kpa to 70Mpa, with a wide operating temperature of -40 to 125℃. It is also rated IP65, making it suitable for both indoor and outdoor use. This pressure sensor offers a variety of output signal options, with 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C and RS485 all being supported. It is suitable for measuring water, air, gas and steam. The ceramic pressure sensor provides excellent accuracy and stability in any application and is the ideal choice for industrial, commercial and home applications.
Customization:
- Brand Name: WNK
- Model Number: WNK80ma
- Place of Origin: China
- Operating temperature: -40~125℃
- Accuracy: 0.5%FS
- Applications: Water Air Refrigerant HVAC, Automobile
- Measured media: Water, Air, Gas, Steam
- Housing material: 304SS, 316SS
Introducing the WNK Pressure Sensor WNK80ma, a ceramic pressure sensor that provides accurate and reliable pressure sensing for a variety of applications. Featuring a pressure transmitter 4-20ma that offers a wide range of accuracy up to 0.5%FS, it is ideal for measuring a variety of fluids like water, air, gas and steam. The WNK80ma is a robust pressure sensor that is built with quality 304SS and 316SS housing material that is designed for an operating temperature of -40~125℃.
Support and Services:
Our technical support team is available 24/7 to provide assistance with our IOT Pressure Sensor. We offer services ranging from installation and setup to troubleshooting and maintenance.
Our technicians are available to assist with installation and setup of the IOT Pressure Sensor. We can provide remote assistance or send a technician to your location to ensure a successful installation.
If you encounter any technical difficulties, our support team is available to help. We can provide remote assistance or send a technician to your location to troubleshoot any issues you may be having with the IOT Pressure Sensor.
Regular maintenance of the IOT Pressure Sensor is essential to ensure its proper functioning. Our technicians are available to perform routine maintenance on your device, including cleaning, calibration, and software updates.
