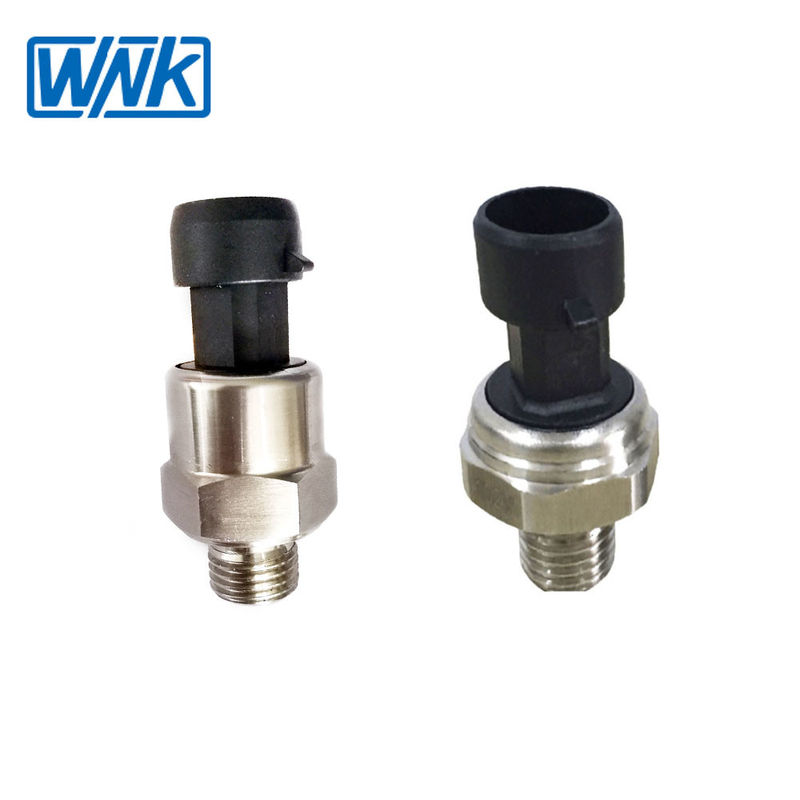

Gas Measured IOT Pressure Sensor 0.5%FS Accuracy For Automobile Applications
Product Details:
| Place of Origin: | Chian |
| Brand Name: | WNK |
| Certification: | CE/ROHS |
| Model Number: | WNK81ma |
|
Detail Information |
|||
| Accuracy: | 0.5%FS | IP Rating: | IP65 |
|---|---|---|---|
| Measured Media: | Water, Air, Gas, Steam | Output Signal: | 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485 |
| Housing Material: | 304SS, 316SS | Operating Temperature: | -40~125 ℃ |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealing Pressure | Pressure Range: | 10kpa, -100kpa...70Mpa |
| High Light: | Automobile IOT Pressure Sensor,Gas Measured IOT Pressure Sensor,0.5%FS Accuracy IOT Pressure Transmitter |
||
Product Description
Product Description:
IOT Pressure Sensor is a pressure transducer with IP65 protection rating, and wide operating temperature range from -40~125 ℃, to accurately measure water, air, gas and steam. With 0.5%FS accuracy, this pressure transducer has multiple output signal options including 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C and RS485. It is specifically designed for pressure sensor applications. This Pressure sensor transducer is perfect for industrial automation measurement and control system.
Features:
- Product Name: IOT Pressure Sensor
- Housing material: 304SS, 316SS
- Accuracy: 0.5%FS
- Output signal: 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485
- Pressure range: 10kpa, -100kpa...70Mpa
- Operating temperature: -40~125 ℃
- Keywords: Pressure transmitter 4-20ma, Pressure transducer, Pressure sensor
Technical Parameters:
| Parameter | Specifications |
|---|---|
| Output signal | 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485 |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealing Pressure |
| Housing material | 304SS, 316SS |
| Measured media | Water, Air, Gas, Steam |
| Pressure range | 10kpa, -100kpa...70Mpa |
| Operating temperature | -40~125 ℃ |
| Accuracy | 0.5%FS |
| IP rating | IP65 |
| Applications | Water Air Refrigerant HVAC, Automobile |
| Keywords | Vacuum Pressure Sensor, Pressure sensor transducer, pressure transducer |
Applications:
The WNK80ma pressure sensor, made by WNK from China, is a state-of-the-art ceramic pressure transducer designed for extreme environments. Its performance and accuracy are guaranteed by its operating temperature range of -40~125 ℃ and its IP65 rating, making it ideal for applications in water, dust, and temperature-sensitive environments. This pressure transducer offers a wide range of output signals, including 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, and RS485, and is capable of measuring a variety of pressure types including gauge pressure, absolute pressure, and sealing pressure. Moreover, the accuracy of the sensor is 0.5%FS. As a result, the WNK80ma is the perfect choice for industrial and commercial applications that require reliable and accurate pressure sensing.
Customization:
- Brand Name: WNK
- Model Number: WNK80ma
- Place of Origin: China
- IP rating: IP65
- Housing material: 304SS, 316SS
- Measured media: Water, Air, Gas, Steam
- Operating temperature: -40~125 ℃
- Pressure range: 10kpa, -100kpa...70Mpa
Our WNK IOT Pressure Sensor is a reliable and accurate sensor for measuring vacuum and pressure. It is suitable for water, air, gas, and steam applications, with a pressure range of 10kpa to 70Mpa and an operating temperature of -40℃ to 125℃. This sensor is made with high-quality 304SS or 316SS housing materials and is IP65 rated for excellent protection against dust and water.
