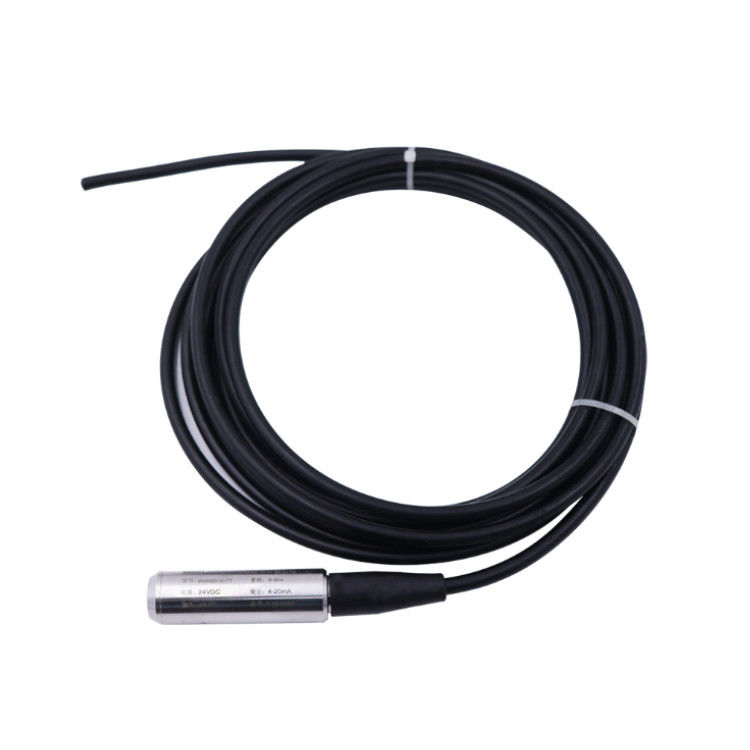

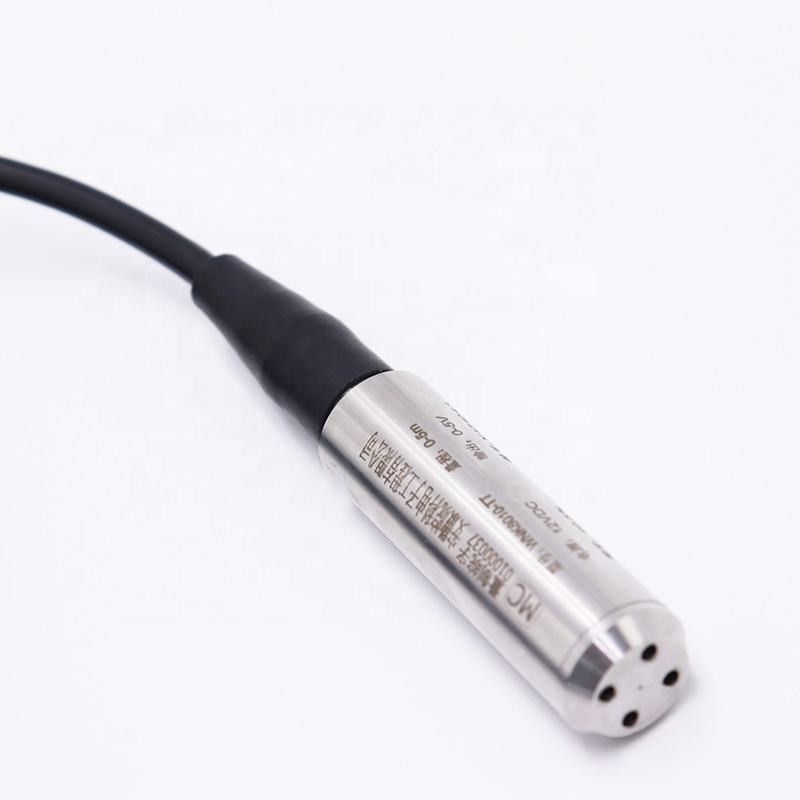

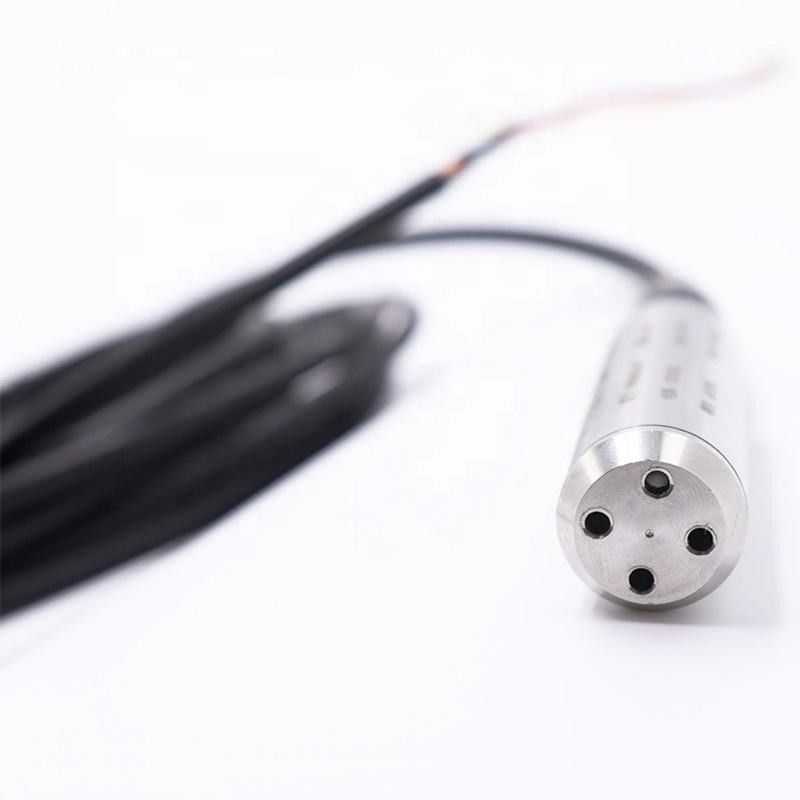

Stainless Steel Submersible Level Sensor With Wide Temperature Range And 4-20mA Output
Product Details:
| Place of Origin: | China |
| Brand Name: | WNK |
| Model Number: | WNK8010 |
|
Detail Information |
|||
| Housing Material: | Stainless Steel | Overload: | 150% Of Sensor Range |
|---|---|---|---|
| Application: | For Tank, Pool,river, Underwater Etc Open Vessel Measurement | Temperature Range: | -20℃~+80℃ |
| Stability: | 0.25%FS/ Year | Output: | 4~20mA, 0-10mA, 0-5V, 1-5V, Customization |
| Product Name: | Submersible Level Transmitter/water Level Sensor | Cable Material: | Polyvinyl Fluoride, PTFE |
| High Light: | Commercial Submersible Level Sensor,Pool Submersible Level Sensor,PTFE Cable Submersible Level Transmitters |
||
Product Description
Product Description:
The Submersible Level Sensor is a reliable, accurate and robust level transmitter designed to measure the height of liquids in submersible tanks. The sensor is made of high-grade stainless steel for durability, and it has a power supply of 24VDC. The stability of the sensor is 0.25%FS/ Year, and with an IP68 protection class, it is designed to work in harsh environments. The output of the sensor can be 4~20mA, 0-10mA, 0-5V, 1-5V and can be customized to meet the specific needs of the application. It has been used in hydraulic level transmitters and submersible level transmitters to measure the level of liquids in tanks and containers. The Submersible Level Sensor is a reliable and robust solution for a wide range of applications.
Features:
- Product Name: Submersible Level Transmitter/water Level Sensor
- Output: 4~20mA, 0-10mA, 0-5V, 1-5V, Customization
- Overload: 150% Of Sensor Range
- Application: For Tank, Pool,river, Underwater Etc Open Vessel Measurement
- Cable material: Polyvinyl Fluoride, PTFE
Technical Parameters:
| Parameter | Value |
|---|---|
| Temperature Range | -20℃~+80℃ |
| Stability | 0.25%FS/ Year |
| Output | 4~20mA, 0-10mA, 0-5V, 1-5V, Customization |
| Protection Class | IP68 |
| Housing Material | Stainless Steel |
| Cable Material | Polyvinyl Fluoride, PTFE |
| Product Name | Submersible Level Transmitter/water Level Sensor |
| Overload | 150% Of Sensor Range |
| Power Supply | 24VDC |
| Application | For Tank, Pool,river, Underwater Etc Open Vessel Measurement |
Applications:
The Submersible Level Transmitter/Water Level Sensor from WNK is the perfect solution for applications in which reliable monitoring and control of liquid level is required. This cost-effective device Model Number WNK8010 is made of stainless steel and comes with an IP68 protection class. This ensures a secure and reliable operation even in the most extreme conditions. The Submersible Level Sensor has an operating power supply of 24VDC and offers different output options such as 4~20mA, 0-10mA, 0-5V, 1-5V and Customization. This China-made product is a great choice for all kinds of applications including the industrial, agricultural, residential, and commercial sectors. It is also great for monitoring and controlling liquid levels in chemical tanks, oil tanks, wells, and other liquids.
Support and Services:
We offer comprehensive technical support and service for our Submersible Level Sensor products. Our technical team is here to help you with product selection, installation, maintenance and troubleshooting.
Product Selection
Our team of experts can help you select the best Submersible Level Sensor product for your application. We will work with you to understand your specific needs and recommend the best product for your environment.
Installation
We provide detailed installation instructions for all of our Submersible Level Sensor products. Our team is available to answer any questions you may have during the installation process.
Maintenance
We offer regular maintenance and calibration services for all of our Submersible Level Sensor products. Our team is available to answer any questions you may have about maintenance and calibration.
Troubleshooting
Our team of experts is available to help you troubleshoot any problems you may have with your Submersible Level Sensor products. We offer detailed troubleshooting guides and are available to answer any questions you may have.
Packing and Shipping:
The Submersible Level Sensor should be packaged securely in a cardboard box and placed inside a shipping carton. The shipping carton should be lined with a protective foam material to prevent the product from being damaged during shipping. The product should be labeled clearly with a shipping label that includes the destination address and tracking information.
