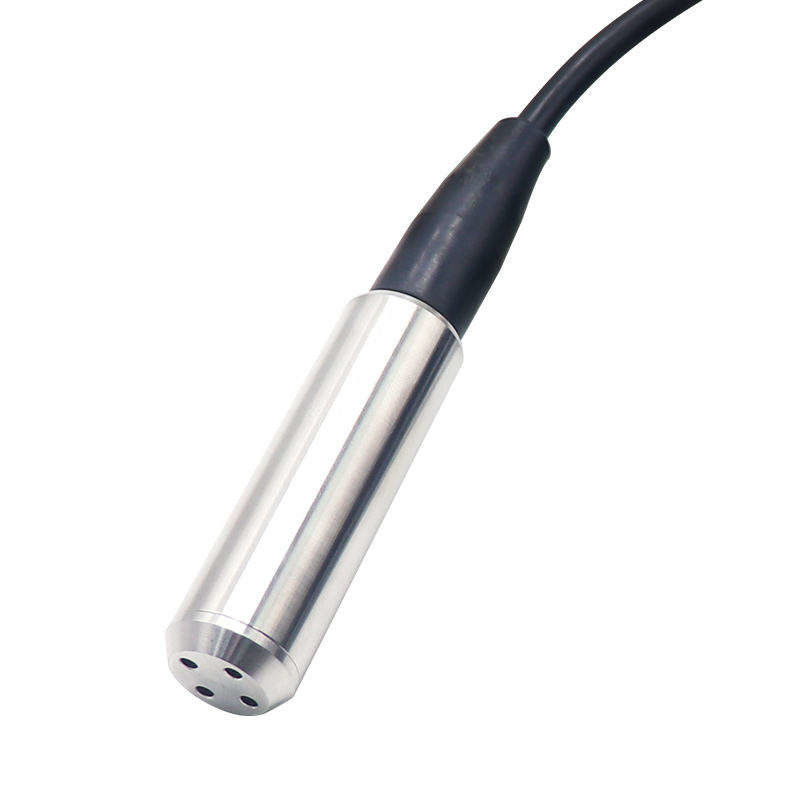

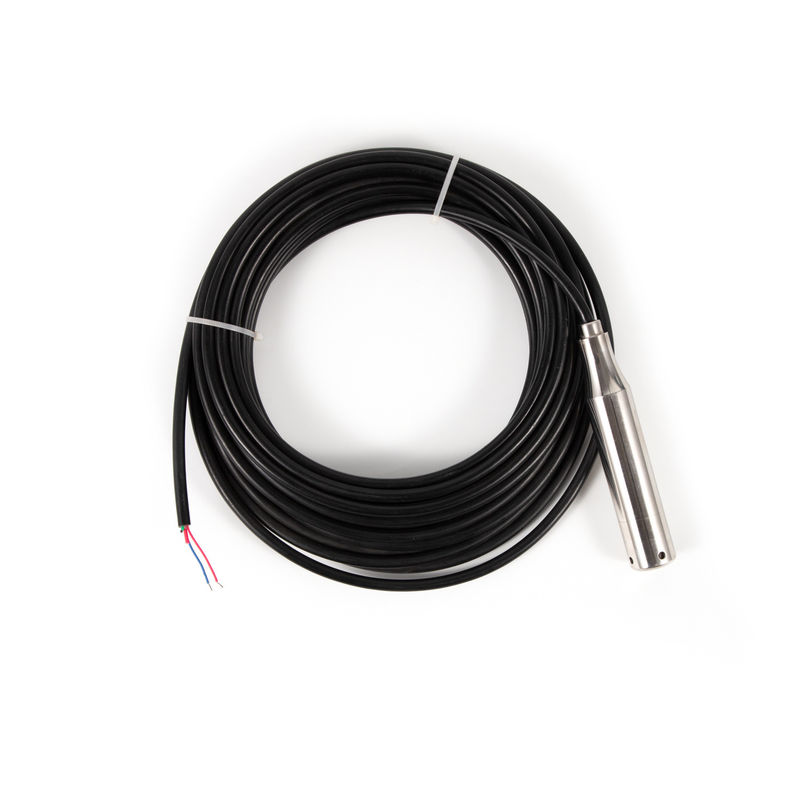

24VDC Submersible Level Sensor 0 - 10mA Output Temperature Range -20℃~+80℃
Product Details:
Place of Origin: | China |
Brand Name: | WNK |
Certification: | CE/ROHS |
Model Number: | WNK8010 |
Detail Information |
|||
Output: | 4~20mA, 0-10mA, 0-5V, 1-5V, Customization | Product Name: | Submersible Level Transmitter/water Level Sensor |
---|---|---|---|
Stability: | 0.25%FS/ Year | Cable Material: | Polyvinyl Fluoride, PTFE |
Overload: | 150% Of Sensor Range | Housing Material: | Stainless Steel |
Power Supply: | 24VDC | Temperature Range: | -20℃~+80℃ |
High Light: | Polyvinyl Fluoride Submersible Water Level Sensor,10mA Submersible Level Transmitters,Liquid Submersible Level Sensor |
Product Description
Product Description:
The Submersible Level Sensor is a highly accurate and reliable hydraulic level transmitter designed to measure liquid level in submerged tanks, wells, and other water sources. It can measure water levels up to 5 meters deep with a temperature range of -20℃ to +80℃. It is constructed from robust material such as polyvinyl fluoride and PTFE to ensure long-term operation in extreme environmental conditions. The sensor is available in a variety of output formats, including 4-20mA, 0-10mA, 0-5V, 1-5V, and customization, for compatibility with various monitoring systems. It also offers excellent stability to ensure a consistent performance of 0.25%FS/year. This makes the Submersible Level Transmitter/Water Level Sensor an ideal choice for measuring liquid level in various industrial and commercial applications.
Features:
- Submersible Level Sensor / Hydrostatic Level Sensor: Submersible level transmitters that are used to measure the level of water or other liquids.
- Power Supply: 24VDC
- Cable Material: Polyvinyl Fluoride, PTFE
- Overload: 150% of Sensor Range
- Temperature Range: -20℃~+80℃
Technical Parameters:
Property | Description |
---|---|
Product Name | Submersible Level Transmitter/water Level Sensor |
Housing material | Stainless Steel |
Stability | 0.25%FS/ Year |
Power Supply | 24VDC |
Temperature Range | -20℃~+80℃ |
Cable material | Polyvinyl Fluoride, PTFE |
Overload | 150% Of Sensor Range |
Output | 4~20mA, 0-10mA, 0-5V, 1-5V, Customization |
Applications:
WNK8010 Submersible Level Sensor, from WNK brand, is a reliable Hydrostatic Level Sensor, specially designed for underwater applications. This Submersible Level Transmitter is with overload of 150% of sensor range and working temperature range from -20℃~+80℃. Its stability is 0.25%FS/ Year and output can be customized, such as 4~20mA, 0-10mA, 0-5V, 1-5V. Moreover, it requires 24VDC power supply. So WNK8010 is the best choice for submersible level sensor.
Customization:
- Brand Name: WNK
- Model Number: WNK8010
- Place of Origin: China
- Overload: 150% Of Sensor Range
- Temperature Range: -20℃~+80℃
- Power Supply: 24VDC
- Product Name: Submersible Level Transmitter/water Level Sensor
- Cable material: Polyvinyl Fluoride, PTFE
Support and Services:
We provide technical support and service for our Submersible Level Sensor range. Our technical team can provide assistance with product selection, installation, maintenance and trouble-shooting.
We offer a comprehensive technical support package that includes:
- In-depth product knowledge and advice
- Technical support via phone, email and live chat
- Onsite installation and training
- Remote diagnosis and troubleshooting
- Firmware and software updates
- Spare parts and repairs
If you have any queries or require technical support for your Submersible Level Sensor, please contact our Technical Support team.
