24VDC Submersible Level Transmitter Water Level Sensor For Industrial Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | WNK |
| Model Number: | WNK8010 |
|
Detail Information |
|||
| Cable Material: | Polyvinyl Fluoride, PTFE | Temperature Range: | -20℃~+80℃ |
|---|---|---|---|
| Output: | 4~20mA, 0-10mA, 0-5V, 1-5V, Customization | Housing Material: | Stainless Steel |
| Stability: | 0.25%FS/ Year | Product Name: | Submersible Level Transmitter/water Level Sensor |
| Power Supply: | 24VDC | Overload: | 150% Of Sensor Range |
| High Light: | 10mA Submersible Level Sensor,24VDC Submersible Water Level Sensor,Industrial Submersible Water Level Transmitter |
||
Product Description
Product Description:

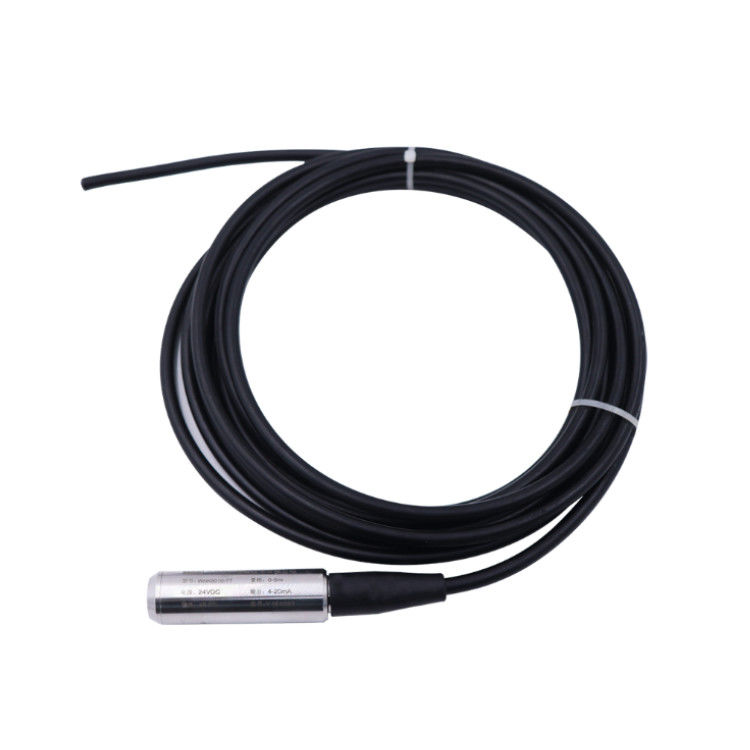

The Submersible Level Transmitter (also known as Hydrostatic Level Sensor or Hydraulic Level Transmitter) is a stainless steel-housed instrument that is designed to measure the level of liquid in a contained space. It is equipped with a temperature range of -20℃ to +80℃ and an overload capacity of 150% of the sensor range. This device is capable of outputting 4~20mA, 0-10mA, 0-5V, 1-5V, as well as customizations, allowing for flexibility when connecting to other devices. The Submersible Level Transmitter is an ideal choice for those looking to accurately measure liquid level in various applications.
Features:
- Product Name: Submersible Level Sensor
- Output: 4~20mA, 0-10mA, 0-5V, 1-5V, Customization
- Temperature Range: -20℃~+80℃
- Housing material: Stainless Steel
- Cable material: Polyvinyl Fluoride, PTFE
- Power Supply: 24VDC
Technical Parameters:
| Attributes | Details |
|---|---|
| Product Name | Submersible Level Transmitter/Water Level Sensor |
| Cable material | Polyvinyl Fluoride, PTFE |
| Stability | 0.25%FS/ Year |
| Housing material | Stainless Steel |
| Power Supply | 24VDC |
| Overload | 150% Of Sensor Range |
| Output | 4~20mA, 0-10mA, 0-5V, 1-5V, Customization |
| Temperature Range | -20℃~+80℃ |
Applications:
WNK Submersible Level Transmitter (Model Number: WNK8010) is a great choice for a variety of submerged applications. Made in China, this level transmitter can be powered by 24VDC, and is designed to withstand overloads up to 150% of the sensor range. The cable material of this level transmitter is made of Polyvinyl Fluoride (PTFE) for durability, while the housing is made of stainless steel for long-lasting use. This water level sensor can be used for a variety of applications, such as measuring liquid level in tanks and reservoirs, monitoring groundwater, and more.
Customization:
Brand Name: WNK
Model Number: WNK8010
Place of Origin: China
Product Name: Submersible Level Transmitter/Water Level Sensor
Overload: 150% of Sensor Range
Power Supply: 24VDC
Housing material: Stainless Steel
Output: 4~20mA, 0~10mA, 0~5V, 1~5V, Customization
WNK specializes in providing customized Submersible Level Sensor, Water Level Sensor, Submersible Level Transmitter, and Hydraulic Level Transmitter to customers all over the world.
Support and Services:
Our technical support and services for Submersible Level Sensor includes:
- Onsite installation and setup
- Free troubleshooting and technical advice
- Free replacement parts within 24 hours
- Free software updates and upgrades
- Free maintenance and repair services
- Online customer support
FAQ:
- Q:What is the brand name of the Submersible Level Sensor?
A: The brand name of the Submersible Level Sensor is WNK. - Q:What is the model number of the Submersible Level Sensor?
A:The model number of the Submersible Level Sensor is WNK8010. - Q:Where is the Submersible Level Sensor manufactured?
A:The Submersible Level Sensor is manufactured in China. - Q:What is the application of Submersible Level Sensor?
A:The Submersible Level Sensor is used to measure liquid level in various applications, such as water tanks, wells, and other submerged containers. - Q:What are the features of the Submersible Level Sensor?
A:The Submersible Level Sensor has features such as high accuracy, fast response time, reliable performance, and an IP68 waterproof rating.
