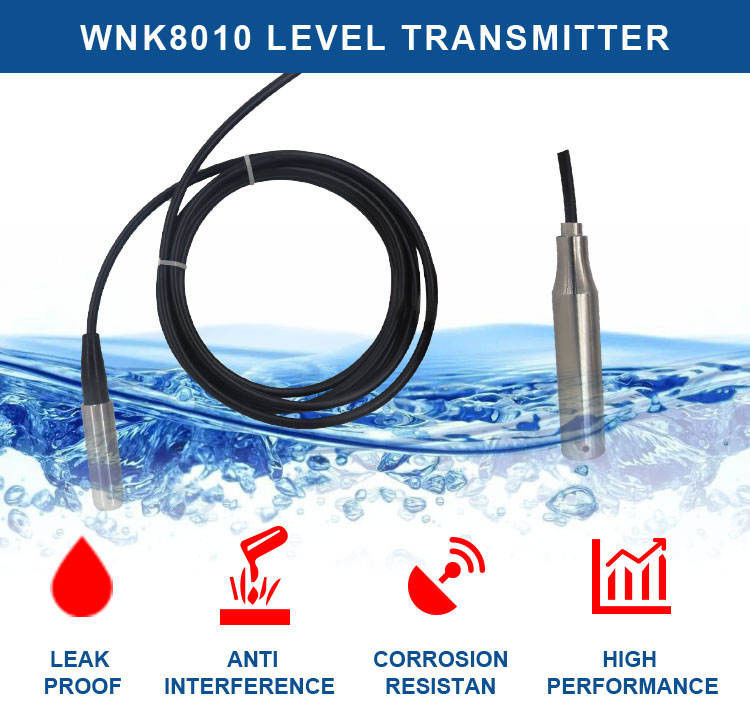

24VDC Submersible Level Sensor With PTFE Cable And 1 - 5V Output
Product Details:
| Place of Origin: | China |
| Brand Name: | WNK |
| Certification: | CE/ROHS |
| Model Number: | WNK8010 |
|
Detail Information |
|||
| Output: | 4~20mA, 0-10mA, 0-5V, 1-5V, Customization | Product Name: | Submersible Level Transmitter/water Level Sensor |
|---|---|---|---|
| Housing Material: | Stainless Steel | Power Supply: | 24VDC |
| Stability: | 0.25%FS/ Year | Overload: | 150% Of Sensor Range |
| Temperature Range: | -20℃~+80℃ | Cable Material: | Polyvinyl Fluoride, PTFE |
| High Light: | 5V Submersible Level Sensor,PTFE Cable Submersible Level Sensor,Stainless Steel Submersible Level Transmitters |
||
Product Description
Product Description:
The Submersible Level Sensor is designed for accurate measuring of liquid levels in submerged tanks. It is a hydrostatic level transmitter that is capable of measuring level from 0-100m with 0.25% FS/Year stability. It is made of durable stainless steel for the housing and polyvinyl fluoride and PTFE for the cable. It has a wide temperature range from -20℃ to +80℃ and can be powered by 24VDC. This submersible level transmitter is ideal for applications that require reliable and accurate liquid level measurement in deep tanks.
Features:
- Product Name: Hydraulic Level Transmitter/Water Level Sensor
- Temperature Range: -20℃~+80℃
- Power Supply: 24VDC
- Output: 4~20mA, 0-10mA, 0-5V, 1-5V, Customization
- Overload: 150% Of Sensor Range
Technical Parameters:
| Property | Description |
|---|---|
| Product Name | Submersible Level Transmitter/Water Level Sensor |
| Cable material | Polyvinyl Fluoride, PTFE |
| Housing material | Stainless Steel |
| Power Supply | 24VDC |
| Output | 4~20mA, 0-10mA, 0-5V, 1-5V, Customization |
| Overload | 150% Of Sensor Range |
| Temperature Range | -20℃~+80℃ |
| Stability | 0.25%FS/ Year |
Applications:
The Submersible Level Sensor from WNK with the model number WNK8010 is an ideal solution for a variety of applications. This product is made in China and has a temperature range of -20℃~+80℃. It is powered by a 24VDC power supply and has an output of 4~20mA, 0-10mA, 0-5V, 1-5V, or customization. The overload is 150% of the sensor range.
The Submersible Level Sensor is used in many applications, such as water level measurements in river, lake, and sea; level measurement in tanks, wells, and boreholes; and liquid level measurement in chemical plants, wastewater treatment, and power plants. It is also used in applications such as monitoring the water levels of rivers, lakes, and oceans; controlling the flow rate of reservoirs; and monitoring the water levels of ground water wells.
The Submersible Level Sensor is also used in the detection of liquid level in a variety of industries, including oil and gas, chemical, and food processing. It is suitable for measuring the level of liquids in a wide range of temperatures and pressures, making it ideal for a variety of applications. It is also suitable for measuring the level of liquids in applications with a wide range of viscosities.
Customization:
- Brand Name: WNK
- Model Number: WNK8010
- Place of Origin: China
- Temperature Range: -20℃~+80℃
- Stability: 0.25%FS/ Year
- Output: 4~20mA, 0-10mA, 0-5V, 1-5V, Customization
- Housing material: Stainless Steel
- Product Name: Submersible Level Transmitter/water Level Sensor
WNK8010 Hydrostatic Level Sensor is a water level sensor that comes with a stainless steel housing, temperature range of -20℃~+80℃ and stability of 0.25%FS/ Year. It can output 4~20mA, 0-10mA, 0-5V, 1-5V and customization. It is perfect for water level monitoring and measurement.
Support and Services:
We offer technical support and service for our Submersible Level Sensor products. Our team of experienced engineers are available to provide assistance with product selection, installation, troubleshooting, and operational guidance.
We provide technical support for all our Submersible Level Sensor products. Our technical experts can provide assistance with product selection, installation, troubleshooting, and operational guidance.
We offer a comprehensive service program for our Submersible Level Sensor products. Our service team provides on-site installation, repair, and maintenance services, as well as calibration and certification services. Our team is available 24/7 to provide assistance in the event of an emergency.
FAQ:
- Q1: What is the brand name of this Submersible Level Sensor?
- A1: The brand name of this Submersible Level Sensor is WNK.
- Q2: What is the model number of this Submersible Level Sensor?
- A2: The model number of this Submersible Level Sensor is WNK8010.
- Q3: Where is this Submersible Level Sensor made?
- A3: This Submersible Level Sensor is made in China.
- Q4: What is the accuracy of this Submersible Level Sensor?
- A4: The accuracy of this Submersible Level Sensor is 0.25%FS.
- Q5: Does this Submersible Level Sensor support remote sensing?
- A5: Yes, this Submersible Level Sensor supports remote sensing.
