Mini Analog I2C Pressure Sensor With 1 4 NPT Quick Connection
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK811-1 |
Payment & Shipping Terms:
| Price: | $10.00 - $35.00/Pieces |
|---|---|
| Packaging Details: | each product in one inner paper box with protection |
| Supply Ability: | 2000 Set/Sets per Week |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Measured Media: | Liquid, Gas And Steam | Output Signals: | 4~20mA, 1-5V, 0-5V, 0-10V, 0.5V-4.5V, I2C |
| Accuracy: | 0.2%F.S, 0.5%F.S | Pressure Range: | -100kPa~0, 0-10kPa, 100kPa, 1MPa, 5MPa, 10MPa, 20MKPa, 50MPa |
| Protection Class: | IP65 | Housing Material: | 304SST |
| Power Supply: | 24VDC/12VDC/5VDC/3.3V | Electrical Connection: | Cable Outlet, Connector |
| Port: | Shanghai Port | ||
| High Light: | Quick Connection Analog Pressure Sensor,Quick Connection I2C Pressure Sensor,Mini I2C Pressure Sensor |
||
Product Description

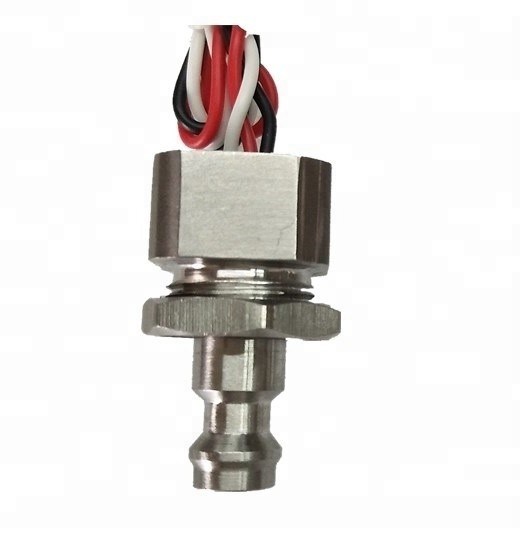

Mini Analog I2C Electronic Pressure Sensor With 1 4 NPT Quick Connection
Mini Analog Digital 0.5-4.5V I2C Pressure Sensor With 1/4NPT Quick Connection
miniature piezoresistive pressure transducer, engine oil pressure transmitter
WNK811 is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and piezoresistive diffused silicon oil filled pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 3 times of the range, and with a wide of abosulte and gauge pressure.
With high output and wide ranges, WNK811 also provide with wide range customization.
Product Spec
|
WNK811 diffused silicon oil filled pressure sensor with customization
|
|
|
|
Applicable media
|
Liquid, Gas
|
|
|
|
-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa(bar and psi unit available)
|
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
|
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
|
Power supply
|
24VDC/12VDC/5VDC/3.3V
|
|
|
Compensation temperature
|
-20~85ºC
|
|
|
Ambient temperature
|
-40~125ºC
|
|
|
Working temperature
|
-40~125ºC
|
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
|
power(electrical) connect
|
Customization Connector, Cable outlet
|
|
|
Mechanical connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
|
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
|
Protection
|
IP65
|
|
About us
Related Products
Our Quality Control
Our product quality is guaranteed
1. 100% of all products we do temperature compensation and aging test before shipment.
2. Our products are all calibrated and shipped with certificate.
