WNK81mA Pressure sensor is mainly used in water supply pipeline, gas supply pipeline measurement, hydraulic system measurement, such as booster cylinder, supercharger, gas-liquid booster cylinder, gas-liquid supercharger, pressure machine, compressor, air conditioning and refrigeration equipment and other fields.
 |
3.3V WNK Miniature Pressure Transducer For Water Supply Pipeline
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK81mA-g |
Payment & Shipping Terms:
| Price: | $20.00 - $28.00/Pieces |
|---|---|
| Packaging Details: | Each piece into individual carton with foam protection<br>Or as per client's request;<br> Diffused Silicon Pressure Sensor Transducer Used In Water Hydraulic Systems |
| Supply Ability: | 30000 Piece/Pieces per Month Pressure Sensor |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Accuracy: | 0.5% , 1.0% FS | Output Signal: | 4- 20mA, 0.5-4.5V, 0-5V, 1-5V, I2c, Other |
| Operating Temperature: | -40~85 ℃ | Pressure Range: | -100Kpa ~ 60MPa |
| Power Supply: | 24VDC 12VDC 5VDC 8-30VDC | Material: | 304 SS, 316L |
| Media: | Water, Liquid, Gas, Steam, Oil, Lubricant | IP Rating: | IP65, IP67 |
| Type: | Gauge, Absolute, Seal, Vacuum | Product Name: | 4- 20mA Miniature Pressure Transducer Sensor I2C Output 3.3V Supply |
| Port: | Shanghai/Ningbo/Shenzhen/Guangzhou | ||
| High Light: | Miniature Pressure Transducer 3.3V,WNK Miniature Pressure Transducer,3.3V Mini Pressure Transducer |
||
Product Description

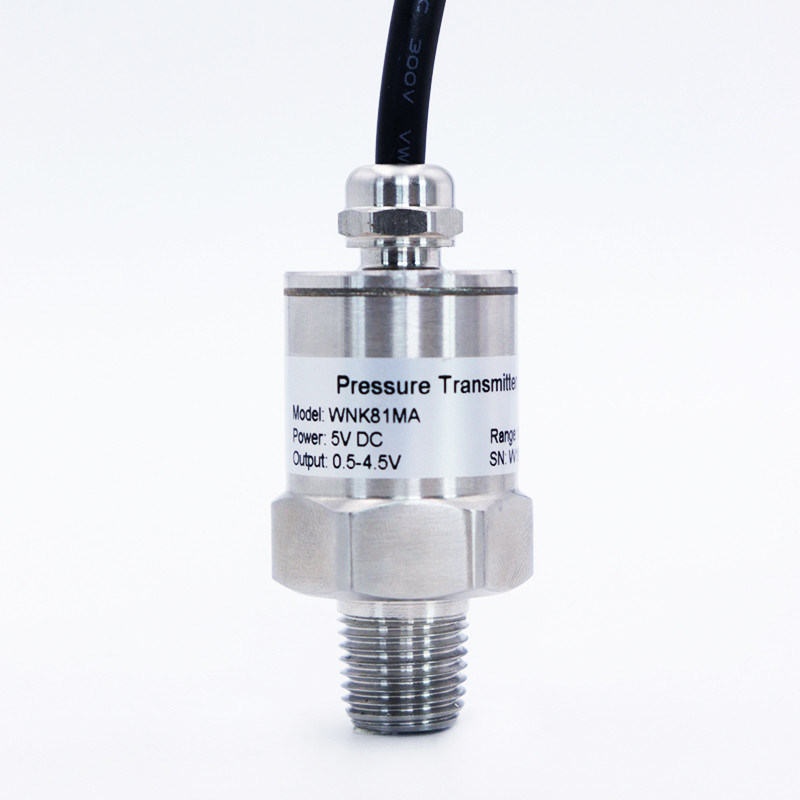

WNK 3.3V Miniature Pressure Transducer For Water Supply Pipeline
4- 20mA Miniature Pressure Transducer Sensor I2C Output 3.3V Supply
Pressure sensor is mainly used to complete the closed-loop control of force in hydraulic system. When the control spool suddenly moves, in a very short time will form several times the system operating pressure peak pressure. In typical walking machinery and industrial hydraulics, any pressure sensor can be quickly destroyed if such extreme conditions are not considered in the design.It is necessary to use impact resistant pressure sensor. There are two main methods for pressure sensor to achieve impact resistance. One is strain exchange type chip, the other is external coils.In addition, there is another reason that the pressure sensor is also subjected to continuous pressure pulsation from the hydraulic pump.
|
Product Name
|
4- 20mA Miniature Pressure Transducer Sensor I2C Output 3.3V Supply
|
|
|
|
|||
|
Pressure Type
|
Gauge pressure, sealing pressure, absolute pressure
|
|
|
|
|||
|
Measure Range
|
0-20kPa~60MPa
|
|
|
|
|||
|
Output
|
0.5-4.5v, 4-20mA, I2C, 0-5V, 0-10V, customize
|
|
|
|
|||
|
Accuracy
|
0.5%FS, 1%FS
|
|
|
|
|||
|
Compensation Temperature
|
-20…70℃
|
|
|
|
|||
|
Ingress
|
IP65/IP67
|
|
|
|
|||
|
Working Temperature
|
-45 to 85℃,
|
|
|
|
|||
|
Electrical Connection
|
Packard, M12*1, Cable outlet, Mini DIN43650, Customize
|
|
|
|
|||
|
Process Connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, Customize
|
|
|
|
|||
Product Features
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
