4-20mA 1-5V Output Flush Diaphragm Pressure Transmitter IP65

4-20mA 1-5V Output Flush Diaphragm Pressure Transmitter IP65

1-5V Flush Diaphragm Pressure Transmitter

IP65 Flush Pressure Transmitter

4-20mA Flush Diaphragm Pressure Transmitter

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK805

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Pressure Range:
0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa
Comprehensive Accuracy:
0.1, 0.25, 0.5, 1.0
Output:
4~20mA; 0~20mA; 0~10mA; 0~20V; 1~5V
Protection Class:
IP65
Housing Material:
Ss316
Approvals:
Ex-proof, ISO9001-2015
Pressure Type:
Gauge, Absolute, Vacuum, Negative Pressure
OEM Service:
OEM, ODM, Customization Available
Application:
Oil&gas, Petrol, Petrochemical, Chemical Industry
MOQ:
1
Port:
Shanghai
Highlight:

1-5V Flush Diaphragm Pressure Transmitter

,

IP65 Flush Pressure Transmitter

,

4-20mA Flush Diaphragm Pressure Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$45.00 - $65.00/Pieces
Packaging Details
paper carton or as per clients' requirement
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Piece/Pieces per Month
Product Description

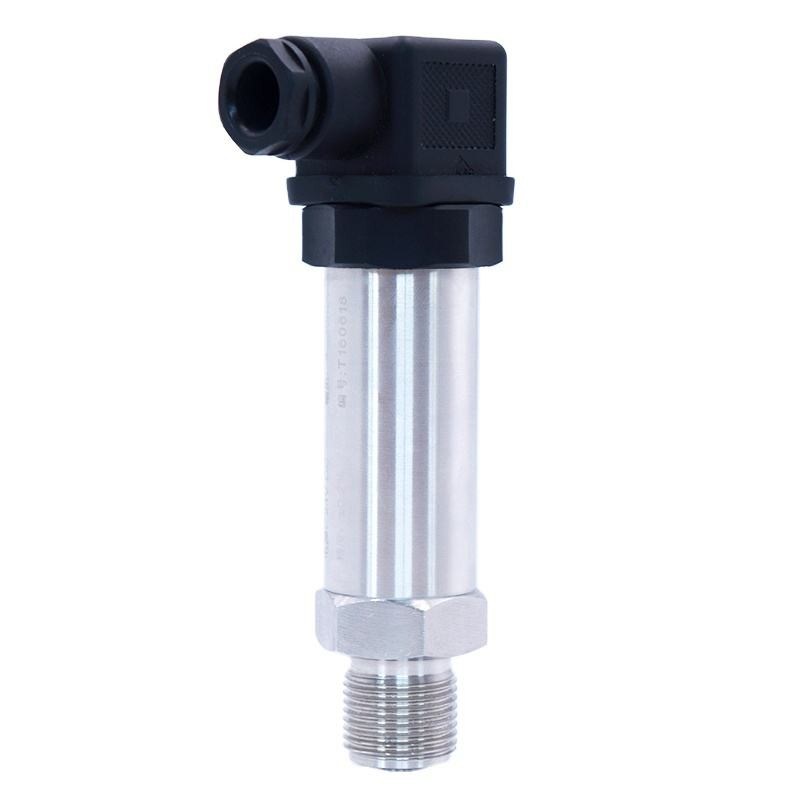

4-20mA 1-5V Output Flush Diaphragm Pressure Transmitter



WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably, it is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.


WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range
0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
Output signals
4~20mA, 1-5V for optional
Accuracy
0.2, 0.5
Stability
±0.25% FS/year
Zero drift
50% of full range span.
Max overload
200% of sensor range
Display
LED (Optional)
Housing material
304 stainless steel
Mechanical connection
M20×1.5; 1/2-18NPT, 1/4NPT, Customize; Diaphragm, Clamp

Power supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Process temperature
-40~85℃
